For other models with the same name, see SR750 (disambiguation).

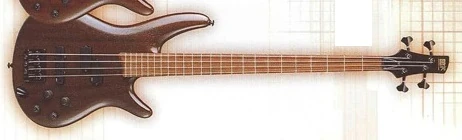

2001 SR750-WNF
SR750 Walnut Flat (more images) Red copyright sprite

The SR750 is a Soundgear series solid body electric bass model introduced by Ibanez for 2001. It was produced in Japan by FujiGen as part of the Standard line.

The SR750 features a double-cutaway mahogany body bolted to a wenge and bubinga neck with a 24-fret rosewood fingerboard with white side dots position markers and a black headstock. Components include an Accu-cast B20 fixed bridge with 19mm string spacing, and a pair of IBZ DX-P/J pickups channeled through a Vari-mid 3-band EQ, a plastic nut, black hardware and Die-cast tuning machines.

The SR750F is a related fretless model. The SR755 is a five string model.

The SR750 was discontinued after 2003.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR750
Model name: SR750
Year(s) offered: 2001–2003
Sold in: Japan
Made in: Japan
Price: MSRP: JP¥ Template:Formatum:70000 (2001) / JP¥ Template:Formatum:75000 (2002–2003)
Finish(es): Transparent Black Flat (TKF) / Walnut Flat (WNF)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Accu-cast B20 (19mm string spacing)
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
SR4
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White side dots
Frets:
24 / medium nickel silver
Nut:
Black plastic (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
Ibanez DX-J bridge passive
Neck pickup:
Ibanez DX-P neck passive
Electronics:
2001–2002: Vari-Mid 3-band EQ
2003: Vari-mid 3LC 3-Band EQ
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / mid-freq. control
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

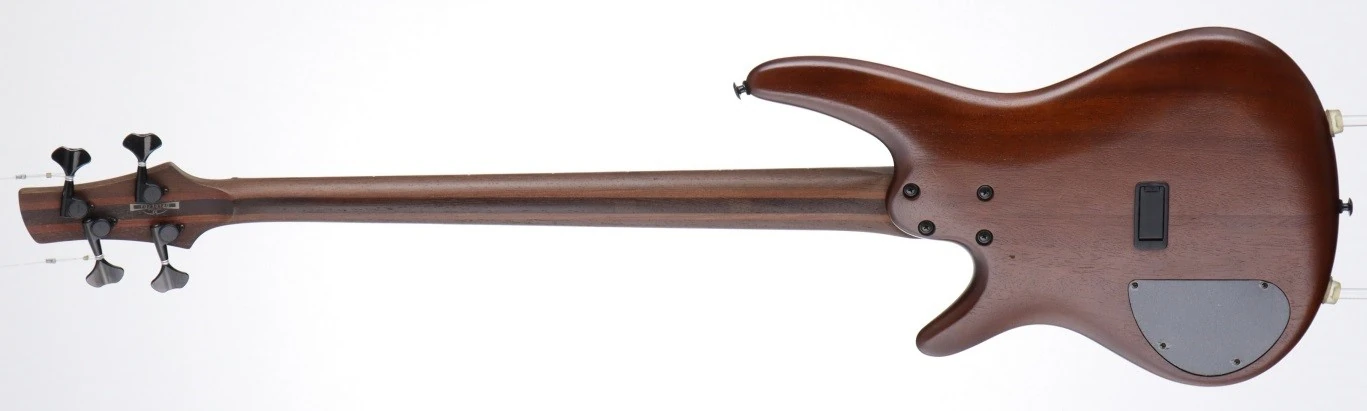

SR750-WNF Rear
Ibanez SR750-WNF ( Rear: Mahogany body bolted to a 5-piece wenge/ bubinga SR4 and Die-cast tuning machines ) Red copyright sprite
Other available finishes and details

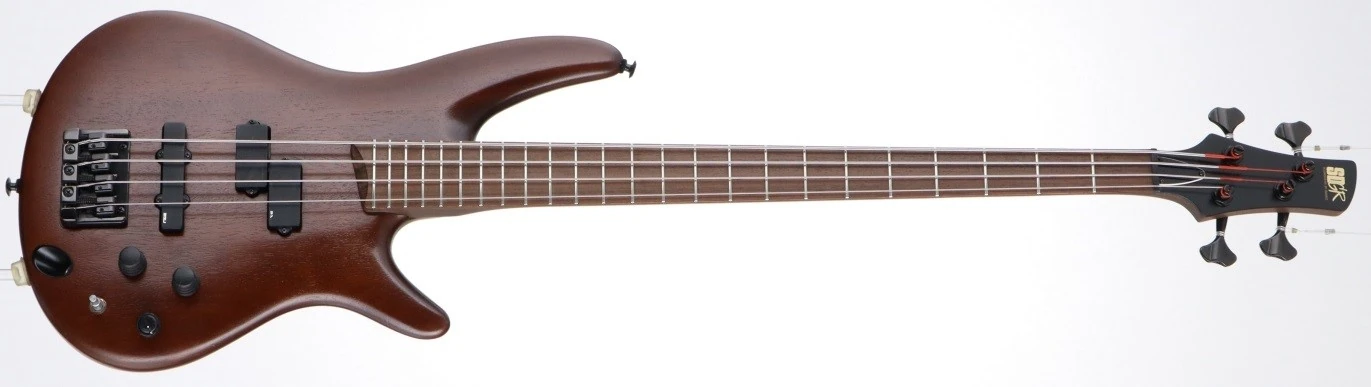

2003 SR750-TKF
Transparent Black Flat

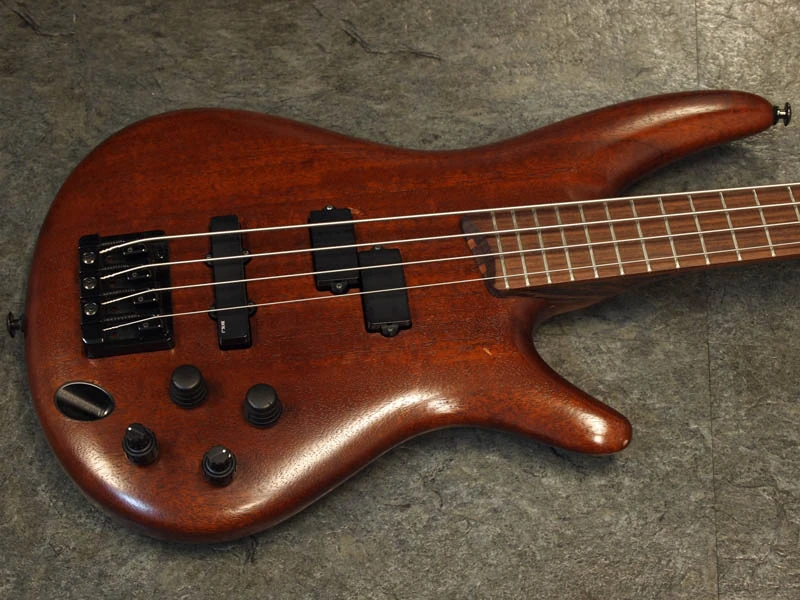

SR750-WNF front
Front of body
