SR7100

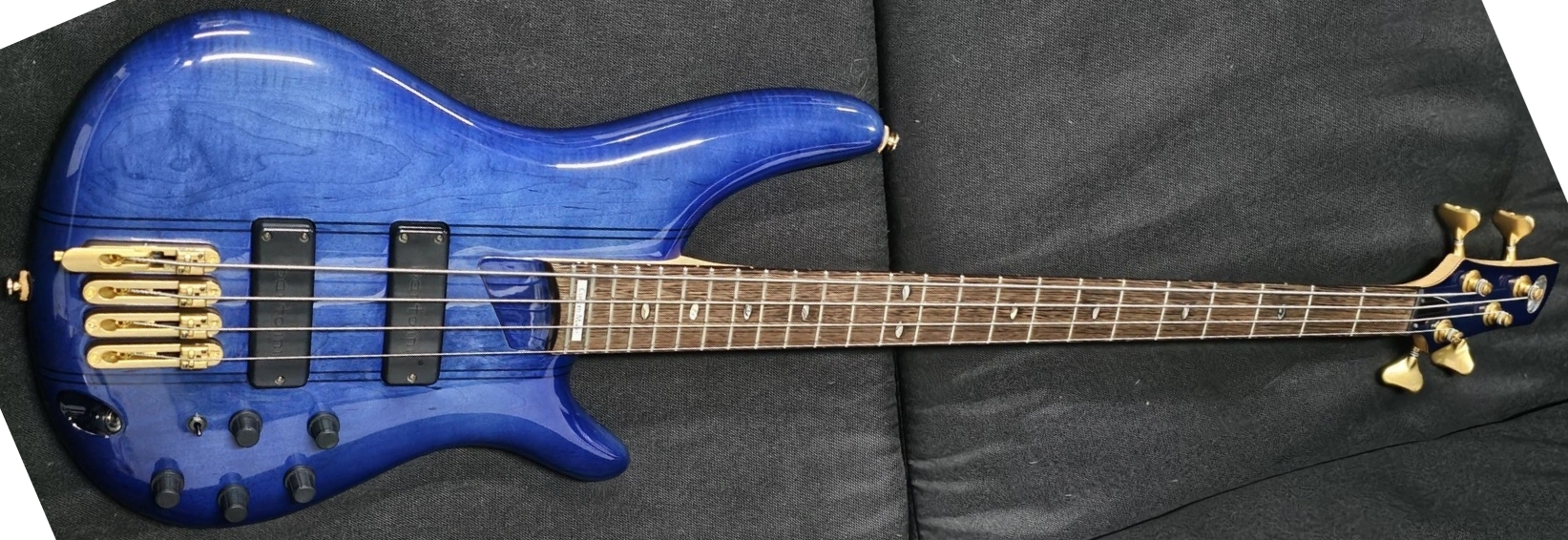

SR7100 Vintage Blue Sunburst (more images)

The SR7100 is a Soundgear series solid body electric bass model introduced by Ibanez for 1997. It was produced in Japan by FujiGen as part of the upscale Prestige line.

The SR7100 features a double-cutaway maple body bolted to a SR maple neck with a 24-fret wenge fingerboard with abalone ovals position markers with "Custom Made" inlay at 24^th fret and a matching headstock. Components include a Mono-rail bridge with D-tuner on the bass ("E") string and 19mm string spacing, and a pair of Bartolini humbucking pickups channeled through a Bartolini preamp with 3-band EQ, a plastic nut, gold hardware and deluxe Gotoh 510 tuning machines.

The SR7105 is a related five string model.

The SR7100 was offered only in 1997.

Specifications[]

Related content: Prestige series | Soundgear series |

Specifications for SR7100

Model name: SR7100

Year(s) offered: 1997

Sold in: Europe

Made in: Japan

Finish(es): Vintage Blue Sunburst (VBS) / Vintage Orange Sunburst (VOS)

Body

Body type:
Solid

Body material:
Maple

Neck joint:
AANJ

Bridge:
Mono-rail w/ D-tuner (19mm string spacing)

Knob style:
Plastic

Hardware color:
Gold

Neck

Neck type:
SR4 Prestige

Neck material:
3-piece maple

Scale length:
864mm / 34"

Fingerboard material:
Wenge

Fingerboard inlays:
Abalone ovals w/ "Custom Made" at 24^th fret

Frets:
24 / medium

Nut:
Black plastic (45mm)

Machine heads:
Gotoh GBS510

String gauge (factory):
.045/.065/.085/.105/.130

Factory tuning:
1G,2D,3A,4E (E standard)

Electronics

Pickup configuration:
HH

Bridge pickup:
Bartolini Custom bridge soapbar (H) passive

Neck pickup:
Bartolini Custom neck soapbar (H) passive

Electronics:
Bartolini 3-band EQ

Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / Mid-frequency toggle (250hz, 600hz)

Battery:
9V

Output jack:
¼" stereo (side mounted)

About this table

Additional details

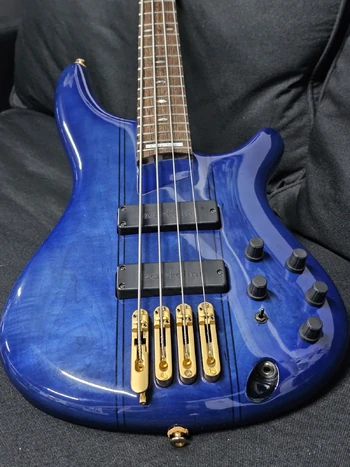

Body front (VBS finish)

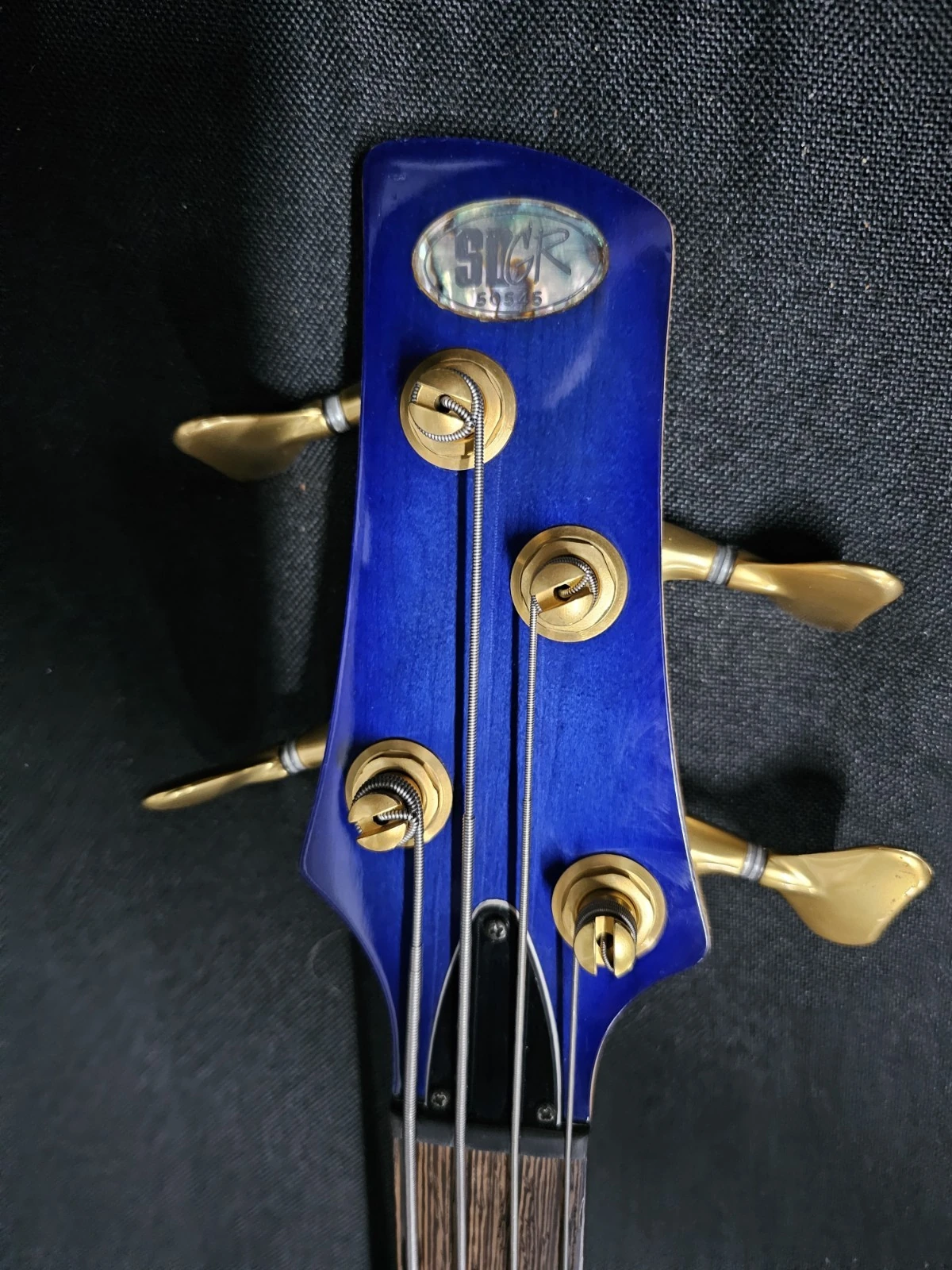

Headstock (VBS finish)

24^th fret inlay

An image for this article is missing!
An image of the SR7100 Vintage Orange Sunburst (VOS) is wanted for this article. You can help by finding, uploading and adding it!

Sources[]

1997 Europe catalog (pp. 36-37)
