SR700 (2008–2015)

For other models with the same name, see SR700 (disambiguation).

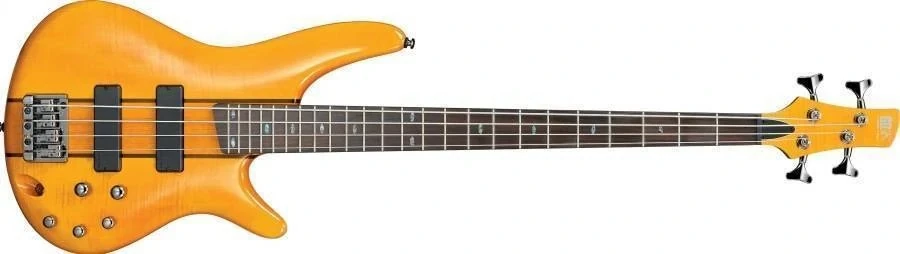

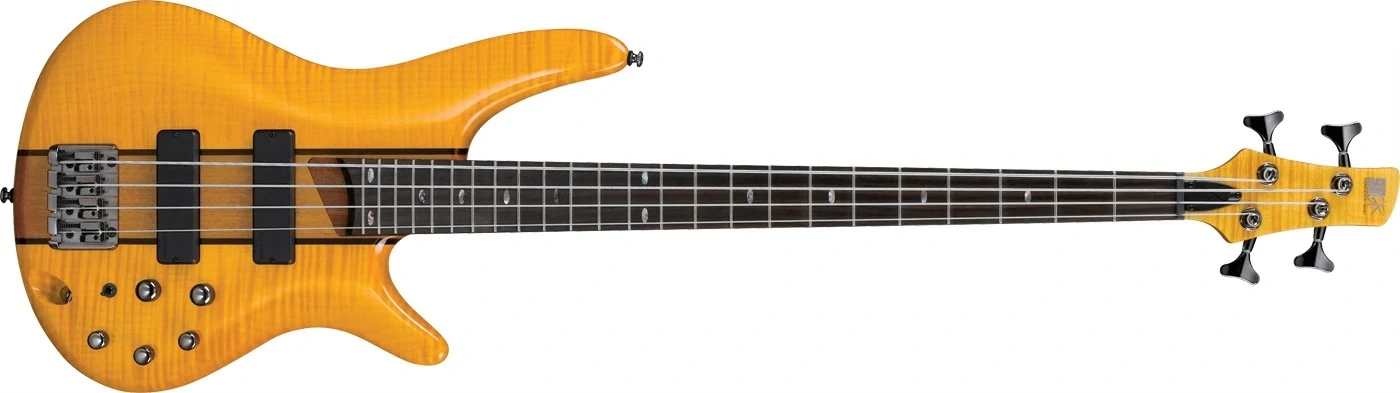

SR700 Amber "2008" (more images)

The SR700 is a Soundgear series solid body electric bass model introduced by Ibanez for 2008. It was crafted in South Korea but production moved to Indonesia in 2010. It is part of the Standard line.

The SR700 features a double-cutaway mahogany body bolted to a jatoba and bubinga SR4 neck with a 24-fret rosewood fingerboard with abalone ovals position markers. Components include a pair of Bartolini MK-1 pickups, an Accu-cast B20 fixed bridge with 19mm string spacing, die-cast machine heads. Controls consist of a single volume, balancer, and Bartolini MK1 3-band EQ with treble, bass, and mid boost/cut.

For 2012 the bridge was replaced with the new Accu-cast B300 and the Bartolini EQ was replaced with an EQB-IIIS unit.

The SR705 is a five string version.

The SR700 was discontinued after 2015.

Specifications[]

Related content: Soundgear series |

Specifications for SR700 (2008–2015)

Model name: SR700 (2008–2015)

Year(s) offered: 2008–2015

Sold in: Americas & Oceania 2008–2012 / Europe / USA

Made in: South Korea (2008–2009)/ Indonesia (2010–2015)

Price: SMAP: €779 (2015)^[1]

Finish(es): Amber (AM) 2008–2015 / Charcoal Brown (CN) 2009–2014 / Cobalt Blue Surge (CBE) 2014–2015

Body

Body type:
Solid body

Body material:
Mahogany w/ figured maple top

Neck joint:
AANJ

Bridge:
2008–2011: Accu-cast B20 fixed
2012–2015: Accu-cast B300 (19mm string spacing)

Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs

Hardware color:
cosmo black

Neck

Neck type:
SR4
Radius: 305mm
Thickness: 19.5mm at 1st fret and 21.5mm at 12th fret
Width: 62mm at 24th fret

Neck material:
5-piece jatoba/ bubinga

Scale length:
864mm / 34"

Fingerboard material:
Rosewood

Fingerboard inlays:
Abalone ovals

Frets:
24 / medium

Nut:
Plastic (black) (38mm)

Machine heads:
Ibanez die-cast

String gauge (factory):
.045/.065/.085/.105

Factory tuning:
1G,2D,3A,4E (E standard)

Electronics

Bridge pickup:
Bartolini® MK-1 bridge passive

Neck pickup:
Bartolini® MK-1 neck passive

Electronics:
2008–2009: Bartolini MK1 3-band
2010–2015: EQB-IIIS 3-band EQ w/Mid frequency switch

Controls:
2008–2009: Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut
2010–2015: Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, 2 way mid frequency selector (250hz, 600hz)

Battery:
9V

Output jack:
¼" stereo barrel (angled face mount)
