SR700 (2001–2003)

For other models with the same name, see SR700 (disambiguation).

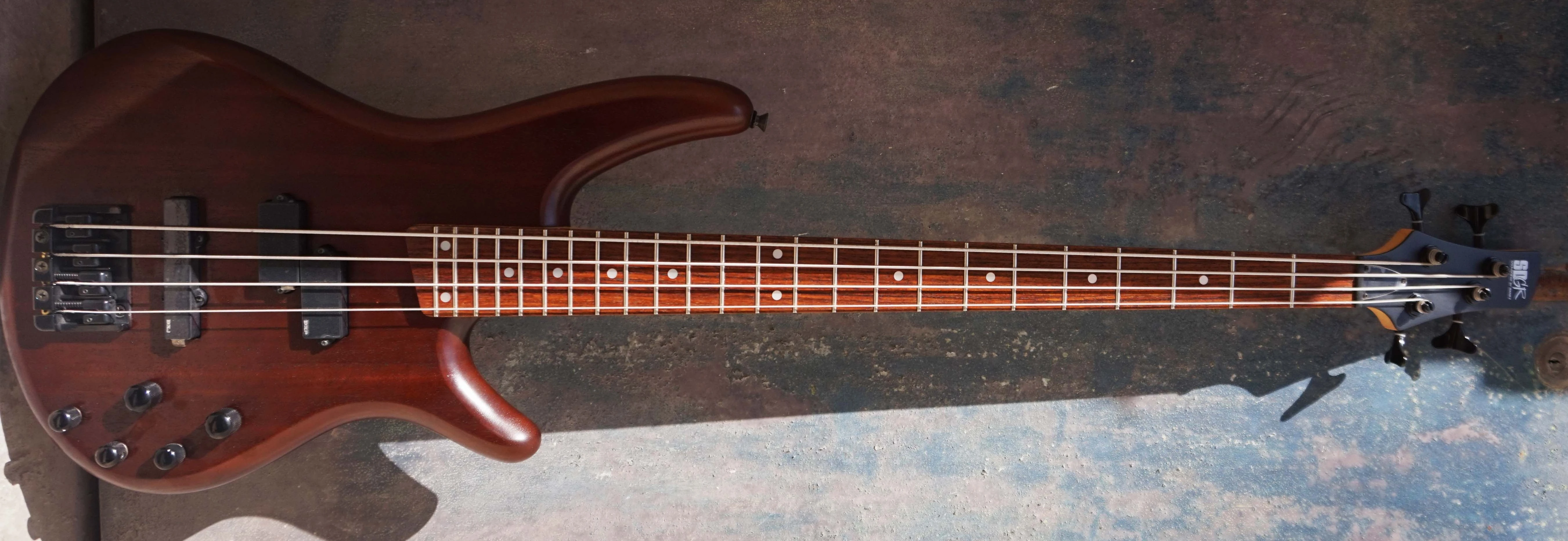

SR700 Walnut Flat (more images)

The SR700 is a Soundgear series solid body electric bass model introduced by Ibanez for 2001. It was crafted in Japan by FujiGen.

The SR700 features a double-cutaway mahogany body bolted to a maple SR4 neck with a 24-fret rosewood fingerboard with pearl dot position markers and a black flat headstock. Components include a pair of Ibanez DX pickups with a P-style at the neck and a J-style in the bridge position, an Accu-cast fixed bridge with 19mm string spacing, and Ibanez die-cast tuning machines. Controls consist of a single volume, balancer, an EQB-III 3-band EQ with a mid-frequency toggle and treble, mid and bass controls.

The SR705 is a five string version.

This version of the SR700 was discontinued after 2003.

Specifications

Related content: Soundgear series |

Specifications for SR700 (2001–2003)

Model name: SR700 (2001–2003) Year(s) offered: 2001–2003 Sold in: Europe Made in: Japan Finish(es): Walnut Flat (WNF)
Body Body type: Solid body Body material: Mahogany Neck joint: AANJ Bridge: Accu-cast B20 fixed (19mm string spacing) Knob style: B20 (volume & balancer) & B15 plastic knobs Hardware color: black	Neck Neck type: SR4 Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Rosewood Fingerboard inlays: Pearl dots Frets: 24 / medium Nut: Plastic (black) (38mm) Machine heads: Gotoh style	Electronics/ Strings Pickup configuration: PJ Bridge pickup: Ibanez DX-J Neck pickup: Ibanez DX-P Electronics: EQB-3 band Controls: Master volume / balancer / treble / mid / bass Battery: 9V Output jack: ¼" stereo barrel (angled face mount) String gauge (factory): .045/.065/.085/.105 Factory tuning: 1G,2D,3A,4E (E standard)

About this table

Images

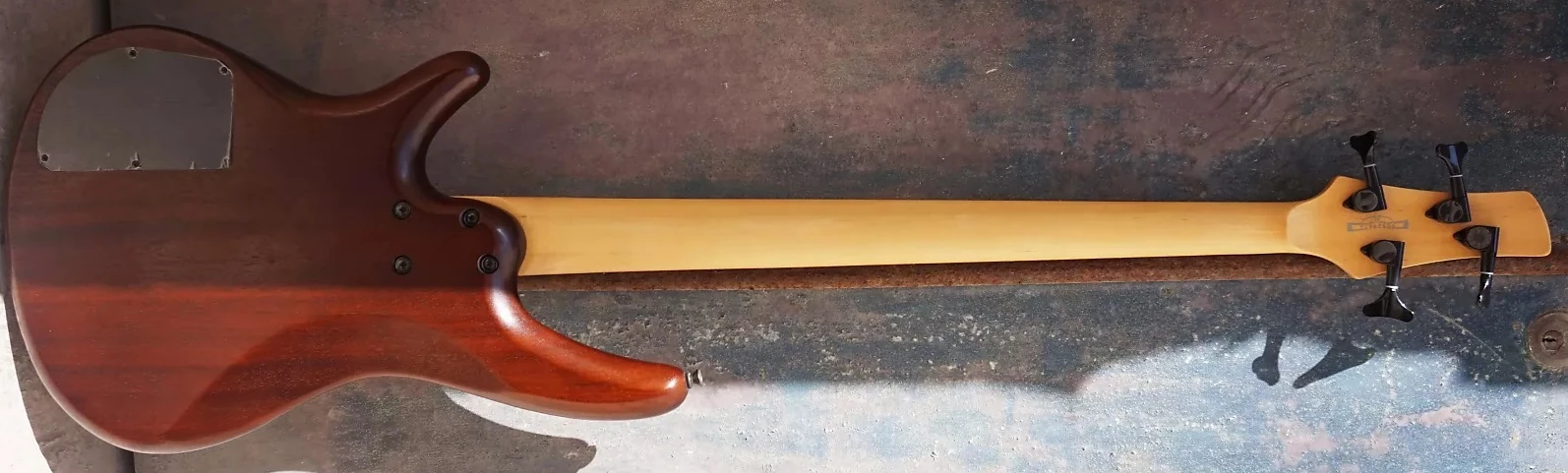

Ibanez SR700 Walnut Flat ( Rear: Mahogany body bolted to a 3-piece maple SR4 neck and Gotoh style machine heads )

Sources

• 2001 Europe catalog (p. 35)
• 2003 Asia & South America catalog (p. 42)
