For other models with the same name, see SR700 (disambiguation).

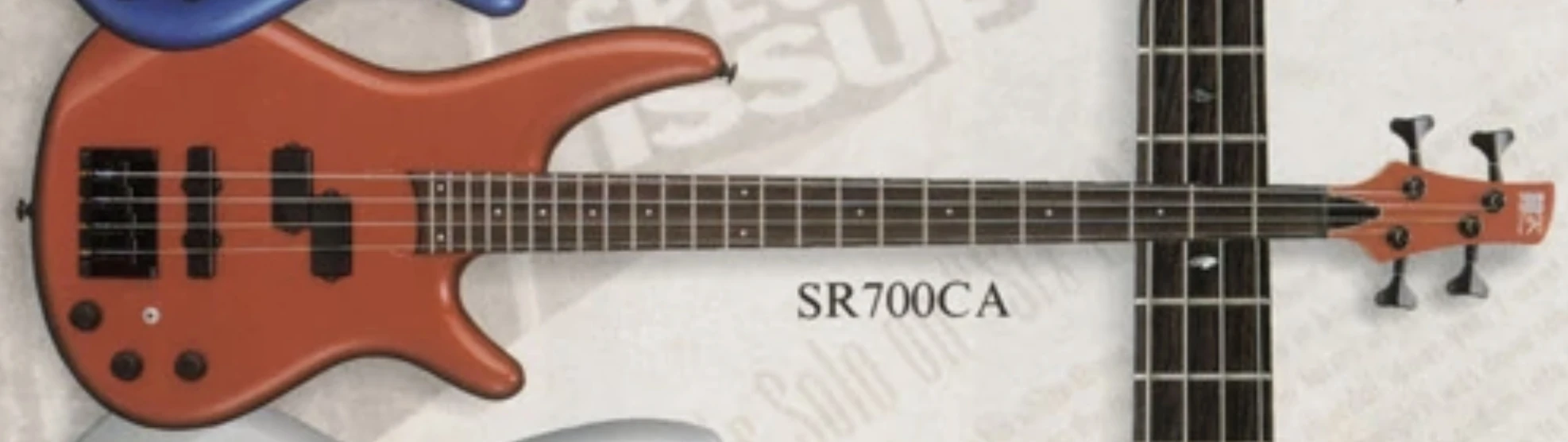

1993 SR700 CA
SR700 Candy Apple (more images) Red copyright sprite

The SR700 is a Soundgear series solid body electric bass model introduced by Ibanez for 1993. It was produced in Japan by FujiGen.

The SR700 features a double-cutaway basswood body bolted to a maple SR4 neck with a 24-fret rosewood fingerboard with pearloid dot position markers and a black flat headstock. Components include a pair of Ibanez Standard pickups with a P-style at the neck and a J-style in the bridge position, an Accu-cast fixed bridge with 19mm string spacing, and Ibanez die-cast tuning machines. Controls consist of a single volume, balancer, and tone.

The SR800 is a related model with active pickups and a variable midrange controls.

This version of the SR700 was produced for only one year.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR700 (1993)
Model name: SR700 (1993)
Year(s) offered: 1993
Sold in: Europe
Made in: Japan
Finish(es): Black (BK) / Candy Apple (CA) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Accu-cast B IV fixed (19mm string spacing)
Hardware color:
Black
Neck
Neck type:
SR4
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
24 / regular
Nut:
Plastic (black) (38mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Bridge pickup:
Ibanez Standard J
Neck pickup:
Ibanez Standard P
Electronics:
??
Controls:
Volume / balancer / tone / ??
Battery:
??
Output jack:
¼" stereo barrel (side mounted)

Images[]

Additional finishes

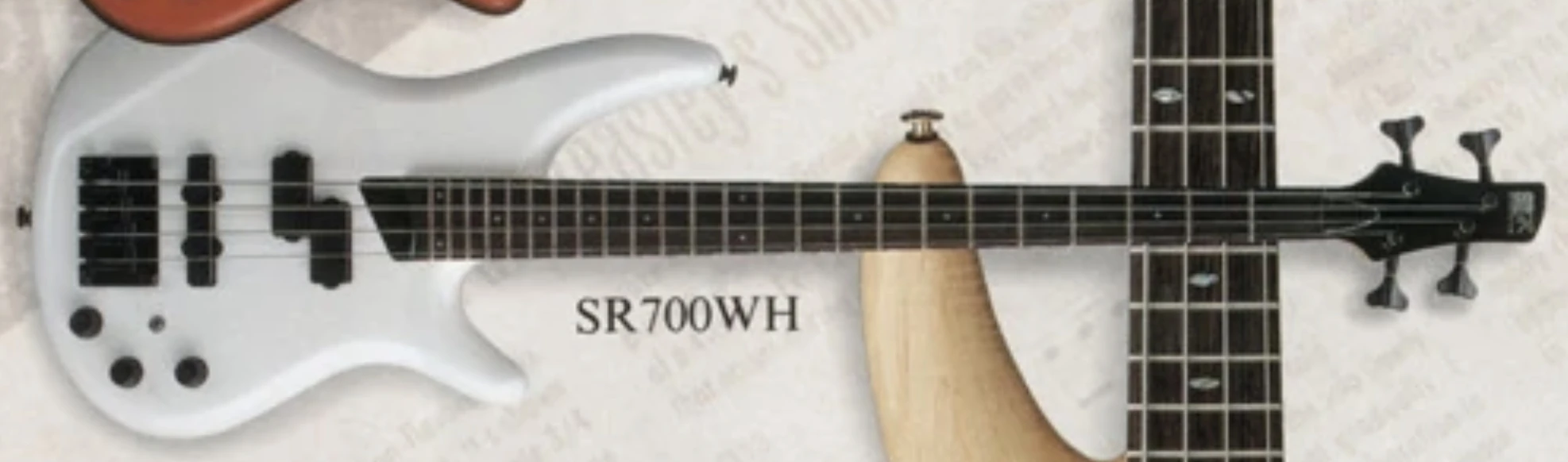

1993 SR700 WH
White
