1997 SR7005MW

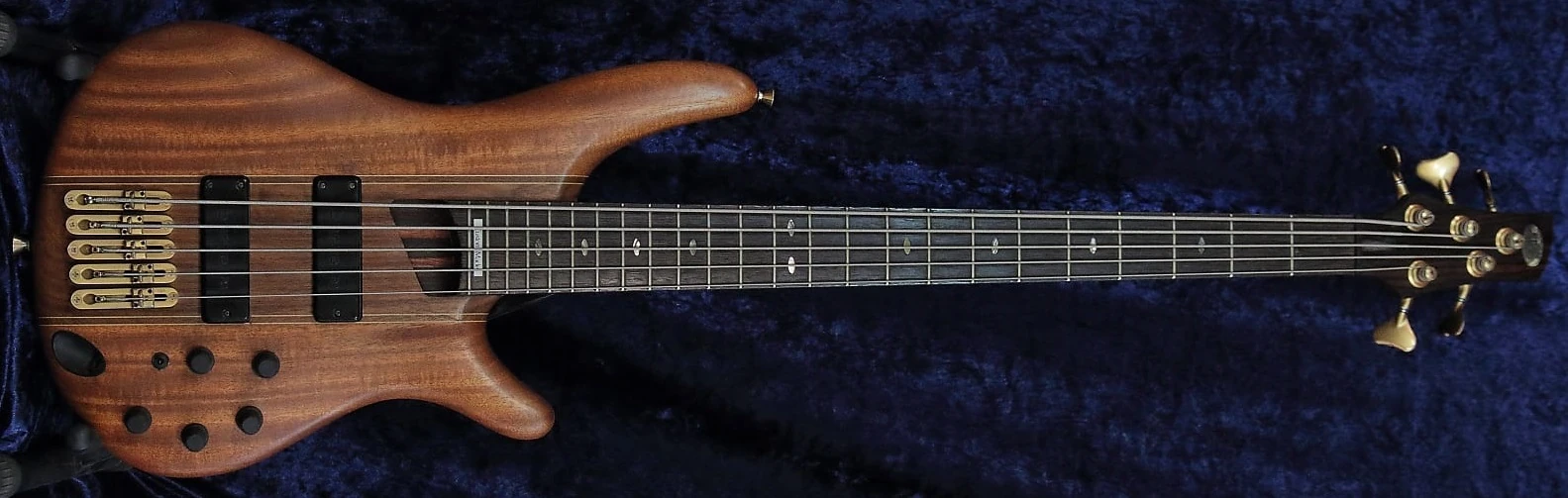

SR7005MW Oil (more images) Red copyright sprite

The SR7005MW is a limited edition five string Soundgear series solid body electric bass model introduced by Ibanez for 1997. It was produced in Japan by FujiGen as part of the upscale Prestige line.

The SR7005MW features a double-cutaway mahogany and walnut body bolted to a SR5 wenge an bubinga neck with a 24-fret wenge fingerboard with abalone oval position markers a "Custom Made"" inlay at 24 fret and a black headstock. Components include a Mono-rail bridge with D-tuner on the bass ("E") string and 16.5mm string spacing, a pair of Bartolini soapbar humbucking pickups channeled through a Bartolini 3-band EQ with a mid-frequency toggle, a plastic nut, gold hardware and deluxe Gotoh 510 tuning machines.

The SR7000MW is a four string version.

The SR7005MW was only offered in 1997.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR7005MW
Model name: SR7005MW
Year(s) offered: 1997
Sold in: Europe
Made in: Japan
Finish(es): Oil (OL)
Body
Body type:
Solid
Body material:
3-piece mahogany/ walnut
Neck joint:
AANJ
Bridge:
Mono-rail w/ D-tuner (16.5mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Gold
Neck
Neck type:
SR5 Prestige
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Abalone ovals w/ "Custom Made" at 24 fret
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh GBS510
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini Custom bridge soapbar (H)
Neck pickup:
Bartolini Custom neck soapbar (H)
Electronics:
Bartolini 3-band EQ w/ mid-frequency selector
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / Mid-frequency toggle (250hz, 600hz)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details

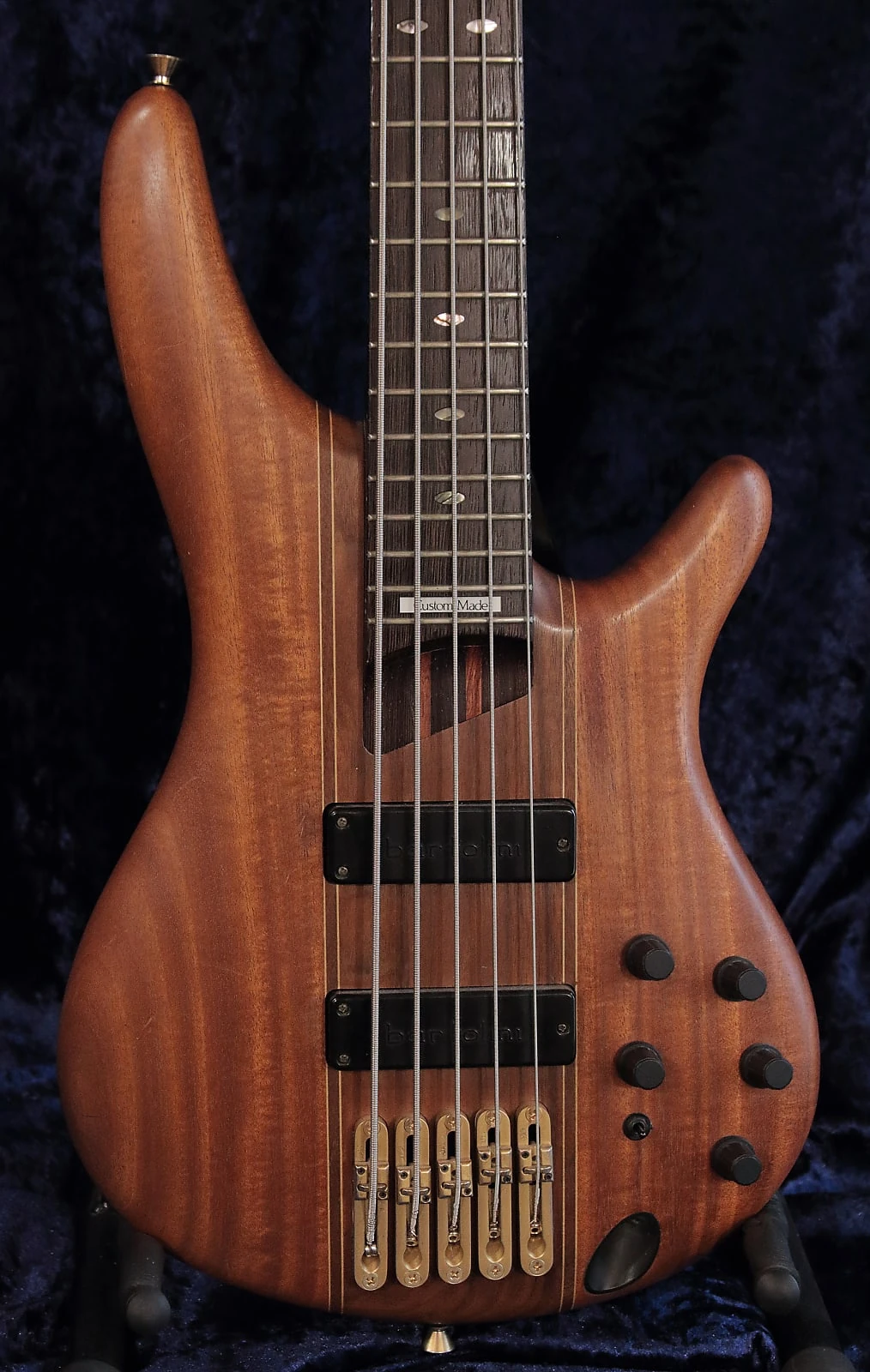

1997 SR7005MW front
Front of body

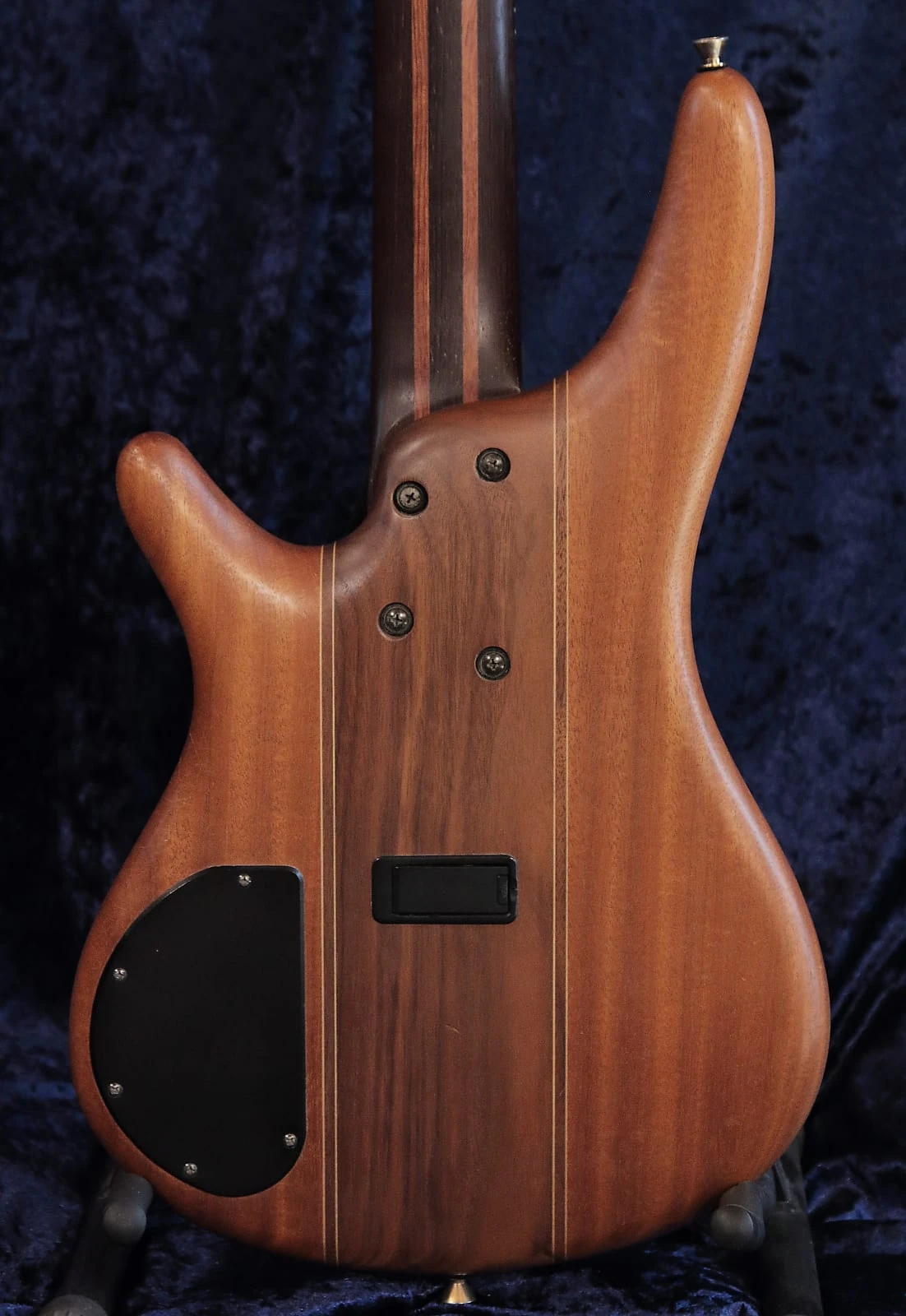

1997 SR7005MW rear
Rear of body
