2015 SR650 NTF 1P 01

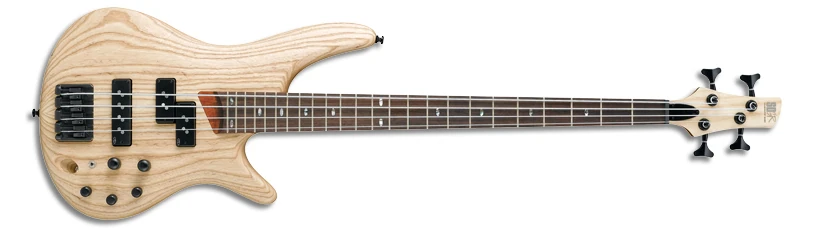

SR650 Natural Flat (more images) Red copyright sprite

The SR650 is a Soundgear series solid body electric bass model introduced by Ibanez for 2015. It was made in Indonesia as part of the standard line.

The SR650 features a double-cutaway ash body bolted to a jatoba and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers. Components include a Nordstrand CND J passive bridge pickup paired with a P neck pickup with an Ibanez custom preamp with a bypass-able three-band EQ, an Accu-cast bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

For 2018 the neck construction was changed to jatoba and walnut and the fretboard was changed to jatoba.

The SR655 and SR656 are five and string versions, respectively.

The SR650 was discontinued after 2018 and replaced with the very similar SR650E.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR650
Model name: SR650
Year(s) offered: 2015–2018
Sold in: Americas & Oceania 2017–2018 / Asia 2017–2018 / China 2018 / Europe 2017–2018 / USA
Made in: Indonesia
Finish(es): Antique Brown Stained (ABS) 2017–2018 / Brown Burst Flat (BBF) 2015–2016 / Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
Accu-cast B300 fixed (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Black matte
Neck
Neck type:
SR4
Neck material:
2015–2017: 5-piece jatoba/ bubinga
2018: 5-piece jatoba/ walnut
Scale length:
864mm / 34"
Fingerboard material:
2015–2017: Rosewood
2018: Jatoba
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium
Nut:
Plastic (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
Nordstrand CND P (P) passive
Neck pickup:
Nordstrand CND J (J) passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / balancer / EQ bypass toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes/ details
2018 SR650 ABS 1P 04

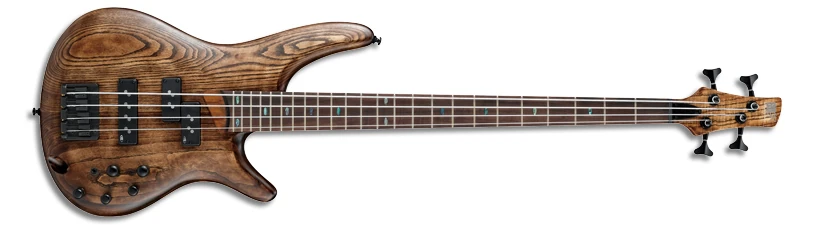

Antique Brown Stained
2016 SR650 BBF 1P 02

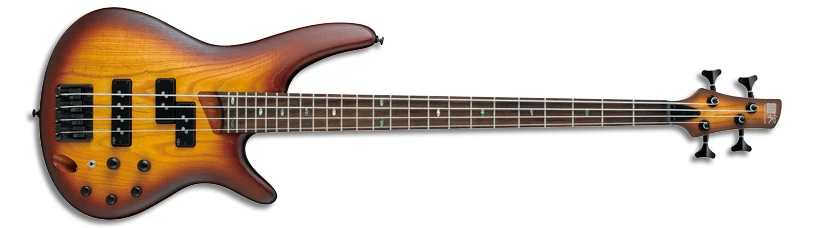

Brown Burst Flat
2017 SR650 ABS 1P 02 CU Body Top
Body front
2017 SR650 ABS 1P 02 CU Body Back
Body rear
Controls-layout 3-band-passive-tone
Controls layout
SR-Prestige frequency response charts
EQ frequency response
