2001 SR646-BK
SR646 Black (more images) Red copyright sprite

The SR646 is a six-string Soundgear series solid body electric bass model introduced by Ibanez for 2001. It was produced in Japan by FujiGen as part of the Standard line.

The SR646 features a double-cutaway basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a pair of IBZ DX6-N/B (active) pickup's on the neck and bridge positions, a Die-cast 6 strings fixed bridge with 10.8mm string spacing, an active 2-Band EQ, Die-cast machine heads and black hardware.

The SR640 and SR645 are related four and five string models.

The SR646 was discontinued after 2002.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR646
Model name: SR646
Year(s) offered: 2001-2002
Sold in: Japan
Made in: Japan
Price: MSRP: JP¥ 75,000 (2001-2002)
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Die-cast 6-string (10.8mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR6
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Plastic (black) (54mm)
Machine heads:
Die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
1997: IBZ DX6B active 1998: IBZ ADX6
Neck pickup:
1997: IBZ DX6N active 1998: IBZ ADX6
Electronics:
2-Band EQ active
Controls:
Volume / Balancer / EQB-3
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details

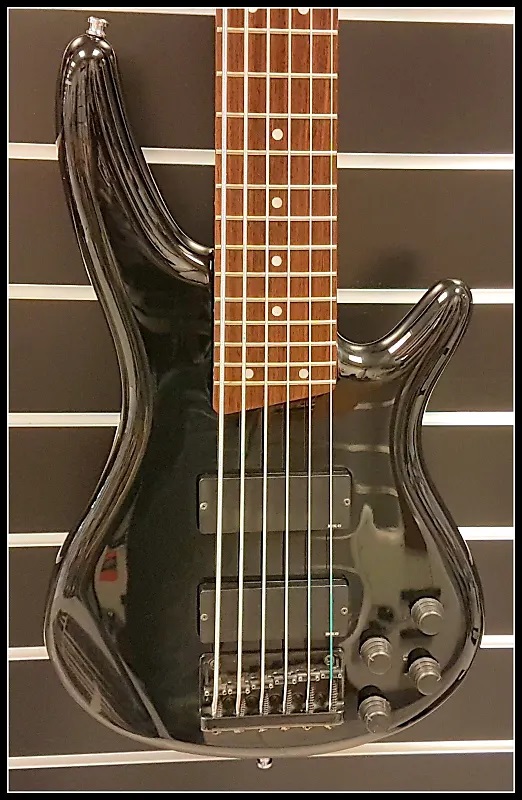

SR646 front
Front of body
SR646 tuners
Die-cast tuners

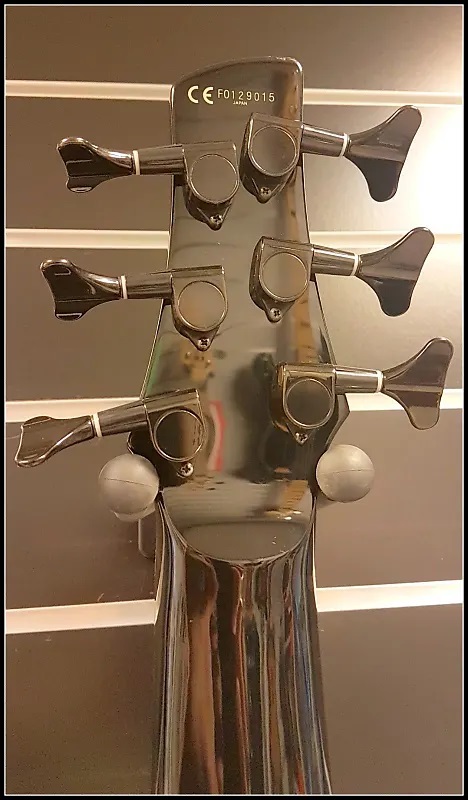

SR646 headstock
Headstock
