SR645-GN

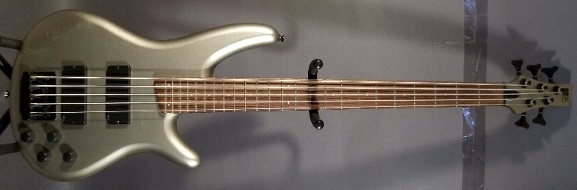

SR645 Gray Nickel (more images) Red copyright sprite

The SR645 is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2000. It was produced in Japan by FujiGen as part of the Standard line.

The SR645 features a double-cutaway basswood body bolted to a SR5 maple neck with a 24-fret rosewood fingerboard with white side dot position markers and a matching headstock. Components include a die-cast 5-string bridge with 16.5mm string spacing, a pair of Ibanez DX-5 pickups channeled through an active 2-band EQ, a plastic nut, black hardware and die-cast tuning machines.

The SR645L is a related left-handed model. The SR640 and SR646 are similar four and six string models.

The SR645 was discontinued after 2002.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR645
Model name: SR645
Year(s) offered: 2000–2002
Sold in: Japan / USA 2001 / Europe 2001
Made in: Japan
Price: MSRP: JP¥65,000 (2000–2002) / US$849.99
Finish(es): Black (BK) Europe 2001 / Gray Nickel (GN)
Body
Body type:
Solid
Body material:
Basswood
Neck joint:
AANJ
Bridge:
2000–2002: Die-cast 5-string
2001 (Europe only): Die-cast EB7-5 (16.5mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Black
Neck
Neck type:
SR5
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White side dots
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh
Electronics/ Strings
Bridge pickup:
Ibanez DX-5B bridge passive
Neck pickup:
Ibanez DX-5N neck passive
Electronics:
2000: 2-band EQ active
2001–2002: Ibanez EQB-II 2-band
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Other finishes and details

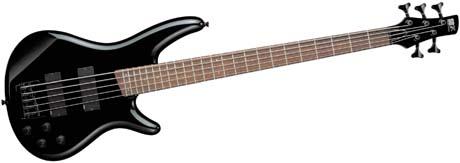

SR645-BK
Black

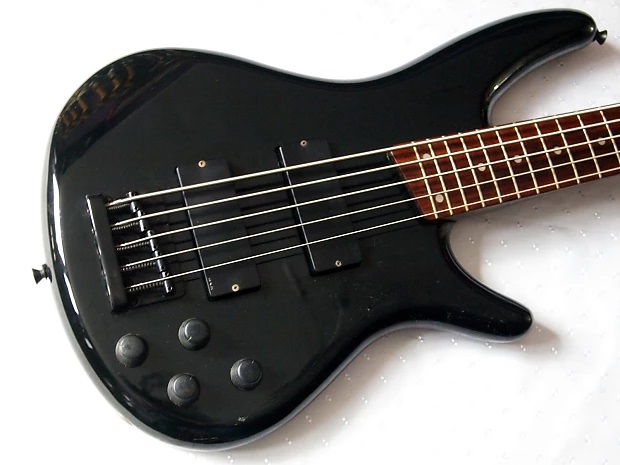

2001 SR645-BK
Front of body (BK)

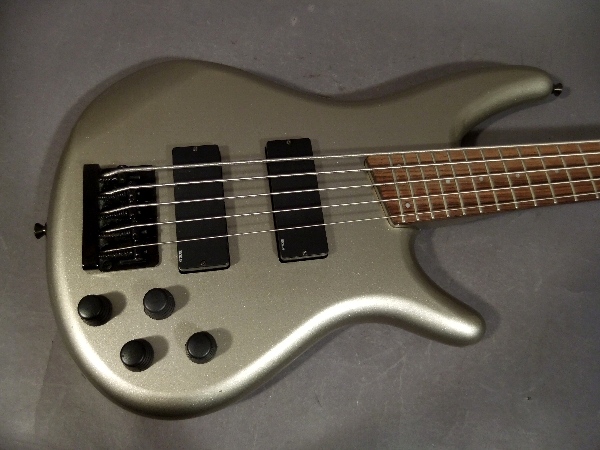

2000 SR645-GN front
Front of body (GN)
