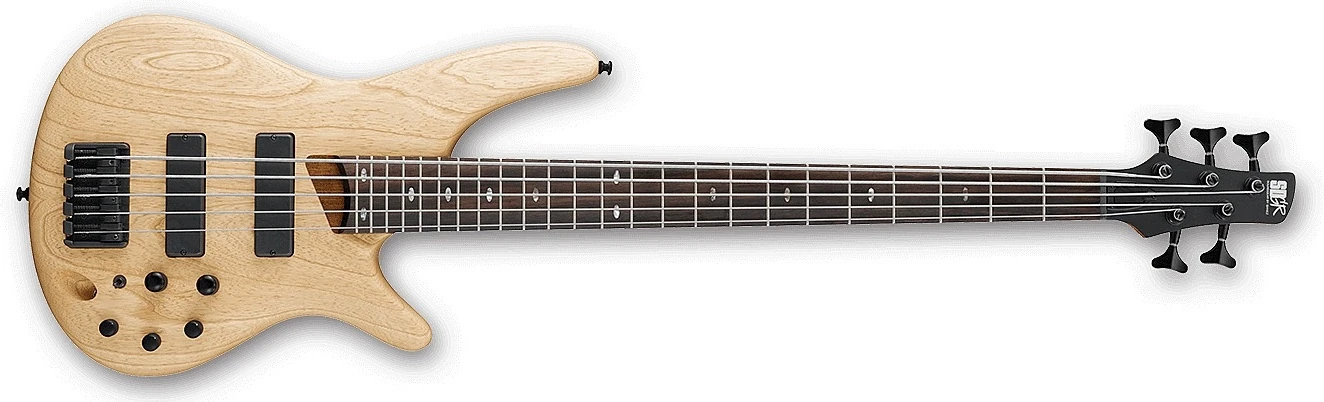

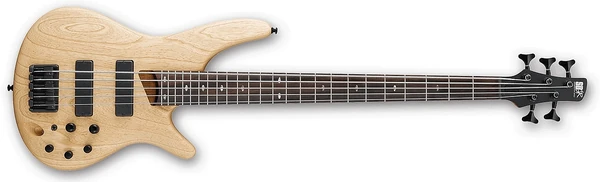

SR605 NTF (2010)
SR605 Natural flat (more images) Red copyright sprite

The SR605 is an Soundgear series solid body electric bass model introduced by Ibanez for 2010. It is made in Indonesia as part of the Standard line.

The SR605 features a double-cutaway light Ash body bolted to a jatoba and bubinga SR5 neck with a 24-fret wenge fingerboard with abalone oval position markers and a black headstock. Components include a Bartolini® MK1-5-R passive soapbar pickup on the bridge position and a Bartolini® MK1-5-F passive soapbar pickup on the neck position, a Accu-Cast B25 fixed bridge with 16.5mm string spacing, a black plastic nut, die-cast machine heads and black matte hardware. Controls consist of a master volume, pickup balancer, and an active 3-band EQ with mid-frequency toggle

For 2010, the electronics were changed to the EQB-IIIs EQ with a mid-frequency toggle. For 2012 the bridge was changed to the Accu-cast B305.

The SR600 is a four string version.

The SR605 was discontinued after 2017.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR605
Model name: SR605
Year(s) offered: 2009–2017
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Finish(es): Natural flat (NTF) / Walnut flat (WNF) 2011–2014
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
2009–2011: Accu-Cast B25
2012–2017: Accu-cast B305 (16.5mm string spacing)
Knob style:
Two B20, three B15
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Radius: 305mm
Thickness:19.5mm at 1st fret and 21.5mm at 12th fret
Width: 62mm at 24th fret
Neck material:
5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
Nut:
Black (plastic) (45mm)
Machine heads:
Die-cast
Electronics/ Strings
Bridge pickup:
Bartolini MK1-5-R passive/ ceramic
Neck pickup:
Bartolini MK1-5-F passive/ ceramic
Electronics:
2009: Bartolini MK1 3-band
2010–2017: EQB-IIIS 3-band EQ w/ mid-frequency toggle
Controls:
2009: Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut
2010–2018: Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, 2 way mid-frequency selector (250hz, 600hz)
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130 (Elixir)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

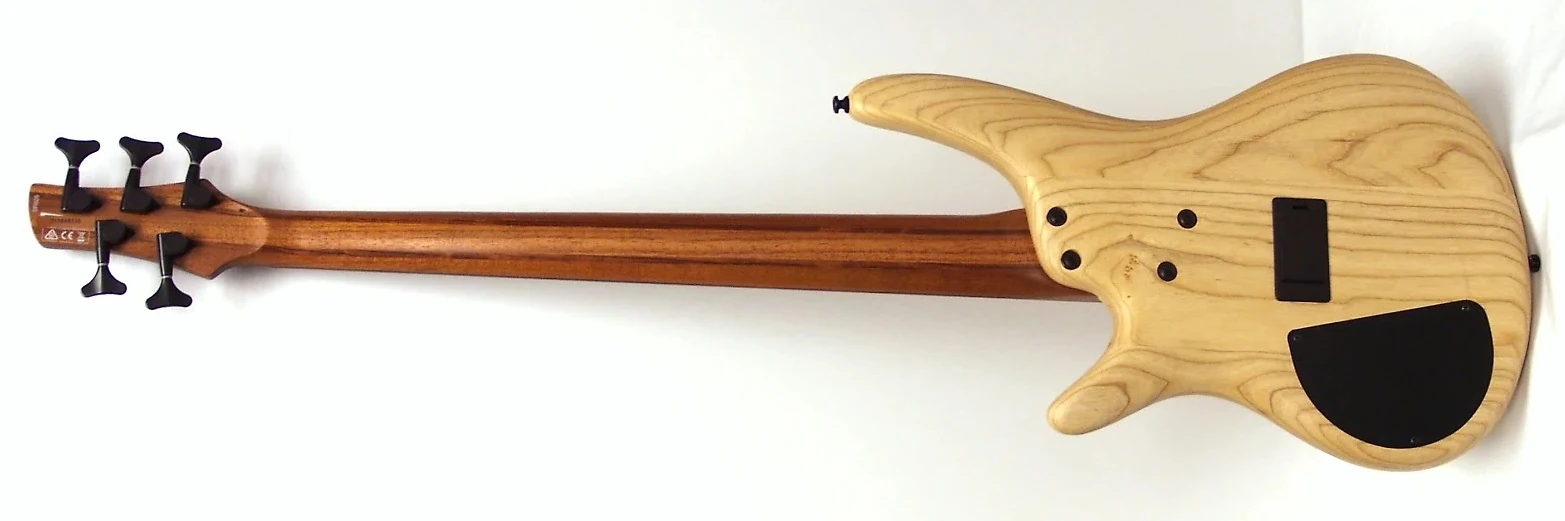

SR605 rear
2010-2014 Ibanez SR605 ( Rear: Ash body bolted to a 5pc Jatoba/Bubinga SR5 neck and Die-cast tuning machines ) Red copyright sprite
Additional details

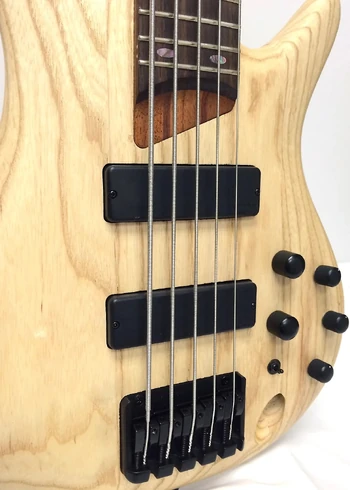

SR605 controls
Controls

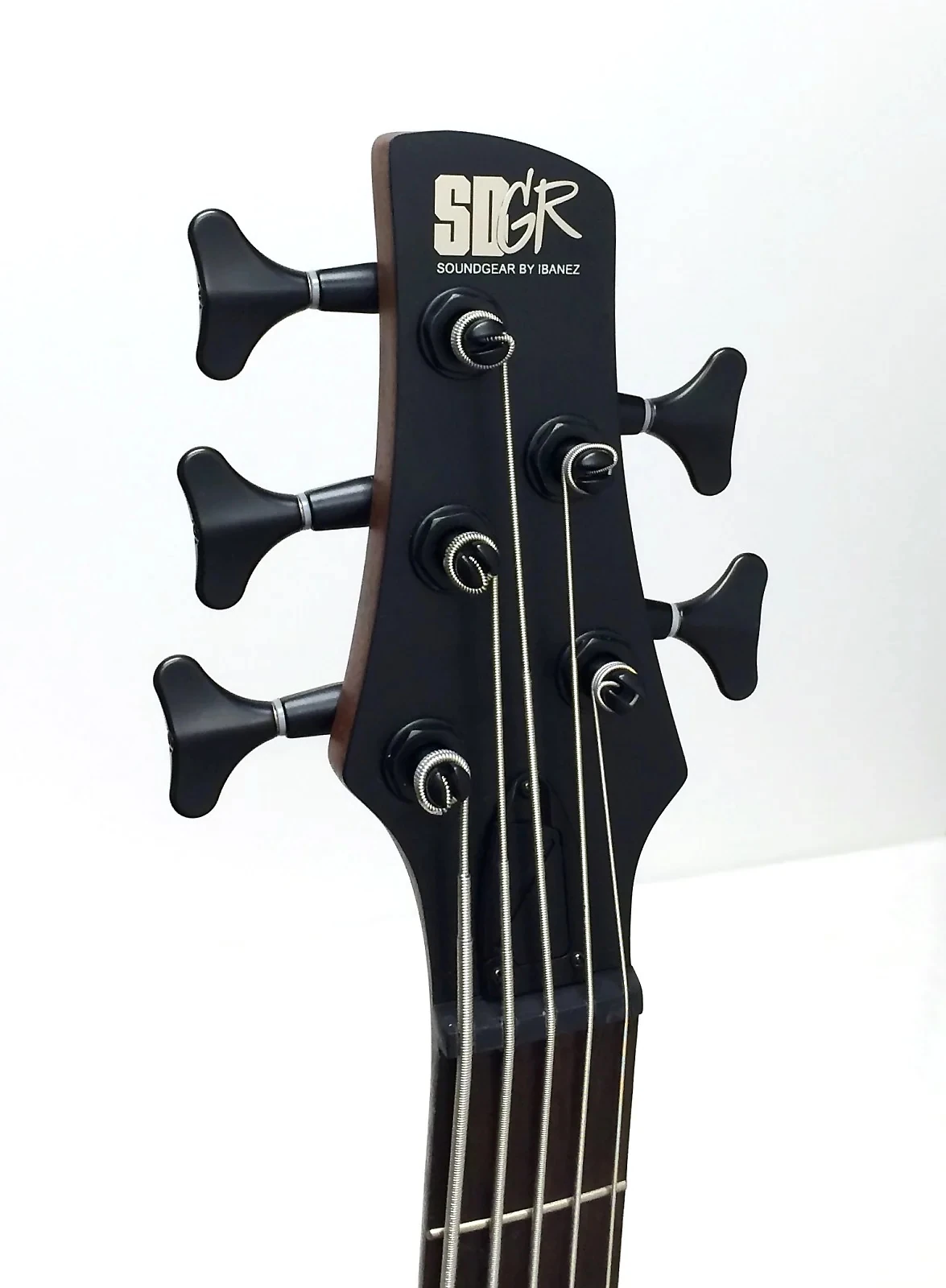

SR605 headstock
Headstock

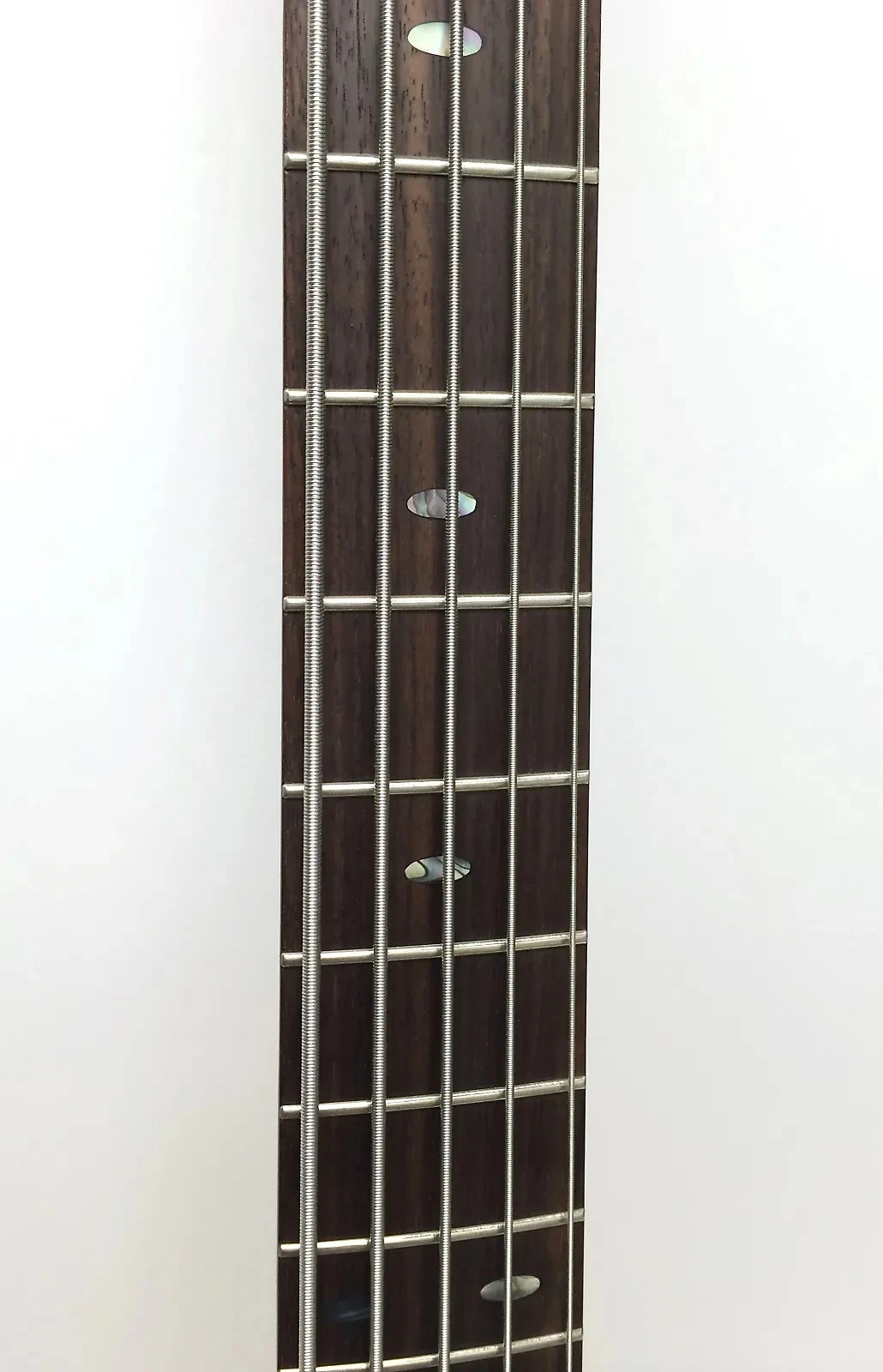

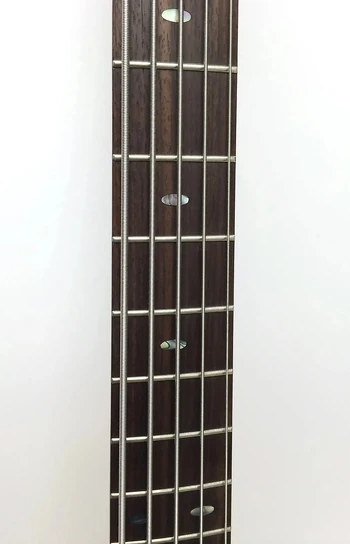

SR605 inlays
Inlays

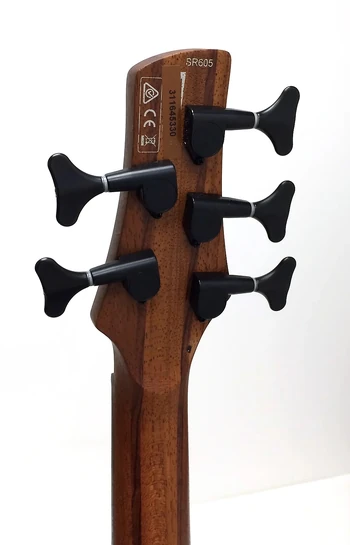

SR605 tuners
Die-cast
Bartolini MK1 3-band
Bartolini MK1 3-band (2009)
Power Curve III 3-Band controls
Power Curve III 3-Band (2010–2018)
