SR600 (2009–2018)

For the earlier model with the same name, see SR600 (1988–1998) .

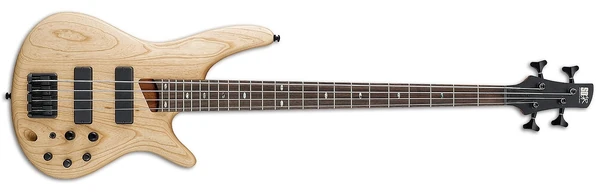

SR600 Natural Flat "2010" (more images)

The SR600 is a Soundgear series solid body electric bass model introduced by Ibanez for 2009. It was crafted in Indonesia as part of the Standard line.

The SR600 features a double-cutaway light ash body bolted to a jatoba and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers and a black flat headstock. Components include a pair of Bartolini MK-1 pickups, an Accu-cast B20 solid bridge with 19mm string spacing, a Bartolini MK1 3-band equalizer, and Ibanez die-cast tuning machines. Controls consist of a volume, balancer, and separate treble, bass and, mid boost/cut controls.

For 2010, the electronics were changed to the EQB-IIIs EQ with a mid-frequency toggle. For 2012 the bridge was changed to the Accu-cast B300. For 2018 the fretboard was changed to jatoba.

The SR605 is a five string version. The SR600L is a left-handed version.

Specifications[]

Related content: Soundgear series |

Specifications for SR600

Model name: SR600

Year(s) offered: 2009–2018

Sold in: Americas & Oceania 2013–2018 / Asia & Africa 2016–2018 / China 2017–2018 / Europe 2010–2018 / USA 2009–2014

Made in: Indonesia

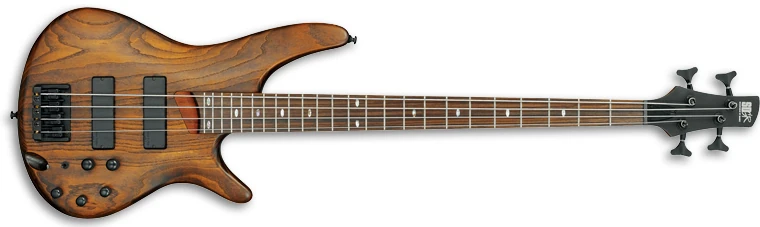

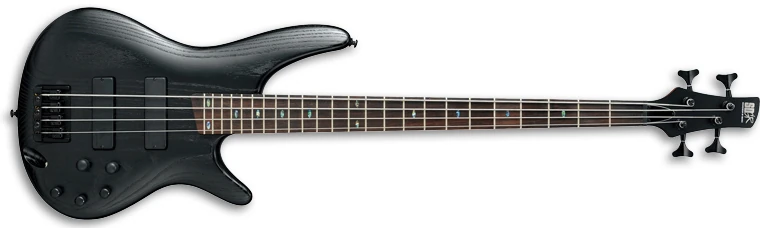

Finish(es): Black Flat (BKF) 2009 / Natural Flat (NTF) / Walnut Flat (WNF) 2011–2014

Body

Body type:
Solid body

Body material:
2009: Light ash
2010–2018: Ash

Neck joint:
AANJ

Bridge:
2009–2011: Accu-cast B20
2012–2018: Accu-cast B300 (19mm string spacing)

Knob style:
2009: 2 large metal knobs (matte black), 3 small metal knobs (matte black)
2010–2018: 2 large metal knobs (matte black), 3 small metal knobs (matte black), 1 switch

Hardware color:
Black Matte

Neck

Neck type:
SR4

Neck material:
5-piece jatoba/ bubinga

Scale length:
864mm / 34"

Fingerboard material:
2009–2017: Rosewood
2018: Jatoba

Fingerboard inlays:
Abalone oval

Frets:
24 / medium

Nut:
Plastic (black) (38mm)

Machine heads:
Ibanez die-cast

Electronics/ Strings

Bridge pickup:
Bartolini MK1-4-R

Neck pickup:
Bartolini MK1-4-F

Electronics:

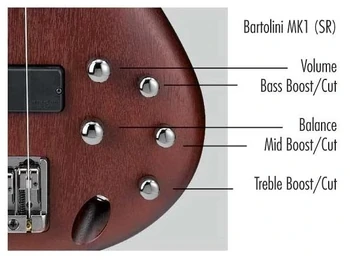

2009: Bartolini MK1 3-band
2010–2018: EQB-IIIS 3-band EQ w/Mid frequency switch

Controls:
2009: Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut
2010–2018: Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, 2 way mid frequency selector (250hz, 600hz)

Output jack:
¼" stereo barrel (angled face mount)

String gauge (factory):
.045/.065/.085/.105

Factory tuning:
1G,2D,3A,4E (E standard)
