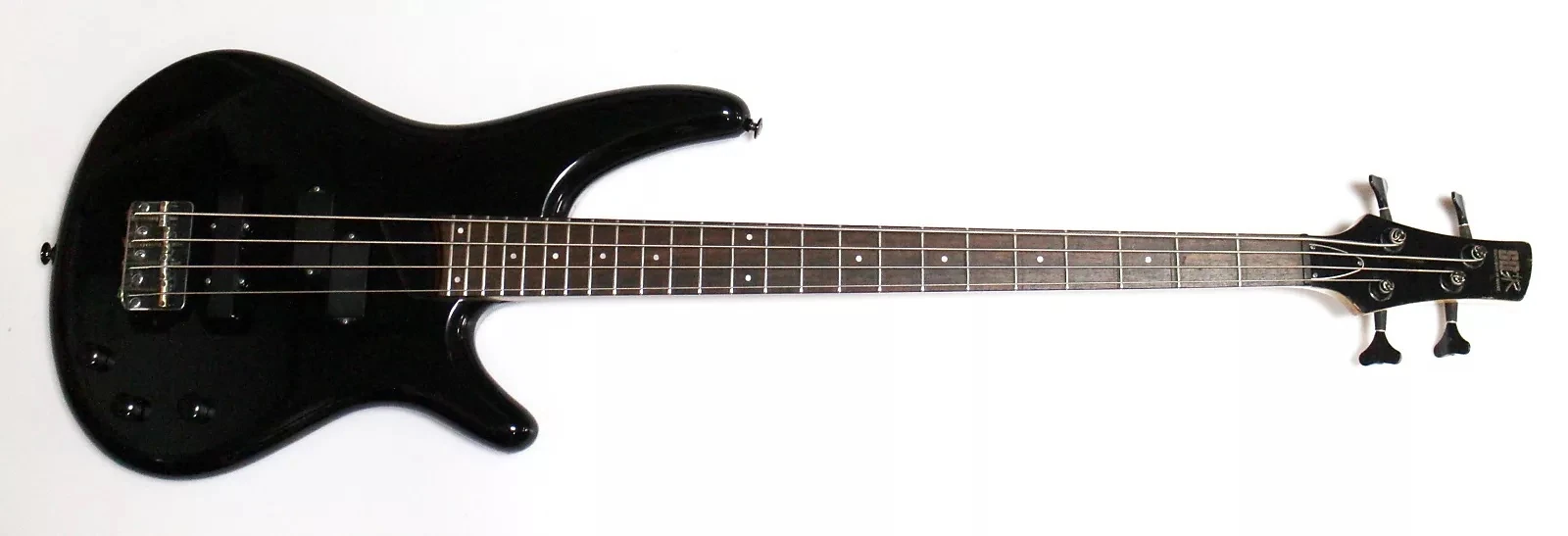

1990 SR530-BK
SR530 Black (more images) Red copyright sprite

The SR530 is a medium scale "32.0 inch" Soundgear series solid body electric bass model introduced by Ibanez for 1990. It was produced in Japan by FujiGen as part of the Standard line.

The SR530 features a double-cutaway basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers and a matching headstock. Components include a standard fixed bridge with 19mm string spacing, and a pair of Ibanez-P/J-1 passive pickup's, a plastic nut, black hardware and gotoh tuning machines.

The SR530 was discontinued after 1992.

Specification s[]

Related content: Soundgear series | Models-icon
Specifications for SR530
Model name: SR530
Year(s) offered: 1990-1992
Sold in: Japan
Made in: Japan
Price: MSRP: JP¥ 50.000 (1990-1992)
Finish(es): Black (BK) / Candy Apple (CA) 1992 / White (WH) 1991-1992
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Standard (fixed) (19mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Black
Neck
Neck type:
SR4
Neck material:
3-piece maple
Scale length:
812mm/ 32"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Black plastic (42mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
Ibanez J-1 passive
Neck pickup:
Ibanez P-1 passive
Controls:
Master volume / Master tone / Balance control
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes & details

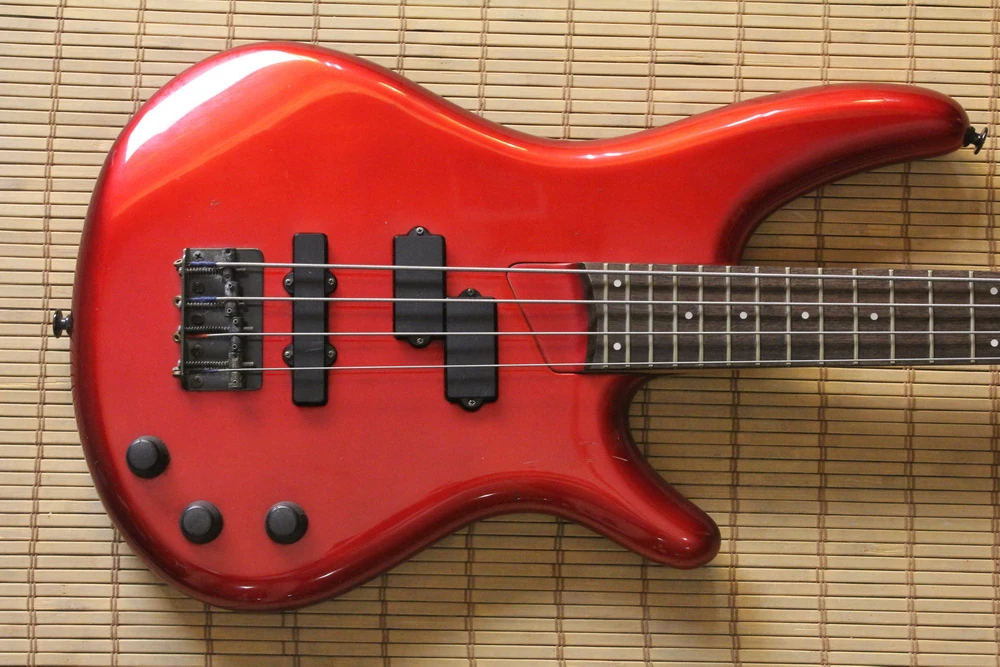

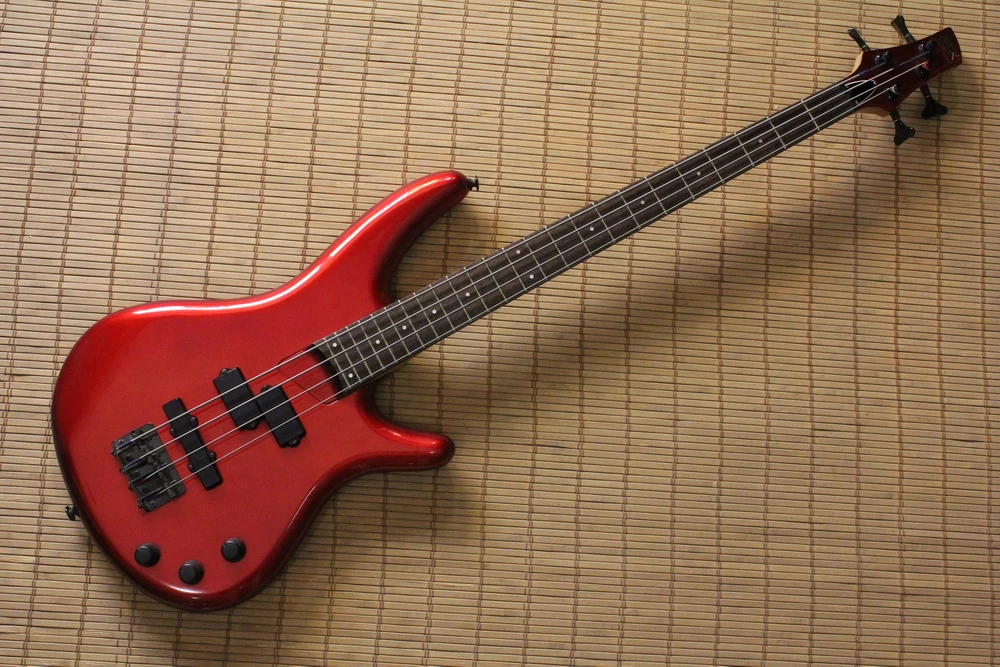

1992 SR530-CA
Candy Apple

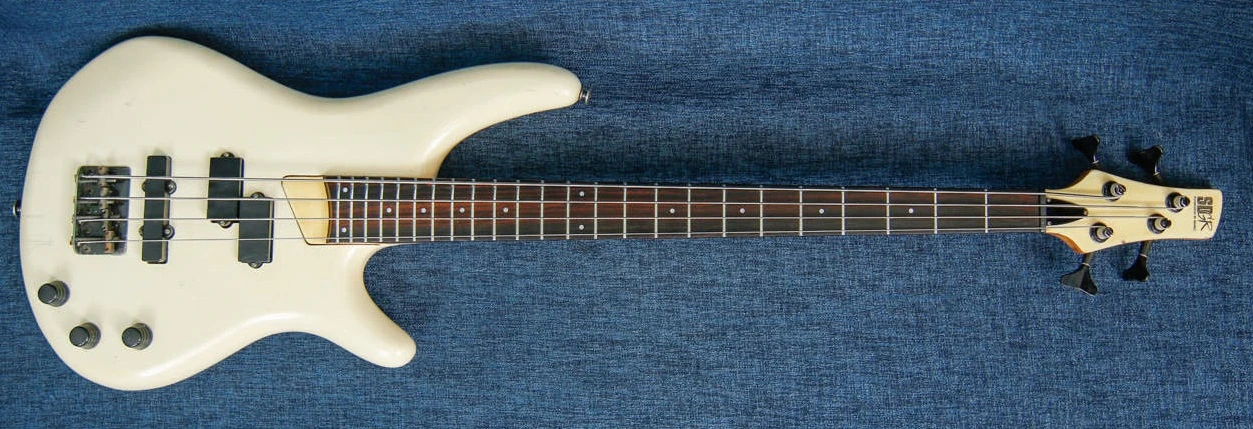

1991 SR530-WH
White

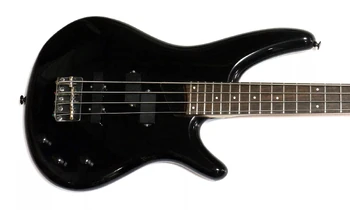

SR530-BK front
Black (front)
SR530-CA front
Candy Apple (front)
