SR500T (2012)

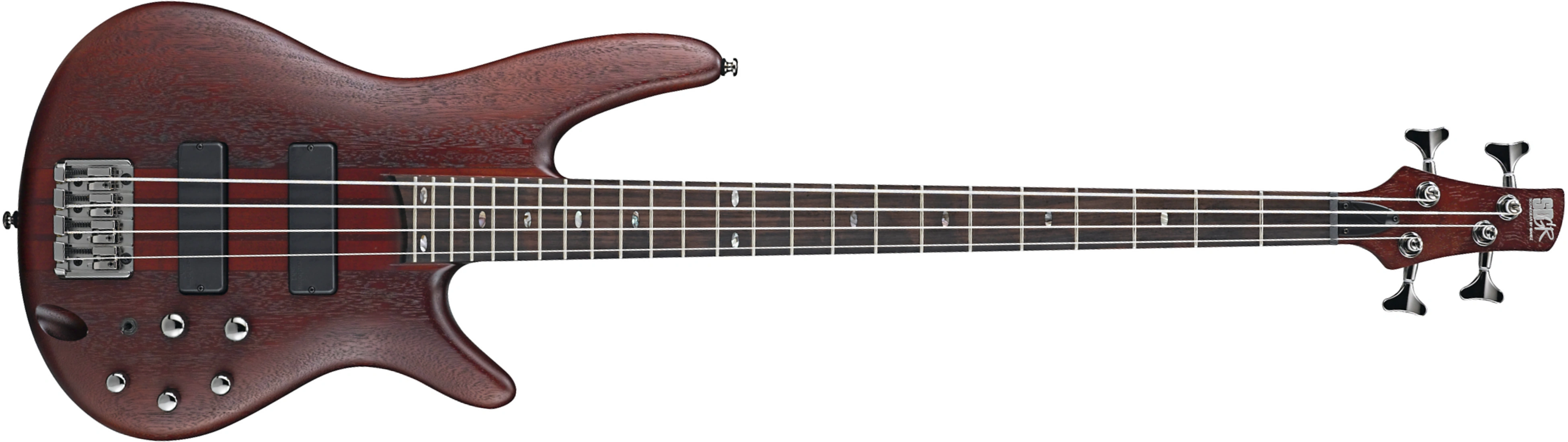

SR500T Charcoal Brown Flat (more images) Red copyright sprite

The SR500T is a Soundgear series solid body electric bass model introduced by Ibanez in 2013. It was produced in Indonesia and offered exclusively by US retail chains Guitar Center and Musician's Friend.

The SR500T features neck-through-body construction with double cutaway mahogany body attached to a jatoba-bubinga neck, rosewood fingerboard with 24 frets, with abalone oval inlays and a matching headstock , Components are a pair of Bartolini® MK-1 pickups on the front and the bridge, controls are volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, 2 way mid frequency selector (250hz, 600hz), EQB-IIIS 3-band EQ w/Mid frequency switch, Accu-cast B300 fixed bridge, and cosmo black hardware.

The SR505T is a five string version. The SR500 is a similar model with a bolt-on neck.

The SR500T was discontinued after 2015.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR500T
Model name: SR500T
Year(s) offered: 2013–2015
Sold in: USA
Made in: Indonesia
Finish(es): Charcoal Brown Flat (CNF)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Neck-thru
Bridge:
Accu-cast B300 fixed (19.mm string spacing)
Knob style:
Large knurled metal dome (volume & balancer) & small knurled metal dome (3-way EQ)
Hardware color:
Cosmo black
Neck
Neck type:
SR4
Neck material:
5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez GB7 die-cast
Electronics/ Strings
Bridge pickup:
Bartolini MK-1
Neck pickup:
Bartolini MK-1
Electronics:
Ibanez EQB IIIS 3-band EQ w/ 2-way mid-frequency toggle
Controls:
Master volume / balancer / 3-band EQ (treble, mid, and bass, boost/cut) / 2-way mid-frequency selector (250hz, 600hz)
Battery:
9V
Output jack:
¼" stereo barrel} (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

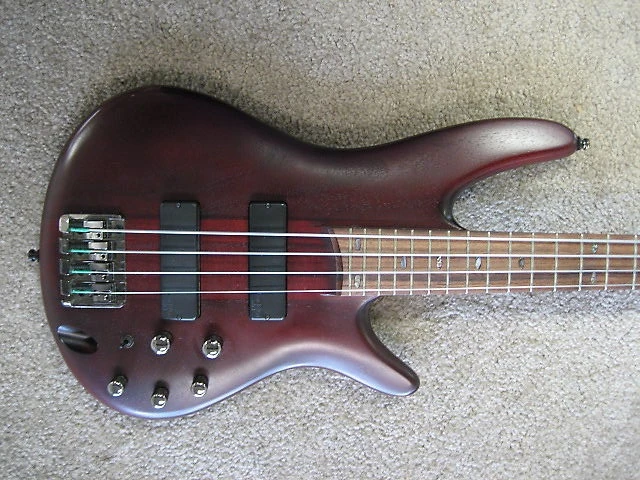

SR500T front
Front of body

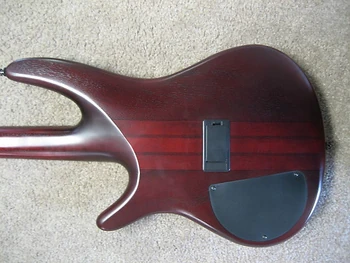

SR500T rear
Rear of body
Controls-layout V B 3band 2-way-mid-toggle
Controls layout
Freq-resp EQBIIIS
Frequency response
