For the other models with the same name, see SR500L (disambiguation).

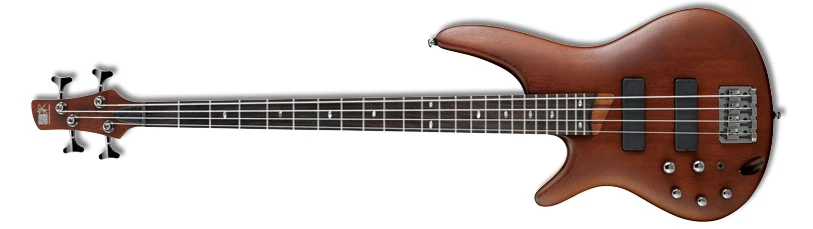

2012 SR500L BM 1P 03
SR500L Brown Mahogany Red copyright sprite

The SR500L is a left-handed Soundgear series solid body electric bass model introduced by Ibanez in mid 2012. It was produced in Indonesia.

The SR500L features a double-cutaway mahogany body bolted to a wenge and bubinga SR4 neck with a 24-fret rosewood fingerboard with abalone oval position markers. Components include a pair of Bartolini MK-1 passive pickups, an Accu-cast B300 fixed bridge with 19mm string spacing, and a Bartolini MK1 3-band EQ. Controls consist of a master volume, balance, treble boost/cut, bass boost/cut and mid boost/cut.

The preamp was changed in 2016.

The SR500 is a right-handed version.

The SR500L was discontinued after 2017.

Specifications[]

Specifications for SR500L (2012–2017)
Model name: SR500L (2012–2017)
Year(s) offered: 2012–2017
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: SMAP: €589 (2015)[1]
Finish(es): Brown Mahogany (BM)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Accu-cast B300 fixed (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Cosmo black
Neck
Neck type:
SR4
Neck material:
5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Jatoba
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium
Nut:
Plastic (black) (38mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Bridge pickup:
Bartolini MK-1 bridge passive
Neck pickup:
Bartolini MK-1 neck passive
Electronics:
2012–2015: EQB-IIIs 3-band EQ w/Mid frequency switch
2016–2017: Ibanez Custom Electronics 3-band EQ w/mid frequency switch
Controls:
Master volume / Balance / 3-way EQ: treble, bass, & mid boost/cut / 2-way mid frequency selector (250hz, 600hz)
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
