SR500FL (1994)

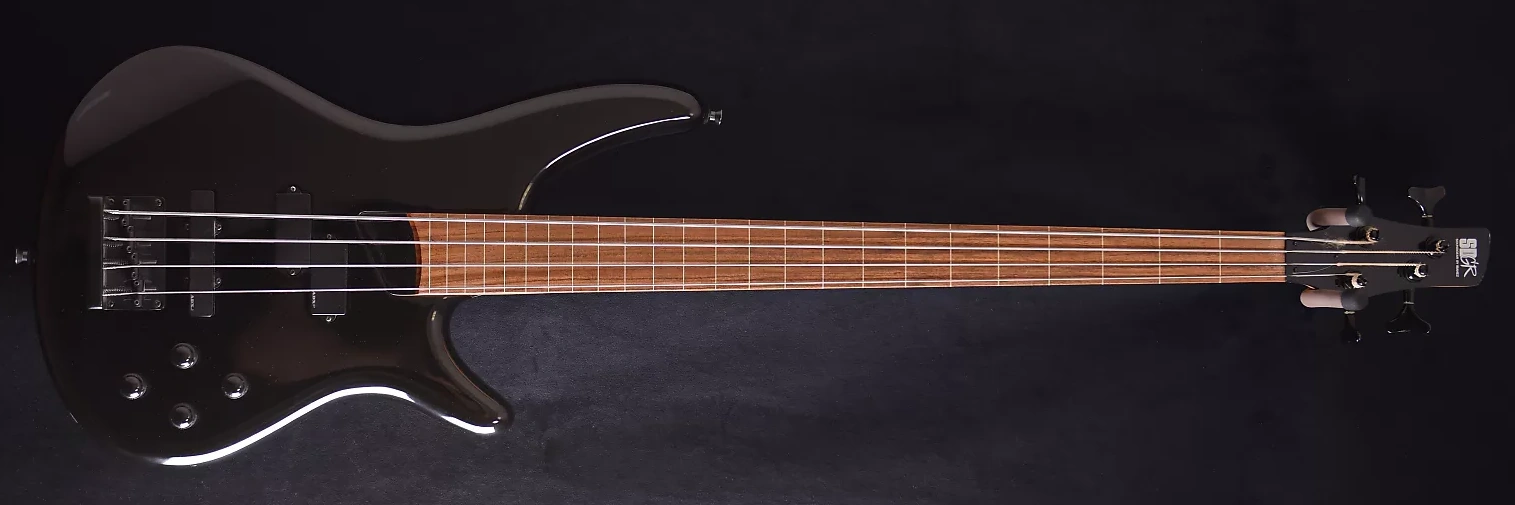

SR500FL Black (more images) Red copyright sprite

The SR500FL is a fretless Soundgear series solid body electric bass model introduced by Ibanez for 1994. It was crafted in South Korea by Cort.

The SR500FL features a double cutaway light American maple body bolted to a maple neck with rosewood fingerboard with 24 painted fretlines, pearl white side dot position markers and a matching headstock. Components include a pair of Ibanez DX J/P pickups on the neck and bridge positions, controls are volume, balance, treble boost/cut, bass boost/cut, a 2-band equalizer, Die-cast fixed bridge, and black hardware.

The SR500 is a similar fretted model.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR500FL
Model name: SR500FL
Year(s) offered: 1994–1995
Sold in: USA
Made in: South Korea
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Light American maple
Neck joint:
AANJ
Bridge:
Die-cast fixed (19mm string spacing)
Knob style:
4 Metal knobs (black)
Hardware color:
Black
Neck
Neck type:
SR4
Neck thickness : 19mm at 1st fret, 21mm at 12th fret
Neck width : 38mm at nut, 62mm at 24th fret
Neck material:
3-piece maple unpainted
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Radius: 305mm
Fingerboard inlays:
24 painted fretlines
Pearl white side dots
Frets:
None
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Bridge pickup:
Ibanez DX P
Neck pickup:
Ibanez DX J
Electronics:
2-band
Controls:
Volume, balance, treble boost/cut, bass boost/cut
Output jack:
¼" stereo (side mounted)

Images[]

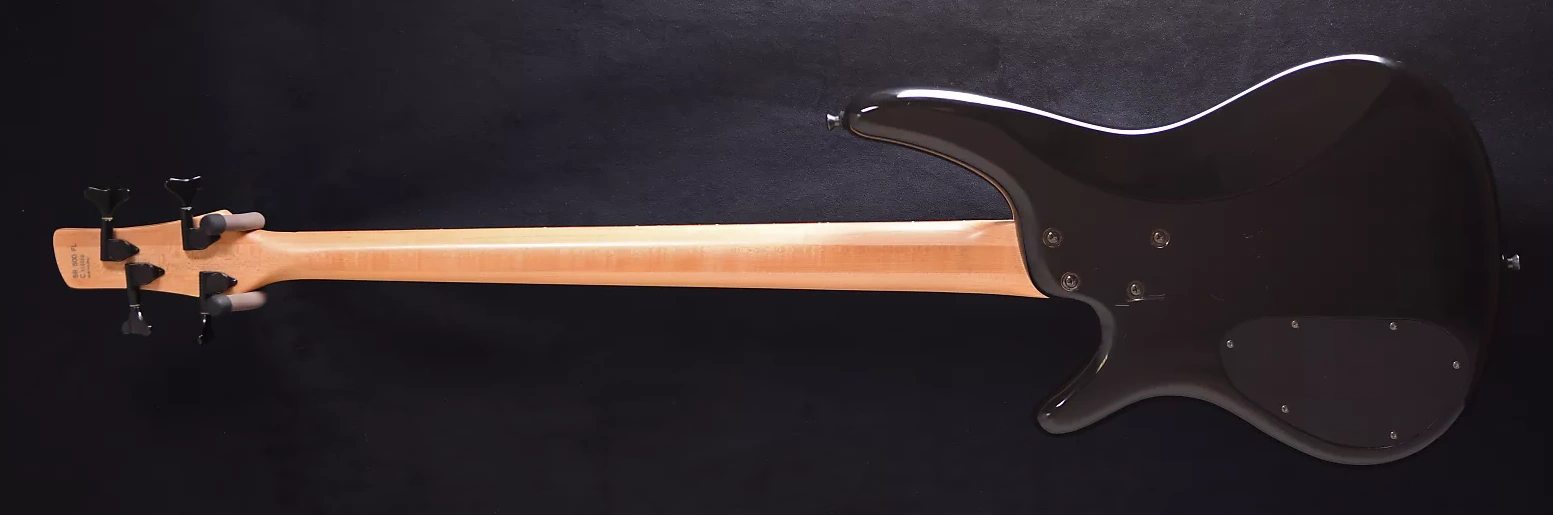

SR500FL rear
1994 Ibanez SR500FL Black ( Rear: Light American Maple body bolted to a 3-piece maple SR4 unpainted neck ) Red copyright sprite
Additional details

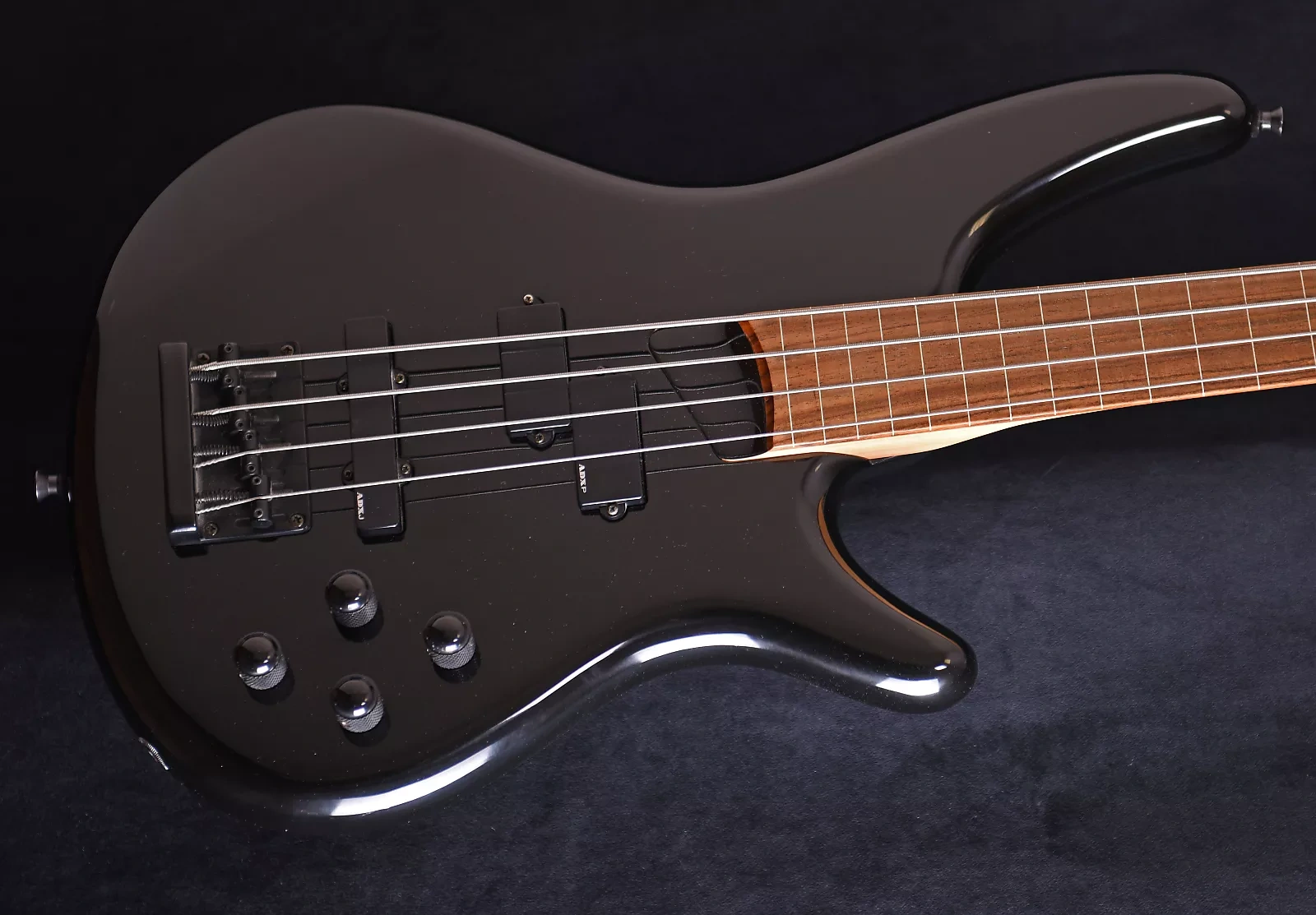

SR500FL front
Front of body

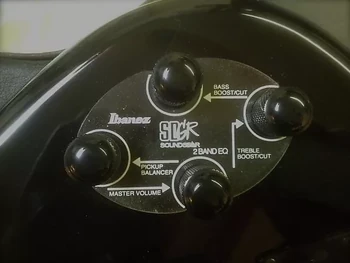

SR500FL controls
Controls
