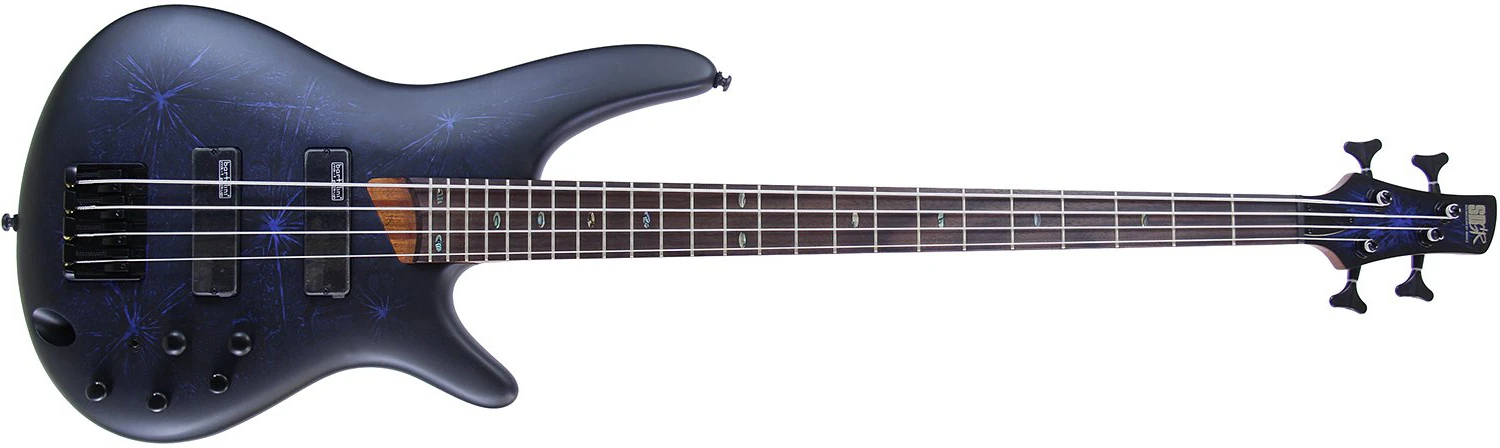

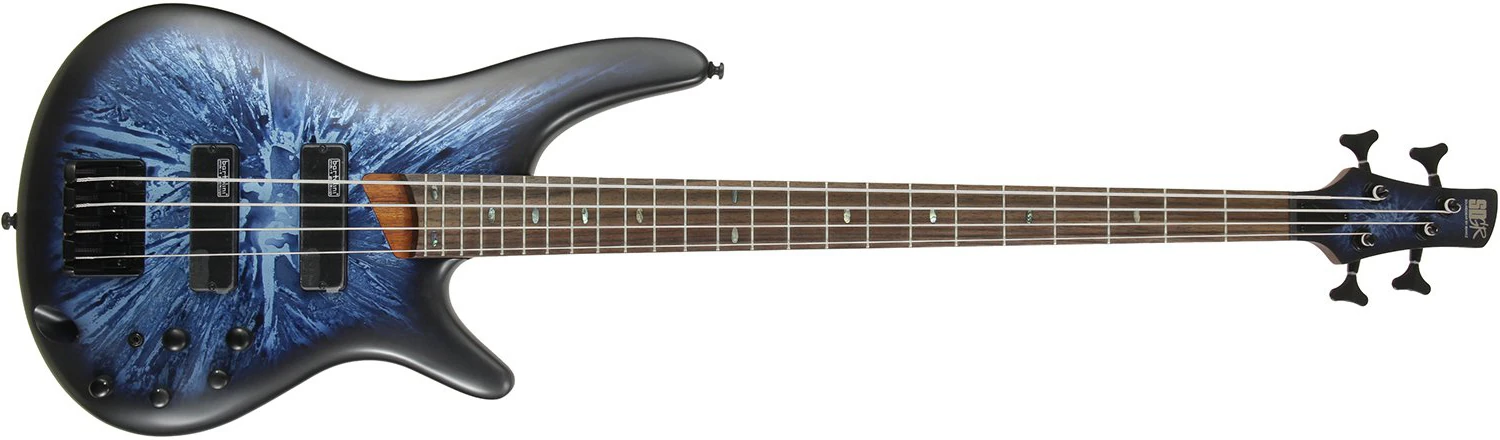

SR500B CAT
SR500B Cobalt Arctic Frost Matte (more images) Red copyright sprite

The SR500B is a Soundgear series solid body electric bass model introduced by Ibanez for 2016. It was made in Indonesia. Five finishes was made and three of them specially made for the Ikebe Gakki musical instrument stores in Japan.

The SR500B features a poplar burl top on a double cutaway mahogany body bolted to a jatoba and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers and a matching headstock. Components included a pair of Bartolini® MK-1 passive pickups, an Accu-cast B300 bridge, and matte black hardware. Controls consist of a volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, two-way mid frequency selector (250hz, 600hz), and an Ibanez Custom Electronics 3-band EQ w/Mid frequency switch.

The SR505B is a five string version. The SR500 is a similar model without the poplar burl top

The SR500B was discontinued after two years of production.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR500B
Model name: SR500B
Year(s) offered: 2016–2017
Sold in: Japan
Made in: Indonesia
Finish(es): Blue Arctic Frost Matte (BAT) Ikebe Gakki / Cobalt Arctic Frost Matte (CAT) / Green Arctic Frost Matte (GAT) Ikebe Gakki / Silver Arctic Frost Matte (SAT) Ikebe Gakki / Violet Arctic Frost Matte (VAT)
Body
Body type:
Solid body
Body material:
Mahogany w/ poplar burl top
Neck joint:
AANJ
Bridge:
Accu-cast B300 fixed (16.5mm string spacing)
Knob style:
2 large "metal knobs", 3 small "metal knobs", 1 switch (Matte black)
Hardware color:
Matte black
Neck
Neck type:
SR4
Neck material:
5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Bridge pickup:
Bartolini MK-1 passive
Neck pickup:
Bartolini MK-1 passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/Mid frequency switch
Controls:
Volume, balance, treble boost/cut, bass boost/cut
Output jack:
¼" stereo (side mounted)

Images[]

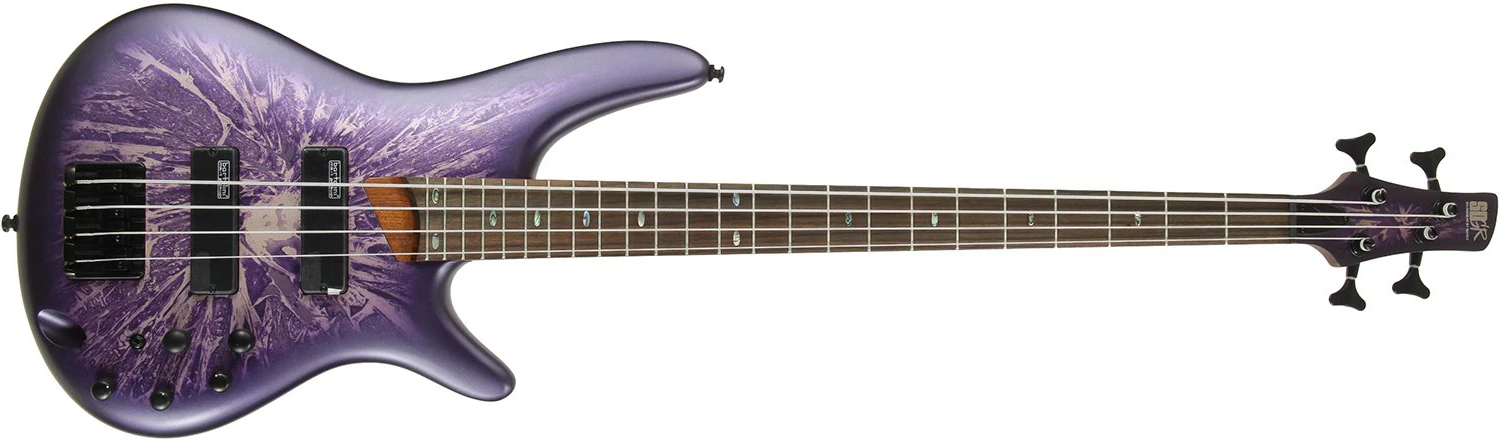

SR500B VAT
Ibanez SR500B Violet Arctic Frost Matte (VAT) Red copyright sprite
Finishes made for the Ikebe Gakki musical instrument stores

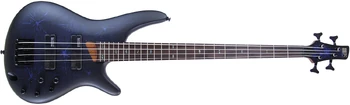

SR500B BAT
Blue Arctic Frost Matte

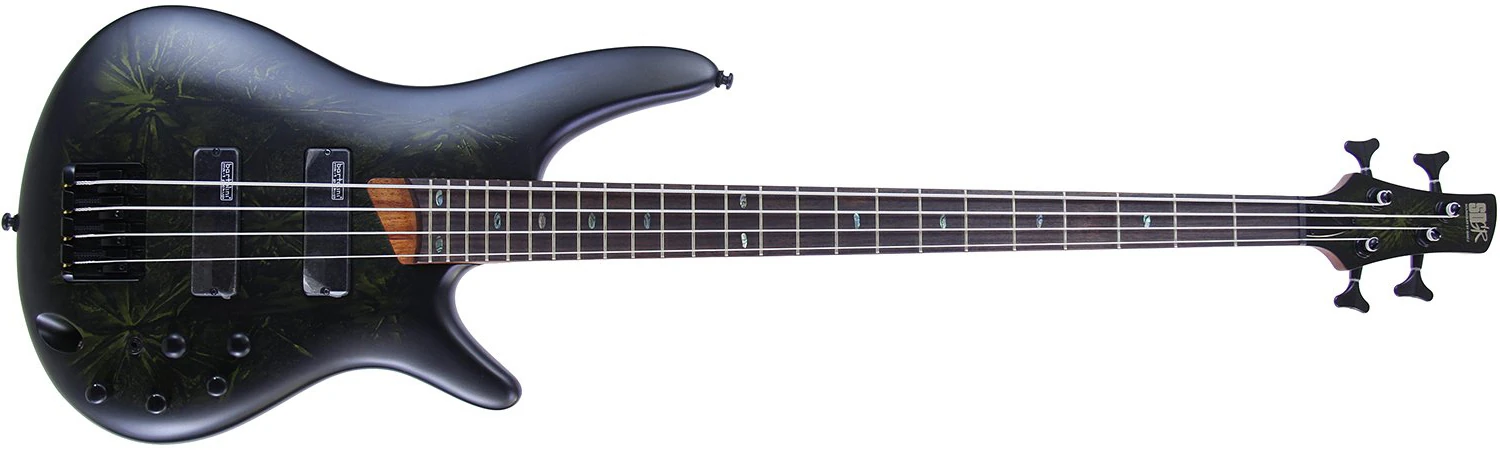

SR500B GAT
Green Arctic Frost Matte

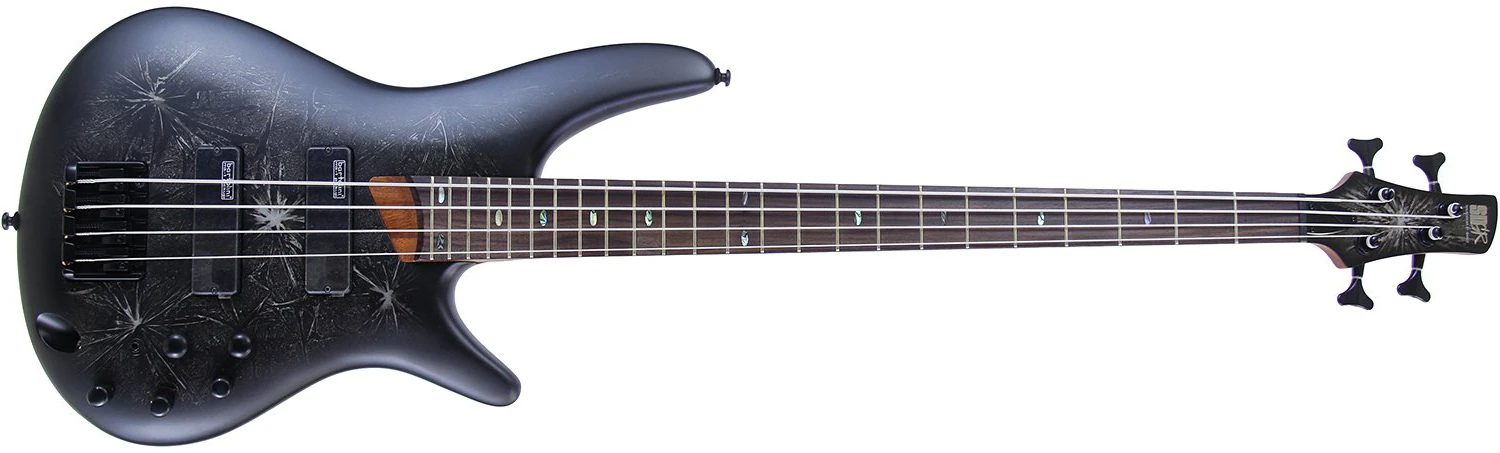

SR500B SAT
Silver Arctic Frost Matte
Additional details
Controls SR-Prestige
Controls layout

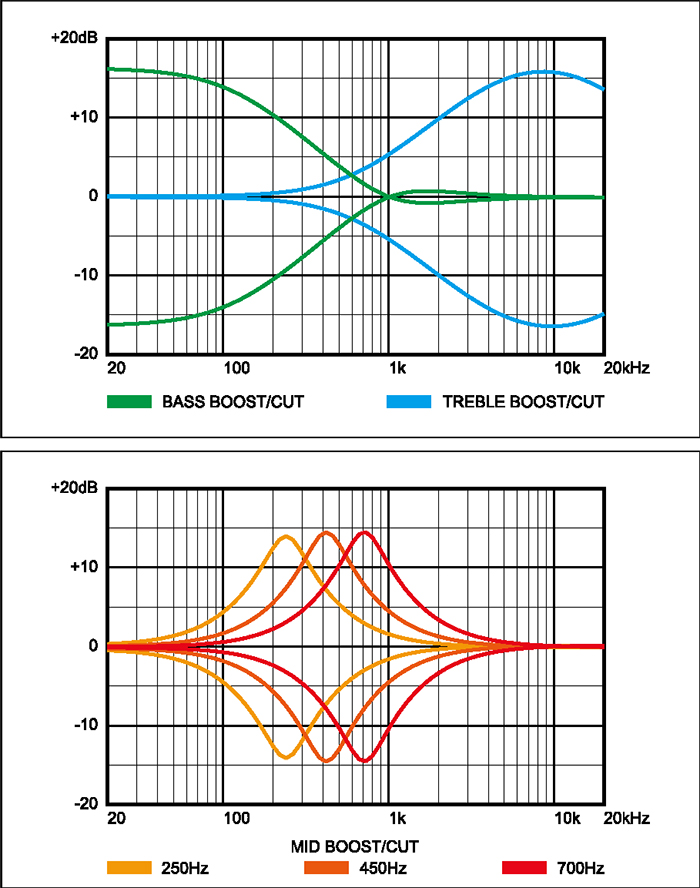

SR-Prestige frequency response charts
EQ frequency response
