SR406EBCW

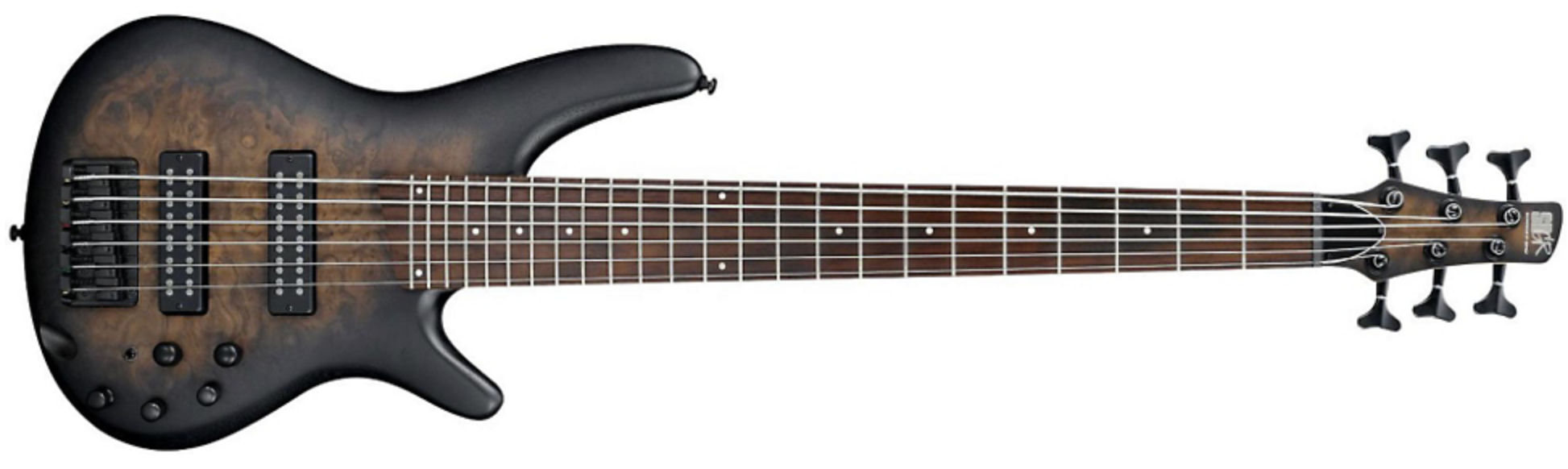

SR406EBCW Natural Gray Burst Flat (more images)

The SR406EBCW is a six string Soundgear series solid body electric bass model introduced by Ibanez in 2016. It is produced in Indonesia as part of the standard line. It replaced the SR406BCW.

The SR406EBCW features a claro walnut top on a double-cutaway mahogany body bolted to a maple and rosewood neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez PowerSpan passive pickups fed through an Ibanez custom preamp with a Power Tap switch and a three-band EQ, an Accu-cast bridge with 16.5mm string spacing, a plastic nut, and Ibanez die-cast tuning machines.

The SR400EBCW and SR405EBCW are four and five string versions, respectively.

Specifications

Related content: Soundgear series |

Specifications for SR406EBCW

Model name: SR406EBCW Year(s) offered: 2016 Sold in: USA Made in: Indonesia Price: MSRP: US$733.32 (2016) • SMAP: US$549.99 (2016) Finish(es): Natural Gray Burst Flat (NGF)
Body Body type: Solid body Body material: Mahogany w/ claro walnut top Neck joint: AANJ Bridge: Accu-cast B306 fixed (16.5mm string spacing) Strap buttons: Standard metal button Knob style: Knurled metal dome Hardware color: Black	Neck Neck type: SR6 Neck material: 5-piece maple/ rosewood Scale length: 864mm / 34" Fingerboard material: Rosewood Fingerboard inlays: White dot Frets: 24 / medium nickel silver Nut: Black plastic (54mm) Machine heads: Ibanez die-cast String gauge (factory): .032/.045/.065/.085/.105/.130 Factory tuning: 1C,2G,3D,4A,5E,6B (B Std.)	Electronics/ case Pickup configuration: HH Bridge pickup: Ibanez PowerSpan Dual Coil passive Neck pickup: Ibanez PowerSpan Dual Coil passive Electronics: Ibanez Custom Electronics 3-band EQ w/ 3-way Power Tap switch Controls: Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way Power Tap toggle Battery: 9V Output jack: ¼" stereo barrel (angled face mount) Recommended case: W100SR

About this table

Images

Additional details

Controls layout

EQ frequency charts

Sources

• SR406EBCW-NGF (1P-01) parts list, Ibanez parts catalog, archived January 2026
• SR406EBCW product page, Ibanez USA, archived October 2016
