SR406-BK

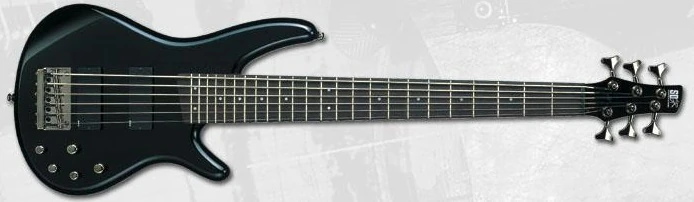

SR406 Black (more images) Red copyright sprite

The SR1016 is a six-string Soundgear series solid body electric bass model introduced by Ibanez for 1997. It was produced in South Korea by Cor-Tek as part of the Standard line.

The SR406 features a double-cutaway light american maple body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and a black headstock. Components include a pair of IBZ ADX6-N/B (active) pickup's on the neck and bridge positions, a Die-cast 6 strings fixed bridge with 10.8mm string spacing, an active Vari-mid 3-band EQ, Die-cast machine heads and cosmo black hardware.

The SR400 is a related four string model. The SR405 is a related five-string model.

The SR406 was discontinued after 2003.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR406
Model name: SR406
Year(s) offered: 1997-2003
Sold in: USA 1997-2002 / Europe 1999-2000 / Japan 2003
Made in: South Korea
Price: MSRP: US$ 799.99 (1997-2001) / JP¥ 80,000 (2003)
Finish(es): Black (BK) / Natural (NT) 1998-2002 USA only
Body
Body type:
Solid body
Body material:
1997-2002: Light American maple (USA)
1999-2003: Maple (Europe & Japan)
Neck joint:
AANJ
Bridge:
1997-2002: Die-cast 6-string
2003: B106 (Japan) (10.8mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR6
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dots
Frets:
24 / medium
Nut:
Plastic (black) (54mm)
Machine heads:
Die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
1997-1998: IBZ ADX6B active
1999-2003: IBZ DX6B
Neck pickup:
1997-1998: IBZ ADX6N active
1999-2003: IBZ DX6N
Electronics:
1997-1998: Vari-mid 3-band EQ active
1999-2003: EQB III
Controls:
Volume / Balancer / EQB-3
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

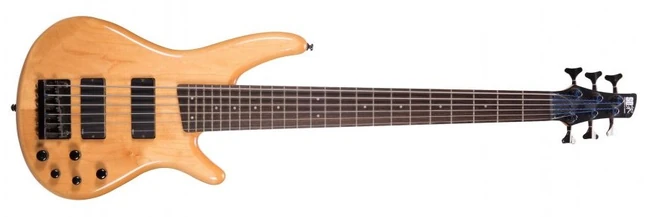

SR406-NT
Ibanez SR406-NT Natural (1998-2002 US market only) Red copyright sprite
