2007 SR405QM CNB 1P 01

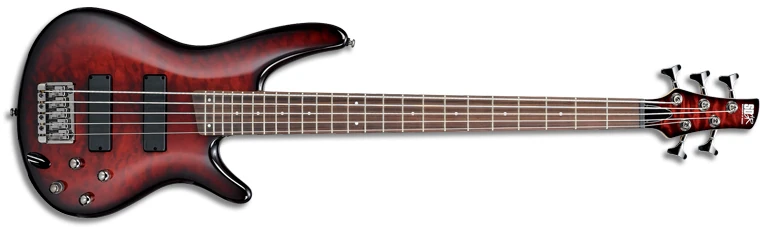

SR405QM Charcoal Brown Burst (more images) Red copyright sprite

The SR405QM is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2007. It was initially produced in Indonesia; production moved to China for 2011 and returned to Indonesia for 2013. It was part of the standard line.

The SR405QM features a quilted maple top on a double-cutaway basswood body bolted to a laminated maple neck with a 24-fret rosewood fingerboard with pearl dot position markers. Components include a pair of Ibanez DXH passive pickups with an Ibanez Style Sweeper preamp, an Accu-cast B-25 bridge with 16.5mm string spacing, a plastic nut and Ibanez tuning machines.

For 2008 the neck was changed to a five piece maple and rosewood construction and the pickups were changed to Ibanez EXF-5s. For 2012 the body material was changed to mahogany (retaining the quilted maple top), the bridge was swapped for the new Accu-Cast B305, the pickups were again changed to Ibanez CAP EXF-N2s and the preamp was changed to the EQB-IIID. For 2013 the pearl fretboard dots gave way to white acrylic dots.

The SR400QM is a similar four string model. The SR405BCW is a similar model with a claro walnut top and black hardware.

The SR405QM was replaced for 2016 with the SR405EQM, which is a similar model with different pickups.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR405QM
Model name: SR405QM
Year(s) offered: 2007–2015
Sold in: Americas & Oceania 2008–2012 / USA
Made in: Indonesia (2007–2010; 2013–2015)/ China (2011–2012)
Finish(es): Charcoal Brown Burst (CNB) / Transparent Gray Burst (TGB) 2011–2015
Body
Body type:
Solid body
Body material:
2007–2011: Basswood w/ quilted maple top
2012–2015: Mahogany w/ quilted maple top
Neck joint:
AANJ
Bridge:
2007–2011: Accu-cast B25
2012–2015: Accu-cast B305 (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Neck material:
2007: 3-piece maple
2008–2015: 5-piece maple/ rosewood
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
2007–2012: Pearl dot
2013–2015: White dot
Frets:
24 / medium nickel silver
Nut:
Plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
2007: Ibanez DXH-MB passive
2008–2011: Ibanez EXF-5-R passive
2012–2015: Ibanez CAP EXF-N2 bridge passive
Neck pickup:
2007: Ibanez DXH-MN passive
2008–2011: Ibanez EXF-5-F passive
2012–2015: Ibanez CAP EXF-N2 neck passive
Electronics:
2007–2011: Ibanez Style Sweeper
2012–2014: Ibanez EQB-IIID 3-band
2015: Ibanez Custom Electronics 3-band EQ
Controls:
2007–2011: Master volume / balancer / Style Sweeper EQ control / treble and bass (stacked)
2012–2015: Master volume / balancer / 3-band EQ (treble / mid / bass)
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional finishes/ details

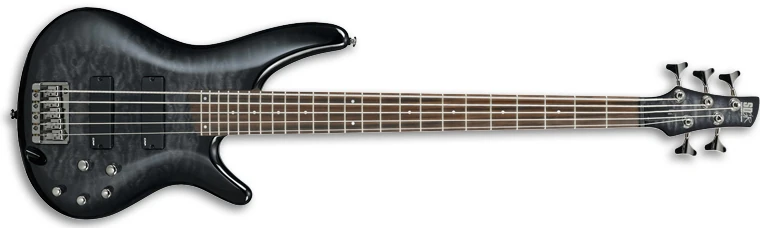

2011 SR405QM TGB 27 01
Transparent Gray Burst 2011

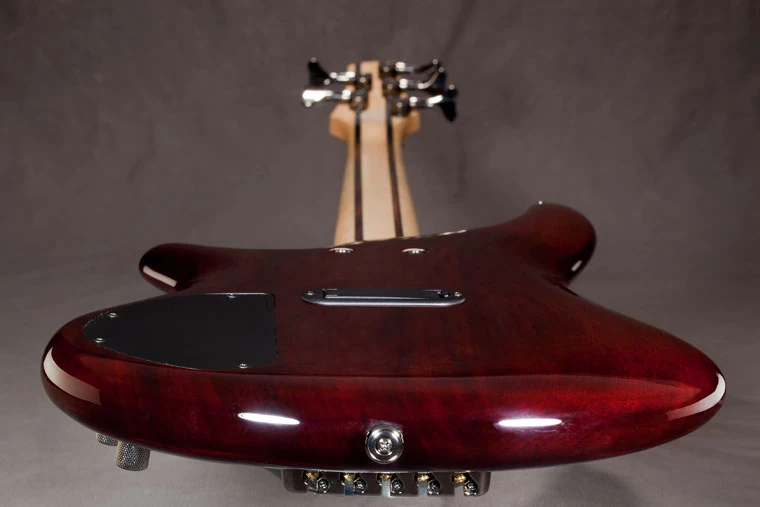

2012 SR405QM-CNB body
Arched body

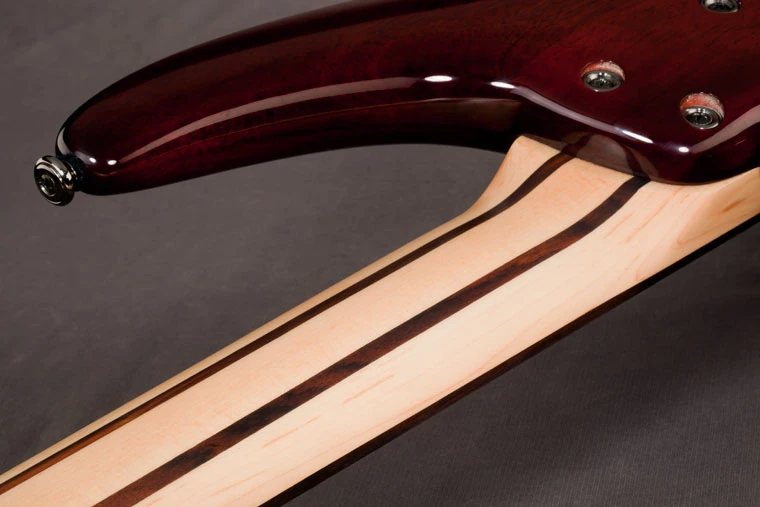

2012 SR400QM 5pc neck
Maple & rosewood neck and All-access neck joint

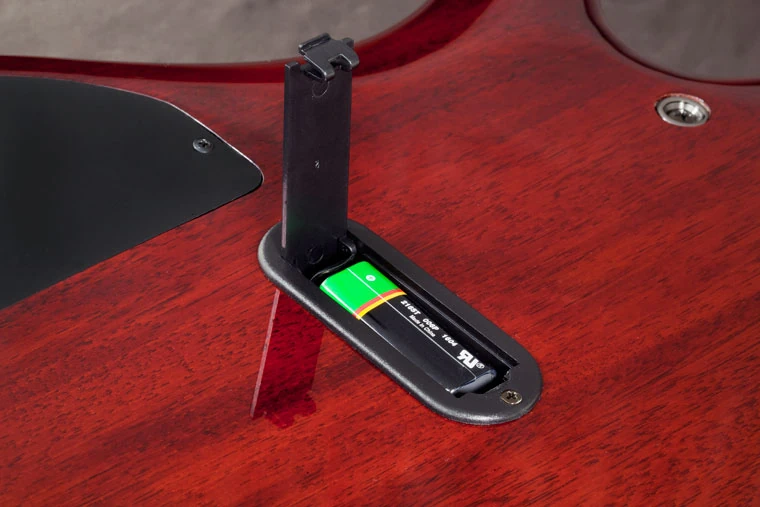

2012 SR400QM battery box
On-board 9V battery box
Controls Layout StyleSweeper SR
Controls layout 2007–2011
FreqResponseGraph StyleSweeper 2009
EQ frequency chart 2007–2011
Controls EQBIIID
Controls layout 2012–2014
FreqResponseGraph EQB-IIID
EQ frequency chart 2012–2014
Controls V-B-3-way
Controls layout 2015
Freq-resp EQBIII-SC 3-band
EQ frequency charts 2015
