2011 SR405FM-TGB

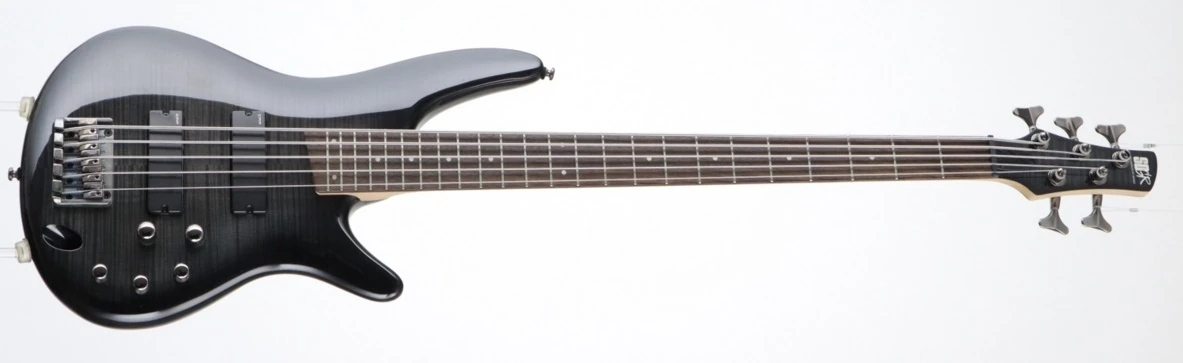

SR405FM Transparent Gray Burst "2011" (more images) Red copyright sprite

The SR405FM is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2008. It was produced in Indonesia by Cor-Tek as part of the Standard line.

The SR405FM features a double-cutaway basswood body with flamed maple top bolted to a SR5 maple and rosewood neck with a 24-fret rosewood fingerboard with pearl dot position markers and a black headstock. Components include a Accu-cast B25 fixed bridge with 16.5mm string spacing, a pair of IBZ EXF-5 pickup's channeled through an IBZ Style sweeper 3-band EQ, a plastic nut, cosmo black hardware and die-cast tuning machines.

The SR400FM is a similar four string model.

The SR405FM was discontinued after 2014.


Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR405FM
Model name: SR405FM
Year(s) offered: 2008-2014
Sold in: Japan
Made in: Indonesia
Price: MSRP: JP¥75,000 (2008-2014)
Finish(es): Charcoal Brown Burst (CNB) 2011-2013 / Transparent Gray Burst (TGB) / Transparent Red Burst (TRB) 2013-2014
Body
Body type:
Solid body
Body material:
Basswood w/ flamed maple top
Neck joint:
AANJ
Bridge:
"2008-2011": Accu-cast B25
"2012-2014": Accu-Cast B300 (16.5mm string spacing)
Knob style:
Plastic black
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Neck material:
5-piece maple/ rosewood
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
"2008-2010": IBZ EXF-5 bridge
"2011-2014": CAP EXF N2 bridge
Neck pickup:
"2008-2010": IBZ EXF-5 neck
"2011-2014": CAP EXF N2 neck
Electronics:
"2008-2010": IBZ Style sweeper 3-band EQ
"2011-2014": EQB-IIID 3-band EQ
Controls:
"2008-2010": Master volume / balancer / Style Sweeper control / treble and bass (stacked)
"2011-2014": Single volume / Balancer / 3-band eq (treble, mid & bass boost/cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Other Available finishes

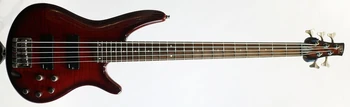

2012 SR405FM-CNB
Charcoal Brown Burst

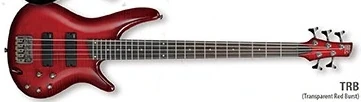

2013 SR405FM-TRB
Transparent Red Burst
