2019 SR405EQM DEB 1P 02 en 1

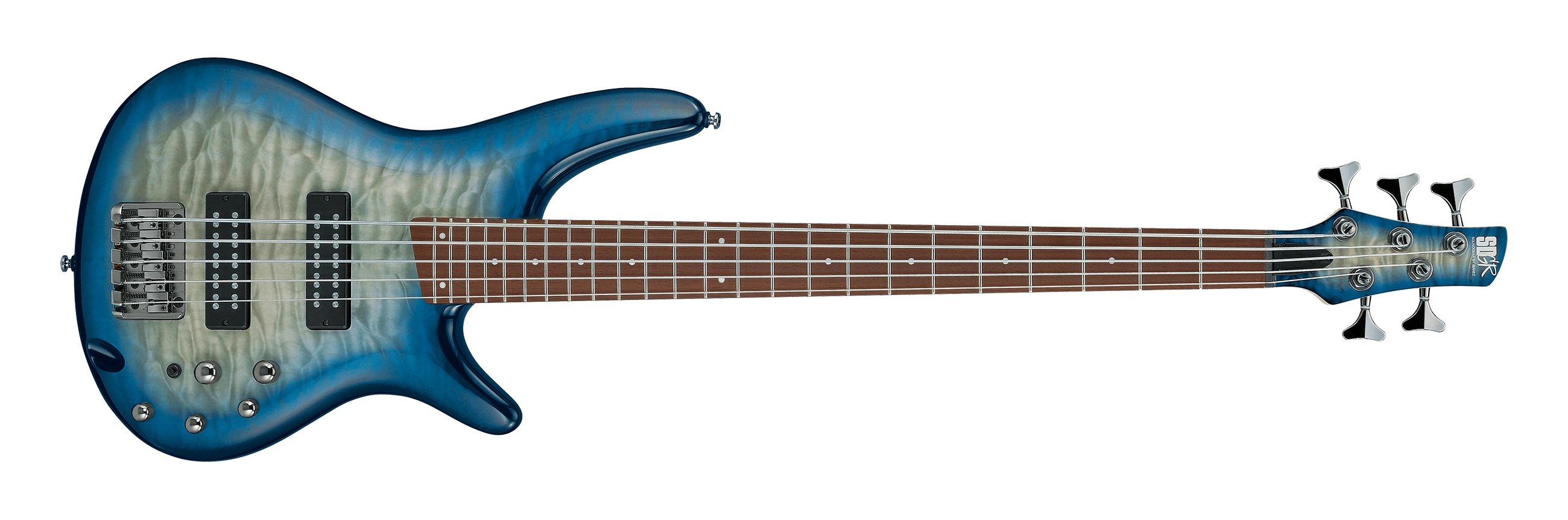

SR400EQM Dragon Eye Burst (more images) Red copyright sprite

The SR405EQM is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2016. It is made in Indonesia as part of the standard line. It replaced the SR405QM.

The SR405EQM features a quilted maple top on a double-cutaway mahogany body bolted to a maple and rosewood neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez PowerSpan passive pickups channeled through an Ibanez custom preamp with a Power Tap switch and a three-band EQ, an Accu-cast bridge with 16.5mm string spacing, a plastic nut, and Ibanez tuning machines.

For 2018 the maple and rosewood neck was replaced with maple and walnut and the rosewood fingerboard was replaced with jatoba. For 2019, the mahogany body was replaced with nyatoh.

The SR400EQM is a four string version. The SR405EMQM is a similar model with a maple fretboard. The SR405EBCW is a similar model with a claro walnut top and black hardware.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR405EQM
Model name: SR405EQM
Year(s) offered: 2016–2025
Sold in: Americas & Oceania 2016–2021; 2025 / Asia & Africa 2016–2021; 2025 / China 2016–2021; 2025 / Europe 2016–2021; 2025 / Japan 2016–2021 / USA
Made in: Indonesia
Price: MSRP: US$666.65 (2016)[1] / JP¥ 85,000 (2017)[2] / US$706.65 (2024)[3] • SMAP: US$529.99 (2024)[3]
Finish(es): Dragon Eye Burst (DEB) / Sapphire Blue (SPB) 2017 / Stained Cosmic Blue Starburst (SCB) 2025 / Surreal Black Burst Gloss (SKG) 2020–2021 / Surreal Blue Burst Gloss (SLG) 2017–2024 / Transparent Gray Burst (TGB) 2016
Body
Body type:
Solid body
Body material:
2016–2018: Mahogany w/ quilted maple top
2019–2025: Nyatoh w/ quilted maple top
Neck joint:
AANJ
Bridge:
Accu-cast B305 fixed (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Neck material:
2016–2017: 5-piece maple/ rosewood
2018–2025: 5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
2016–2017: Rosewood
2018–2025: Jatoba
Fingerboard inlays:
White dot
Frets:
24 / medium nickel silver
Nut:
Plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Ibanez PowerSpan Dual Coil bridge passive
Neck pickup:
Ibanez PowerSpan Dual Coil neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/ 3-way Power Tap switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way Power Tap toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130 (D'Addario EXL165 + .130)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Other available finishes

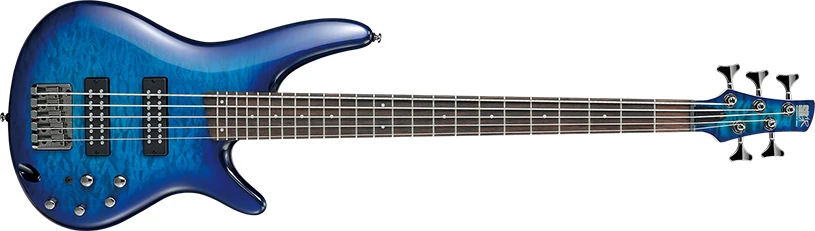

2017 SR405EQM SPB 1P 01
Sapphire Blue

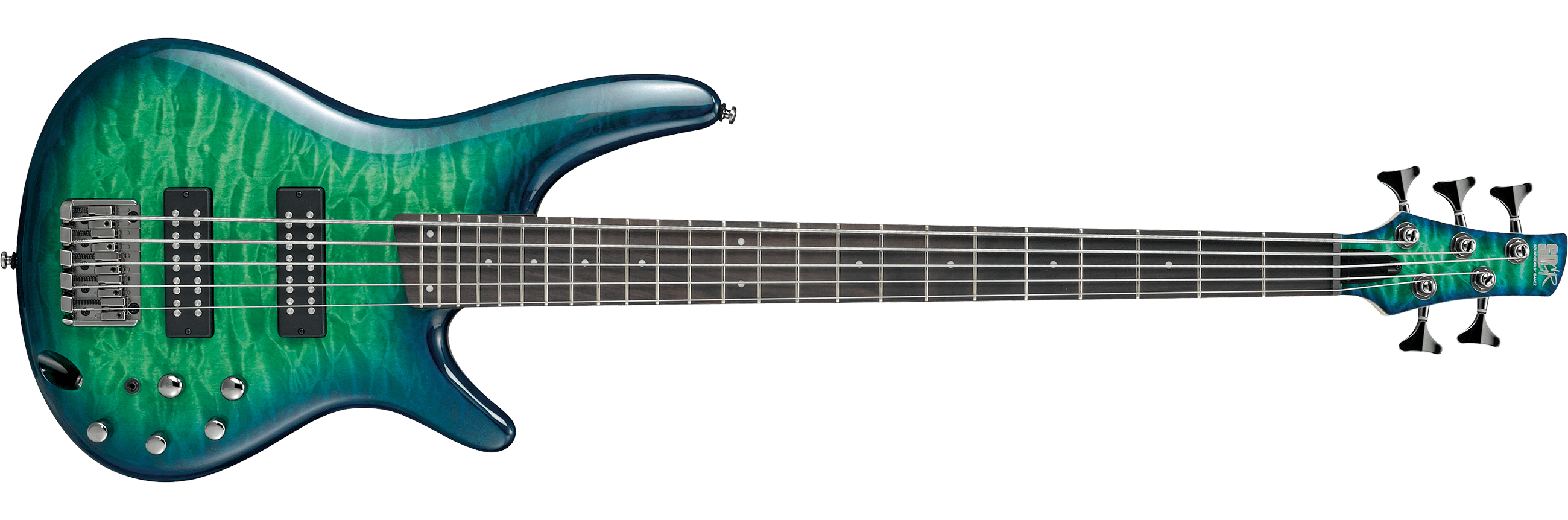

2025 SR405EQM SCB
Stained Cosmic Blue Starburst

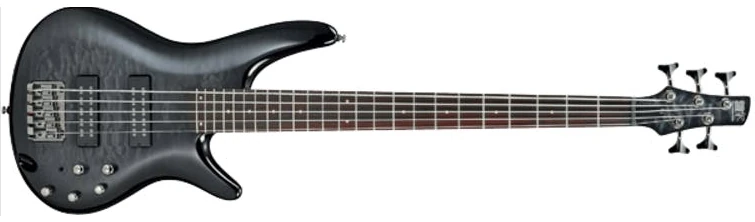

2020 SR405EQM SKG 1P 02
Surreal Black Burst Gloss
2019 SR405EQM SLG 1P 02
Surreal Blue Burst Gloss
2016 SR405EQM TGB
Transparent Gray Burst
Additional details
Controls SR-PowerTap
Controls layout
SR-Prestige frequency response charts
EQ frequency charts

Sources[]

  1. 2016 USA new product book (p. 18)
  2. 2017 Japan catalog (p. 56)
  3. 3.0 3.1 SR405EQM product listing, American Musical Supply (US retailer), archived March 2024
