2013 SR4005E SOL 00 01
SR4005E Stained Oil 2013 (more images) Red copyright sprite

The SR4005E is a five string Soundgear series solid body electric bass model introduced by Ibanez in 2009. It was made in Japan by FujiGen as part of the upscale Prestige line.

The SR4005E features a double-cutaway mahogany body bolted to a wenge and bubinga neck with a 24-fret wenge fingerboard with white pearl oval position markers and a rosewood headstock. Components include a pair of USA-made Bartolini Custom soapbar humbucking pickups feeding a Power Curve III preamp with 3-band EQ, individually mounted Mono-rail IV fixed bridges with 16.5mm string spacing, a Graph TUSQ XL nut, and Gotoh tuning machines.

Controls consist of a single volume; a balancer; a 3-band EQ allowing individual boost or cut of up to 12dB for treble, midrange, and bass; a Mid-Q control to adjust the midrange crossover points; and a toggle to bypass the preamp and send the signal from the pickups directly to the ¼" output.

For 2010 it got the new Atlas-5 HP neck with KTS titanium reinforcing rods. The knobs were changed for 2014.

The SR4000E and SR4006E are four string and six string versions, respectively. The SR5005E is a similar model with a wenge front and back. The SR4505E is a related model with an ash body and a maple fretboard.

The SR4005E was discontinued after 2014.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR4005E
Model name: SR4005E
Year(s) offered: 2009–2014
Sold in: USA
Made in: Japan
Price: MSRP: US$2,133.32 (2009)[1] / US$2,533.32 (2013)[2] • SMAP: US$1,599.99 (2009)[1] / €1,399.00 (2010 - Italy)[3] / US$1,899.99 (2013)[2]
Finish(es): Stained Oil (SOL) 2012–2014 / Stained Red (SDR) 2009–2011 / Transparent Black Flat (TKF) 2009–2011
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Mono-rail IV (16.5mm string spacing)
Knob style:
2009–2013: Beehive-style rubber tek grip (volume & balancer) & B15 plastic (EQ)
2014: B20 plastic (volume & balancer) & B15 plastic (EQ)
Hardware color:
cosmo black
Neck
Neck type:
2009: SR5 Prestige
2010–2014: Atlas-5 HP
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
White pearl oval w/ dots at 12th and 24th frets
Frets:
24 / medium nickel silver
Nut:
Graph Tech Black TUSQ XL (45mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini Custom 5 neck soapbar (H) passive
Neck pickup:
Bartolini Custom 5 bridge soapbar (H) passive
Electronics:
Ibanez Power Curve III 3-band
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / "Mid Q" control / EQ bypass toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130 Elixir
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Other finishes

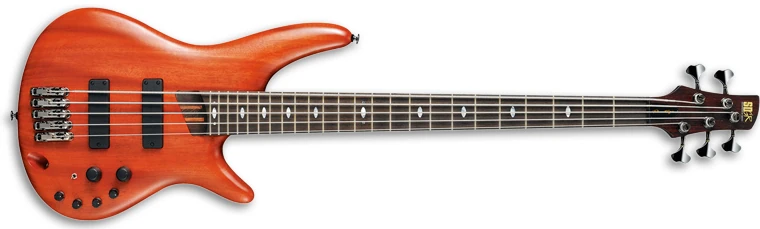

2009 SR4005E SDR 00 01
Stained Red

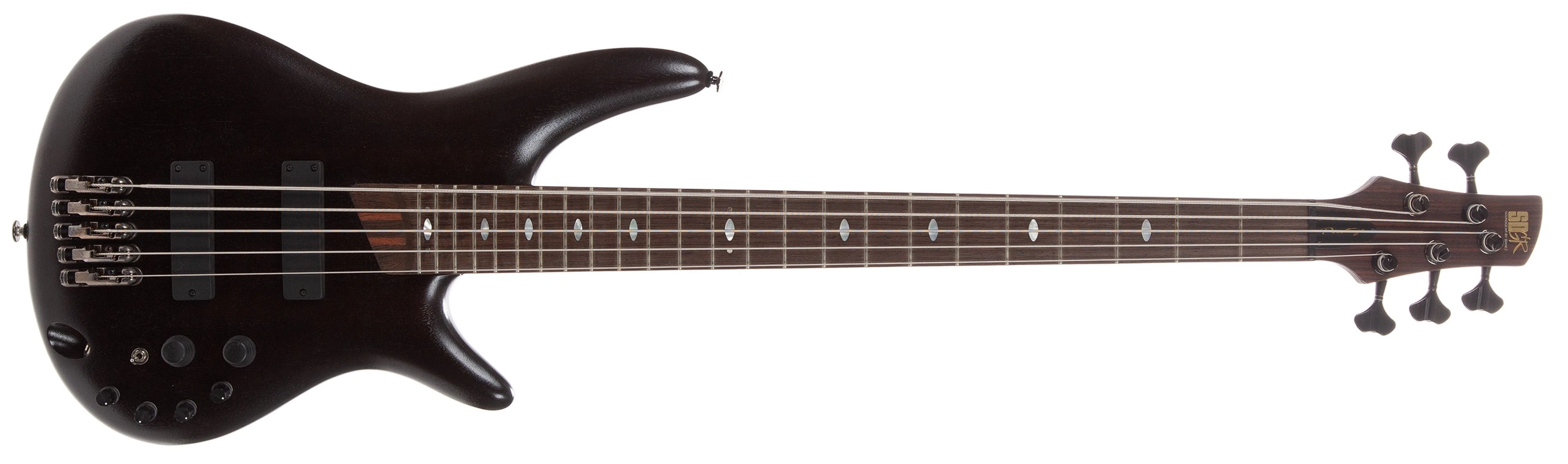

2009 SR4005E TKF 00 01
Transparent Black Flat
Additional details
2009 SR4005 Thin-Body
Sleek mahogany body

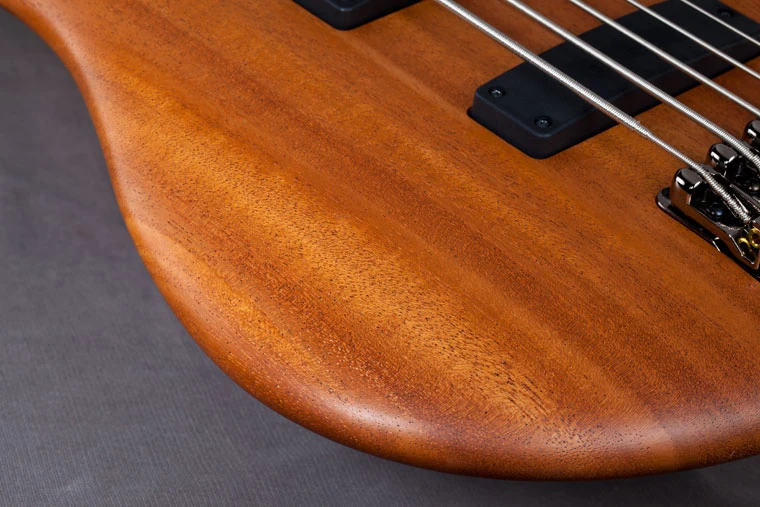

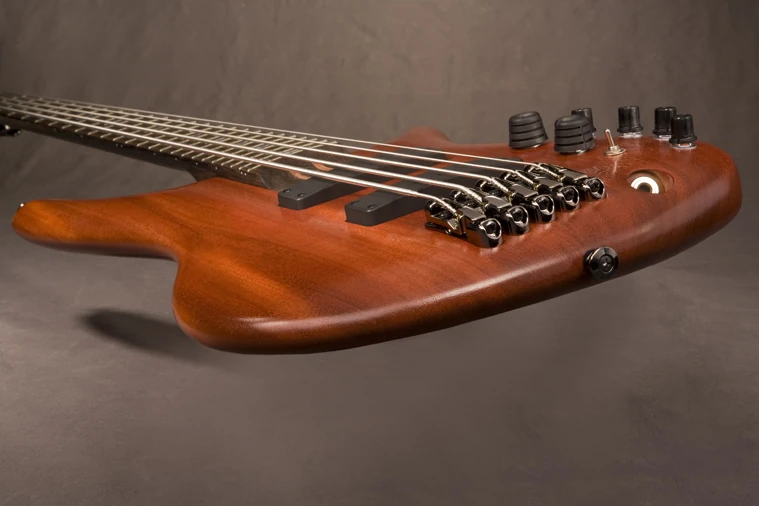

2012 SR4005ESOL Body
Mahogany body
SR5000EOL Mono-rail-IV bridge
Mono-rail IV bridges

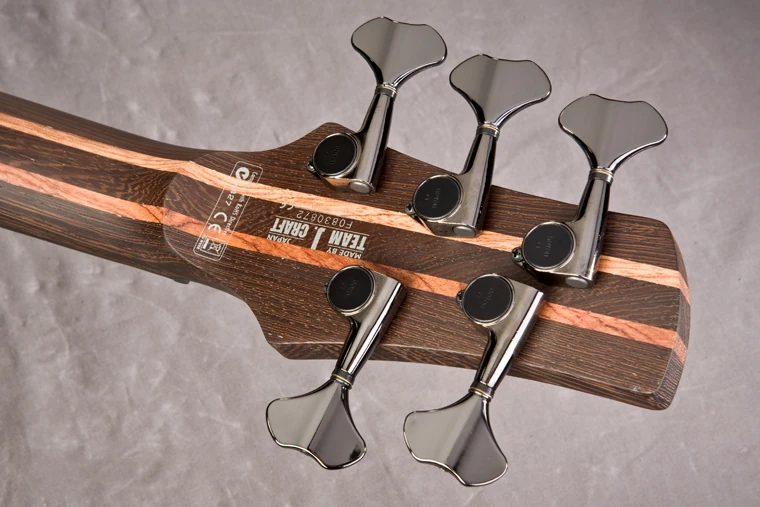

2009 SR4005ESDR gotoh machine heads
Headstock rear and Gotoh tuners

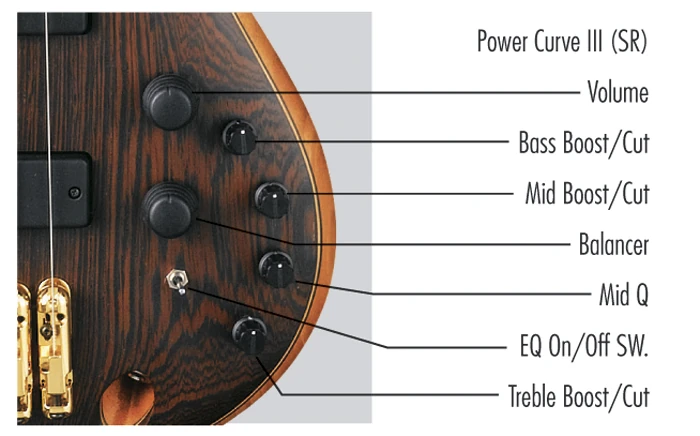

Controls PowerCurveIII SR-Prestige
Controls layout

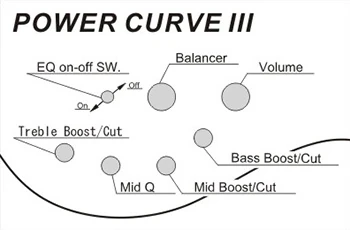

Contols PowerCurveIII diagram
Controls layout diagram

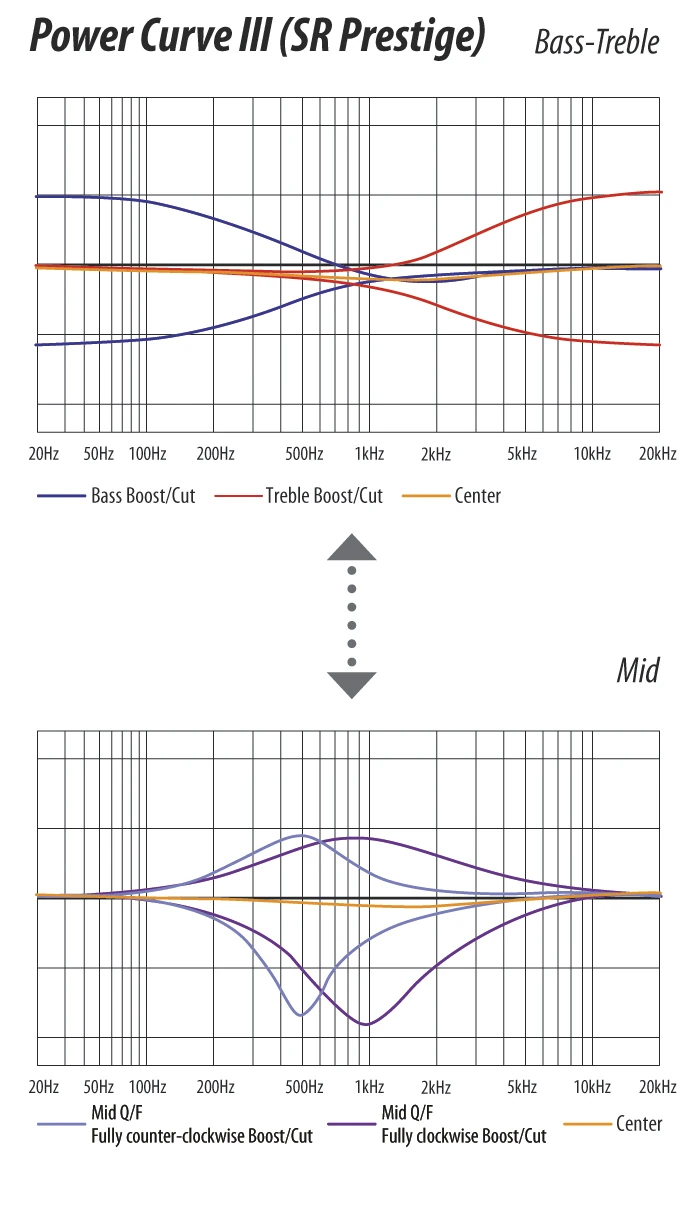

Freq-resp PowerCurveIII SR-Prestige
Frequency response (expanded)

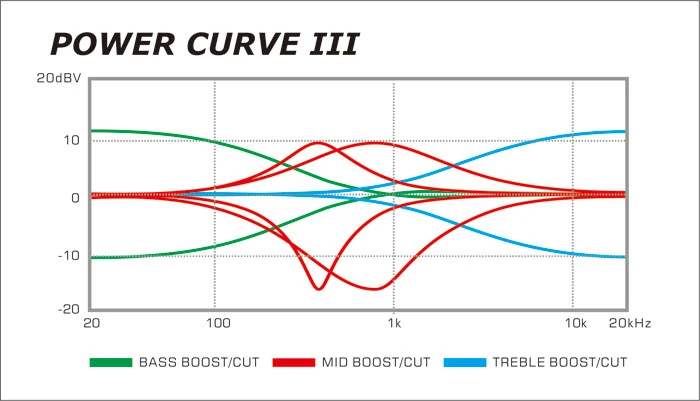

Freq-resp PowerCurveIII SR-Prestige simplified
Frequency response (simplified)
