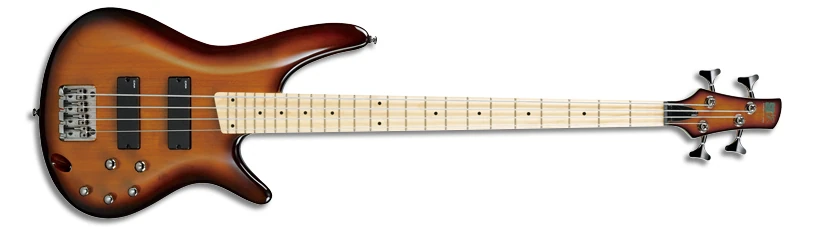

2012 SR370M BBT 1P 02
SR370M Brown Burst 2012–2013 (more images) Red copyright sprite

The SR370M is a Soundgear series solid body electric bass model introduced by Ibanez in late-2010. It was made in Indonesia as part of the standard line.

The SR370M features a double-cutaway maple body bolted to a maple and rosewood neck with a 24-fret maple fingerboard with pearl dot position markers. Components include a pair of Ibanez EXF-4 passive pickups with an Ibanez Style Sweeper preamp with two-band EQ, an Accu-cast B100 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

For 2012 the pickups were replaced with Ibanez CAP EXF-N2s, the preamp was replaced with an Ibanez EQB-IIID with three-band EQ and the bridge was switched to the new Accu-cast B120. For 2013 the pearl dot fretboard inlays gave way to white acrylic dots.

The SR375M is a similar five string model. The SR370 is a similar model with a rosewood fretboard.

The SR370M was discontinued after 2013.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR370M
Model name: SR370M
Year(s) offered: 2010–2013
Sold in: Americas & Oceania 2011–2012 / USA
Made in: Indonesia
Price: MSRP: US$533.32 (2010)[1]
Finish(es): Brown Burst (BBT)
Body
Body type:
Solid body
Body material:
Maple
Neck joint:
AANJ
Bridge:
2010–2011: Accu-cast B100
2012–2013: Accu-cast B120 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
SR4
Neck material:
5-piece maple/ rosewood
Scale length:
864mm / 34"
Fingerboard material:
Maple
Fingerboard inlays:
2010–2012: Pearl dot
2013: White dot
Frets:
24 / medium
Nut:
Plastic (38mm)
Machine heads:
Ibanez GB7 die-cast
Electronics/ Strings
Bridge pickup:
2010–2011: Ibanez EXF-4-R passive
2012–2013: Ibanez CAP EXF-N2 passive
Neck pickup:
2010–2011: Ibanez EXF-4-F passive
2012–2013: Ibanez CAP EXF-N2 passive
Electronics:
2010–2011: Ibanez Style Sweeper
2012–2013: Ibanez EQB-IIID 3-band
Controls:
2010–2011: Master volume / balancer / Style Sweeper EQ control / treble and bass (stacked)
2012–2013: Master volume / balancer / 3-band EQ (treble / mid / bass)
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes/ details

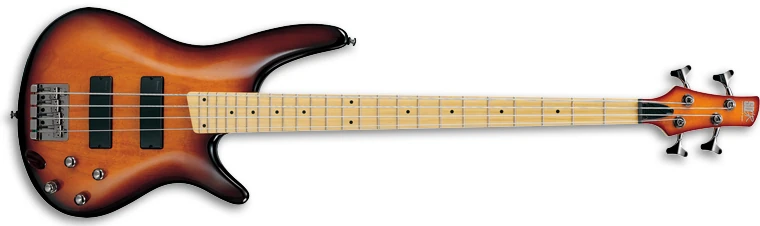

2010 SR370M BBT 1P 01
Brown Burst 2010–2011
Controls Layout StyleSweeper SR
Controls layout 2010–2011

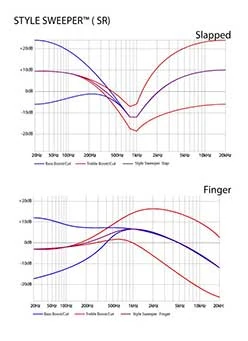

FreqResponseGraph StyleSweeper 2009
EQ frequency chart 2010–2011
Controls EQBIIID
Controls layout 2012–2013
FreqResponseGraph EQB-IIID
EQ frequency chart 2012–2013
