SR305 (2008–2015)

For other models with the same name, see SR305 (disambiguation).

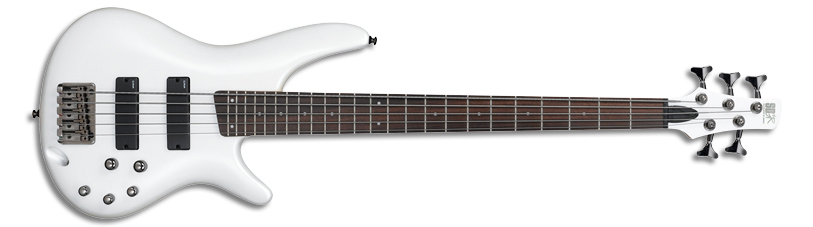

SR305 Pearl White 2012–2015 (more images)

The SR305 is a Soundgear series solid body electric bass model introduced by Ibanez in 2008. It was produced in Indonesia.

The SR305 features a double-cutaway agathis body bolted to a maple and rosewood neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of EXF-4 passive pickups, an EQB-IIIB Style Sweeper EQ and an Accu-cast B100 fixed bridge.

For 2012 the bridge was changed to an Accu-cast B120 and the EQ was swapped to the EQB-IIID. For 2015 the body was changed to mahogany.

The SR305M is a similar model with a maple fretboard. The SR300 is a five-string version. The SR305F is a fretless version. The SR300L is a left-handed version.

The SR305 was discontinued after 2015 and replaced with the SR305E.

Specifications

Related content: Soundgear series |

Specifications for SR305 (2008–2015)

Model name: SR305 (2008–2015) Year(s) offered: 2008–2015 Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA Made in: Indonesia Finish(es): Candy Apple (CA) 2011–2012 / Champagne Gold (CGD) 2015 / Iron Pewter (IPT) / Metallic Gray (MG) 2013–2014 / Moon Shadown (MW) 2008–2009 / Orange Sparkle (OSP) 2010 / Pearl White (PW) / Root Beer Metallic (RBM) 2013–2015
Body Body type: Solid body Body material: 2008–2015: Agathis 2015: Mahogany Neck joint: AANJ Bridge: 2008–2011: Accu-cast B105 fixed 2012–2015: Accu-cast B125 fixed (16.5mm string spacing) Knob style: Knurled metal dome Hardware color: Cosmo black	Neck Neck type: SR5 Neck material: 5-piece maple/ rosewood Scale length: 864mm / 34" Fingerboard material: Rosewood Fingerboard inlays: White dot Frets: 24 / medium Nut: Plastic (45mm) Machine heads: Ibanez die-cast String gauge (factory): .045/.065/.085/.105/.130 Factory tuning: 1G,2D,3A,4E,5B (E Standard)	Electronics Bridge pickup: Ibanez EXF-4 passive Neck pickup: Ibanez EXF-4 passive Electronics: 2008–2011: Ibanez Style Sweeper 2-band 2012–2015: Ibanez EQB-IIID 3-band Controls: 2008–2011: Master volume / balancer / Style Sweeper control / treble and bass (stacked) 2012–2015: Master volume / balancer / 3-band EQ (treble / mid / bass) Battery: 9V Output jack: ¼" stereo barrel (angled face mount)

About this table

Images

Additional finishes

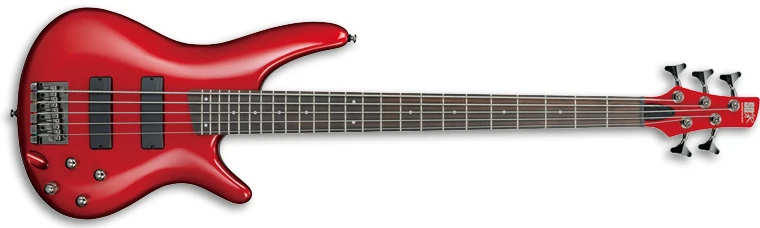

Candy Apple 2011

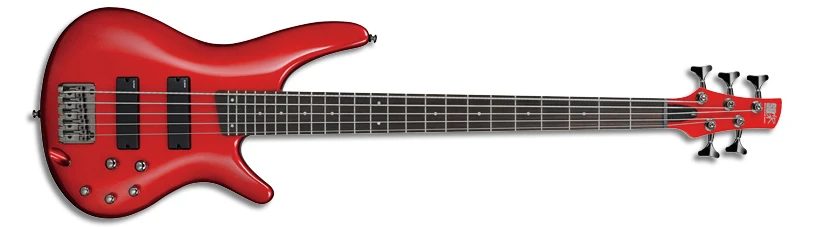

Candy Apple 2012

File:2015 SR305 CGD 1P 05.jpg

Champagne Gold

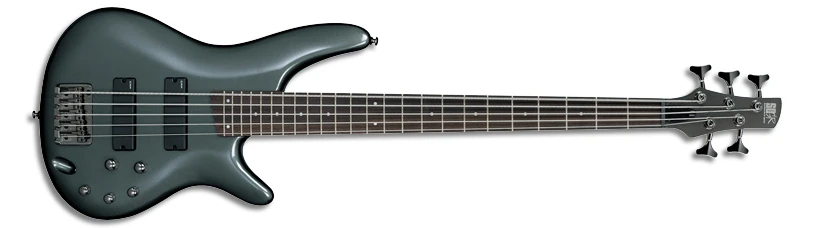

Iron Pewter 2008–2011

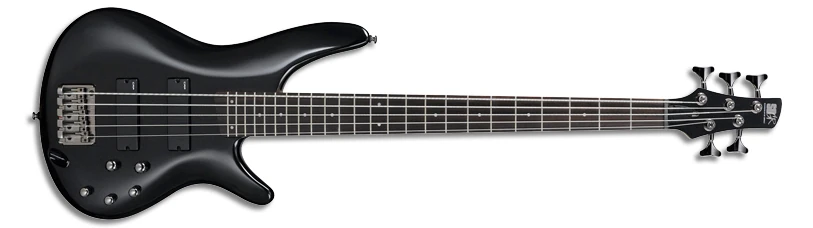

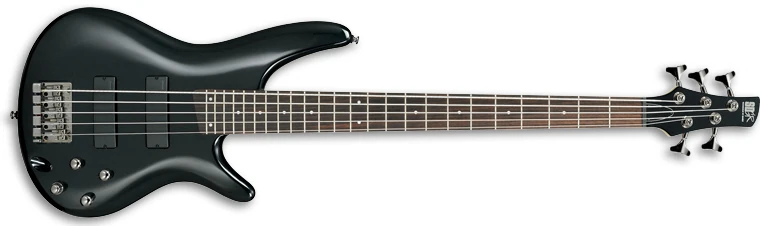

Iron Pewter 2012–2015

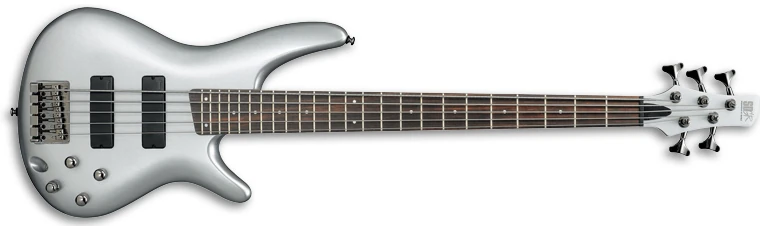

Metallic Gray

Moon Shadow

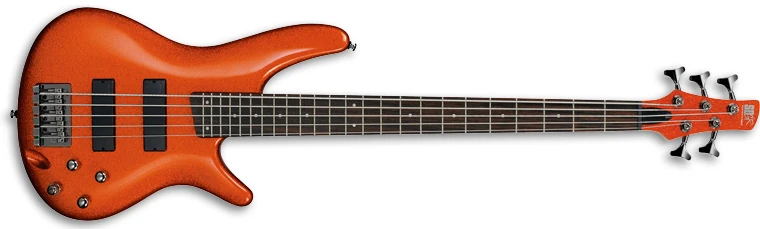

Orange Sparkle

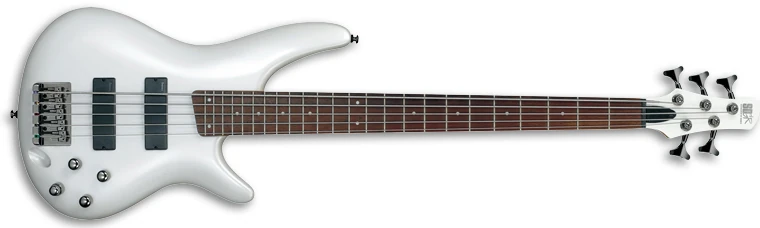

Pearl White 2008–2011

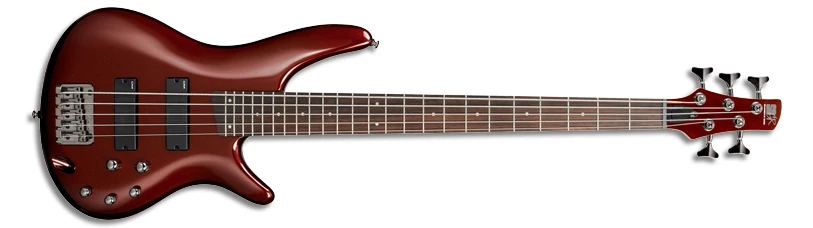

Root Beer Metallic

Details

Body back 2015

Body front 2015

Controls layout (Style Sweeper) 2008–2011

EQ frequency response (Style Sweeper) 2008–2011

Controls layout (EQB-IIID) 2012–2015

EQ frequency response (EQB-IIID) 2012–2015

An image for this article is missing! An image of the SR305 Champagne Gold (CGD) is wanted for this article. You can help by finding, uploading and adding it!

Sources

• SR305 product page, Ibanez USA, archived March 2009
• SR305 product page, Ibanez USA, archived July 2010
• SR305 product page, Ibanez USA, archived September 2011
• SR305 product page, Ibanez USA, archived July 2012
• SR305 product page, Ibanez USA, archived February 2013
• SR305 product page, Ibanez USA, archived April 2015
