For other models with similar names, see SR305 (disambiguation).

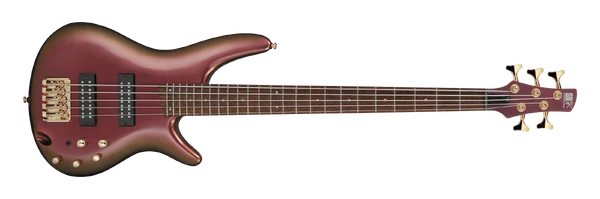

SR305EDX (2022)

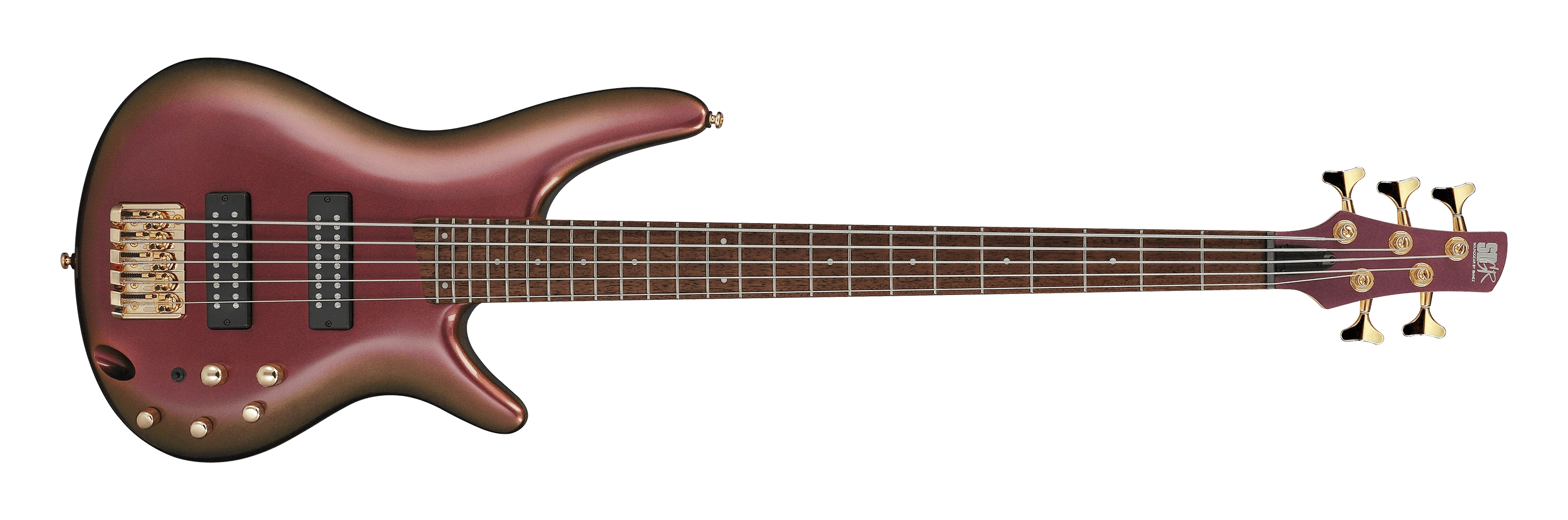

SR305EDX Rose Gold Chameleon (more images) Red copyright sprite

The SR305EDX is a five string Soundgear series solid body electric bass model introduced by Ibanez in mid 2022. It is produced in Indonesia as part of the Standard line.

The SR305EDX features a double-cutaway nyatoh body bolted to a maple and walnut SR5 neck with a 24-fret jatoba fingerboard with white dots position markers. Components include a pair of PowerSpan Dual Coil passive pickups channeled through an Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch, an Accu-cast B505 fixed bridge with 16.5mm string spacing, a plastic nut, die-cast tuning machines, and gold hardware.

The SR300EDX is a four-string version. The SR305E is a similar model with a different bridge and cosmo black hardware.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR305EDX
Model name: SR305EDX
Year(s) offered: 2022–2025
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA & Canada 2024–2025
Made in: Indonesia
Price: MSRP: 529 (2024[1]) / US$639.99 (2025)[2] • SMAP: US$479.99 (2025)[2]
Finish(es): Black Ice Frozen Matte (BZM) 2024–2025 / Cosmic Blue Frozen Matte (CZM) 2024–2025 / Rose Gold Chameleon (RGC) 2022–2023 / Wine Red Frozen Matte (WZM) 2025
Body
Body type:
Solid body
Body material:
Nyatoh w/ Gloss Polyurethane finish
Neck joint:
AANJ
Bridge:
Accu-cast B505 fixed (16.5mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Gold
Neck
Neck type:
SR5
Neck material:
5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
Jatoba
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
plastic (45mm)
Machine heads:
Die-cast
Electronics/ Strings
Bridge pickup:
PowerSpan Dual Coil bridge passive
Neck pickup:
PowerSpan Dual Coil neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way Power Tap toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.045/.065/.085/.105/.130 (D'Addario EXL165 + .130)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

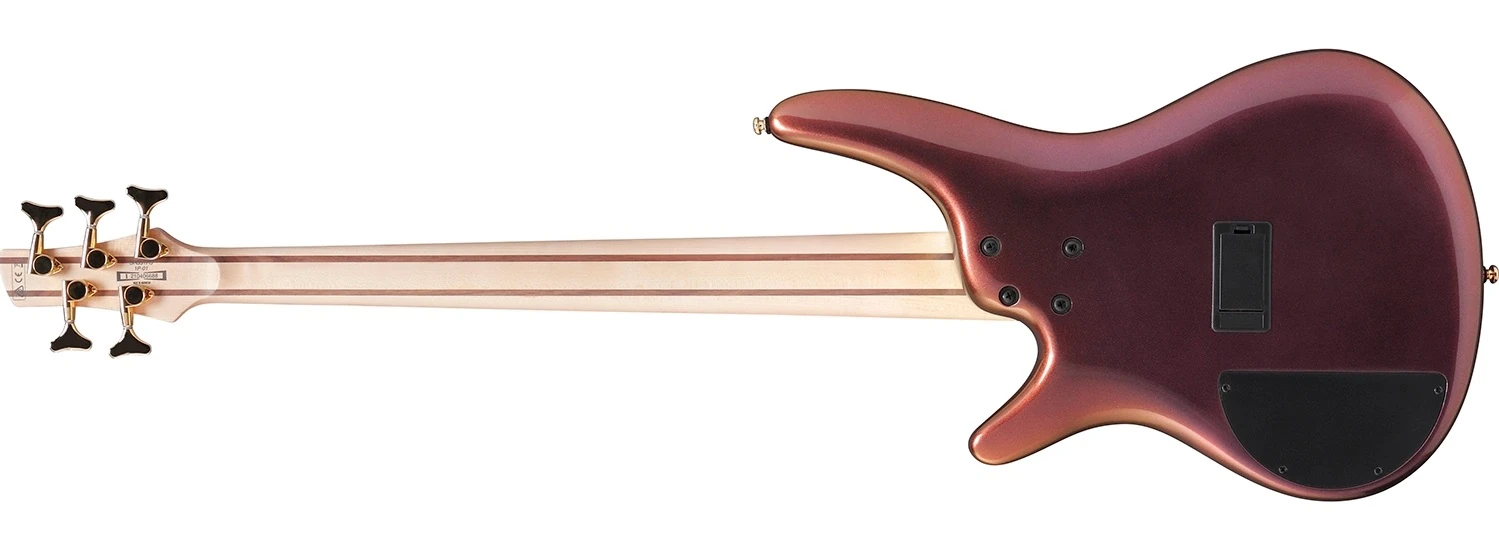

SR305EDX rear
2022 Ibanez SR305EDX ( Rear: Nyatoh body bolted to a 5-piece maple/ walnut SR5 neck and Die-cast tuners ) Red copyright sprite
Other available finishes

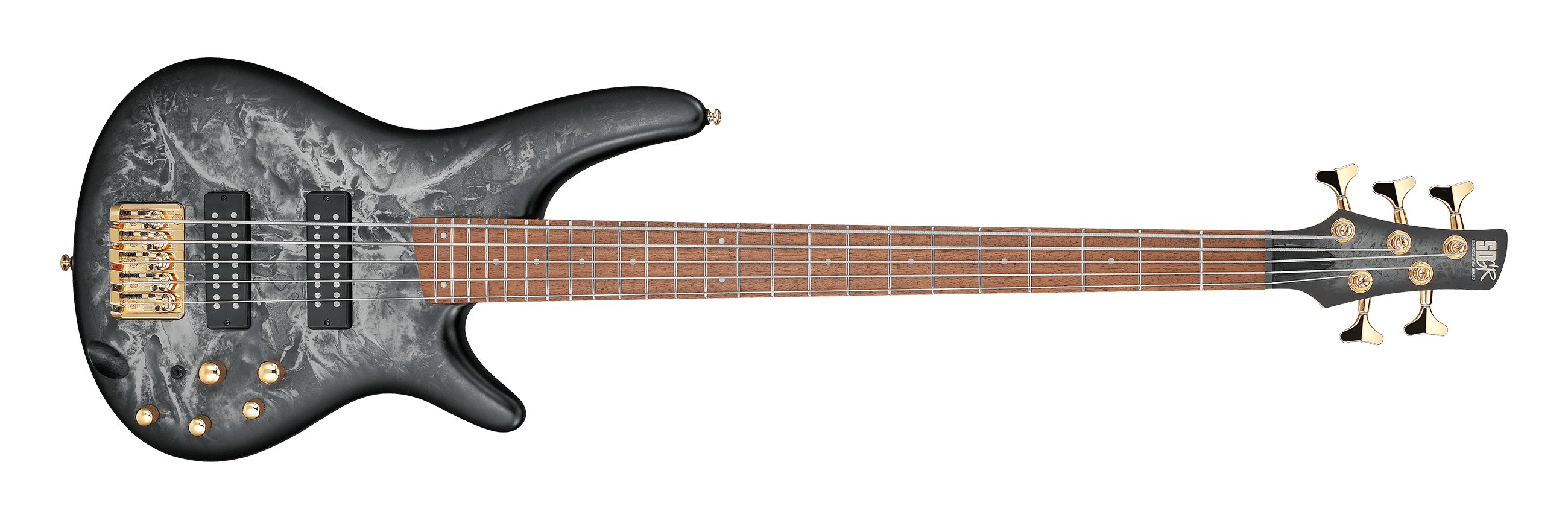

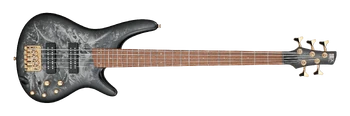

2024 SR305EDX BZM
Black Ice Frozen Matte
2024 SR305EDX CZM
Cosmic Blue Frozen Matte

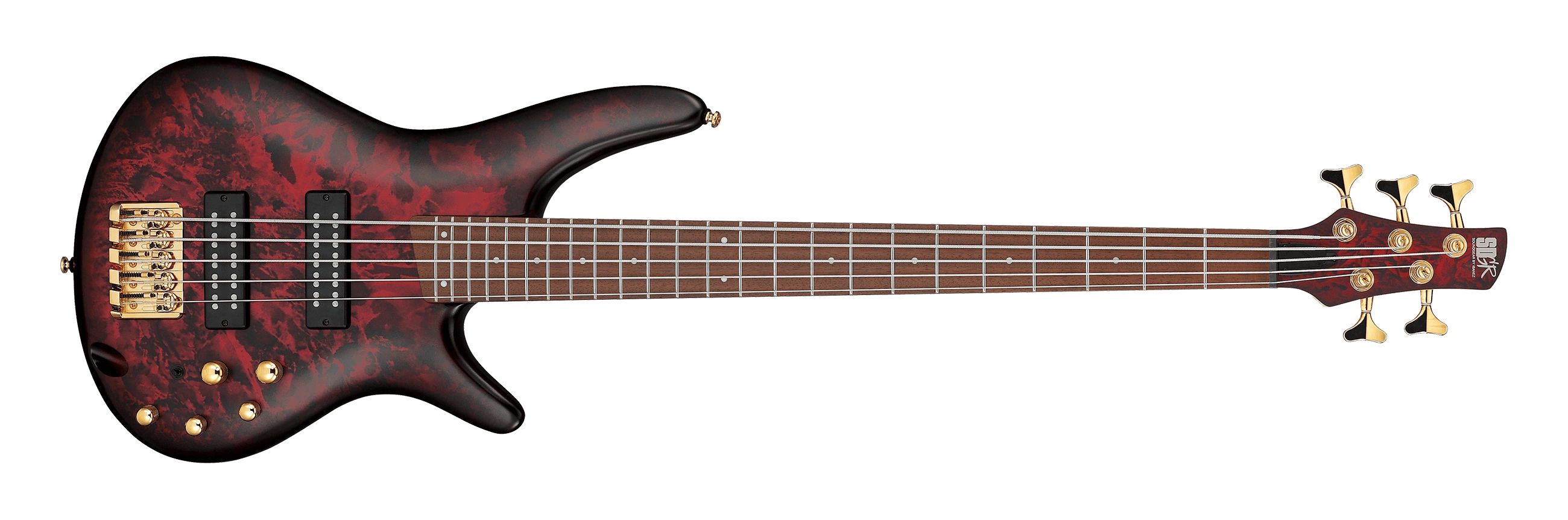

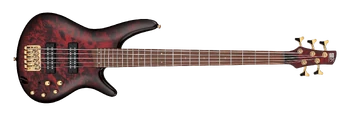

2025 SR305EDX WZM
Wine Red Frozen Matte
Additional details

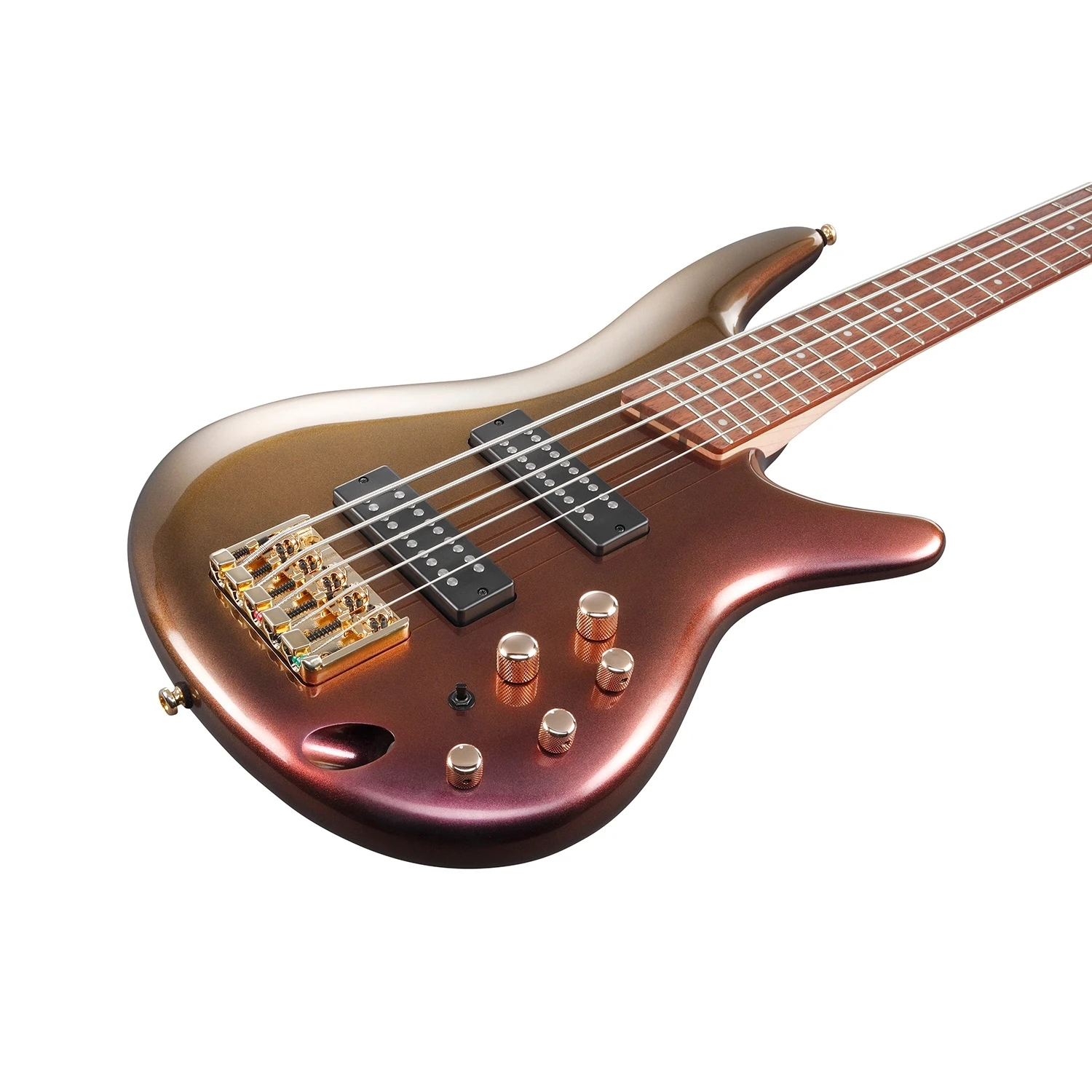

SR305EDX front
Front of body
Controls SR-PowerTap
Controls layout
SR-Prestige frequency response charts
EQ frequency response
