SR300 (2008–2015)

For other models with the same name, see SR300 (disambiguation).

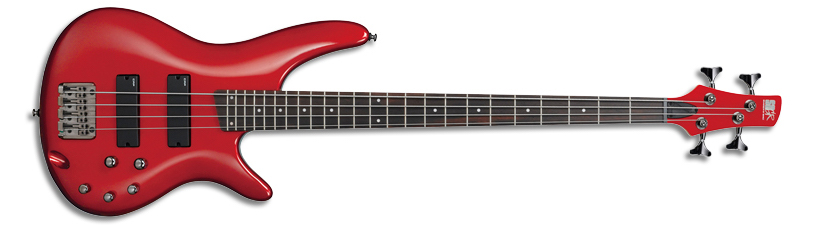

SR300 Candy Apple (more images)

The SR300 is a Soundgear series solid body electric bass model introduced by Ibanez in 2008. It was produced in Indonesia.

The SR300 features a double-cutaway agathis body bolted to a maple and rosewood neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of EXF-4 passive pickups, an EQB-IIIB Style Sweeper EQ and an Accu-cast B100 fixed bridge.

For 2012 the bridge was changed to an Accu-cast B120 and the EQ was swapped to the EQB-IIID. For 2015 the body was changed to mahogany.

The SR300M is a similar model with a maple fretboard. The SR305 is a five-string version. The SR300F is a fretless version. The SR300L is a left-handed version.

The SR300 was discontinued after 2015 and replaced with the SR300E.

Specifications[]

Related content: Soundgear series |

Specifications for SR300 (2008–2015)

Model name: SR300 (2008–2015)

Year(s) offered: 2008–2015

Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA

Made in: Indonesia

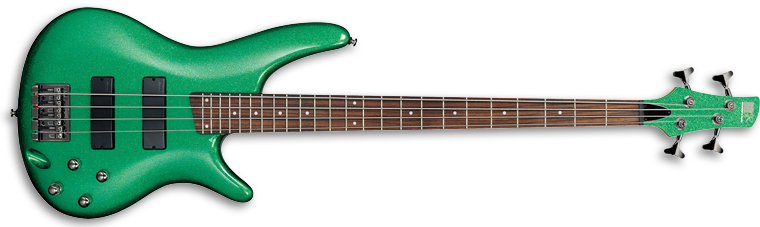

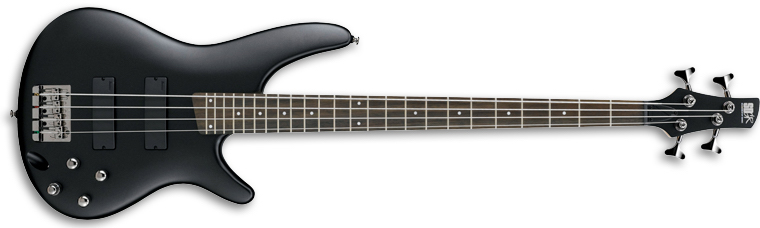

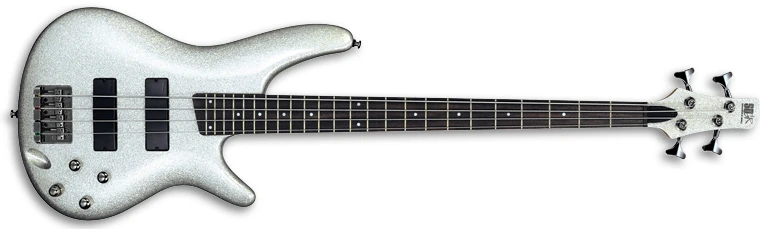

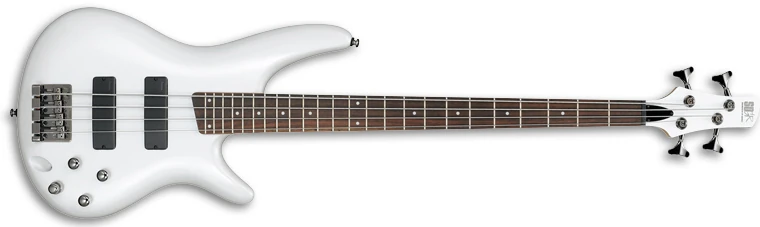

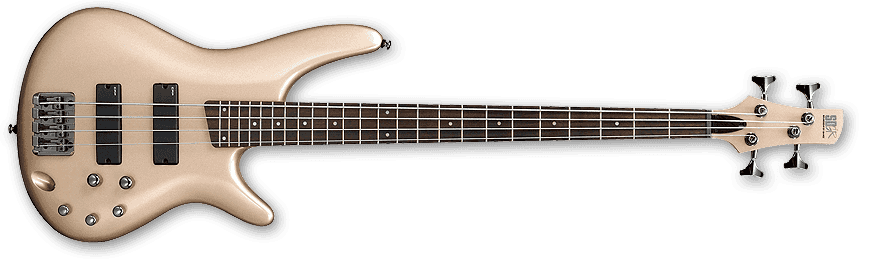

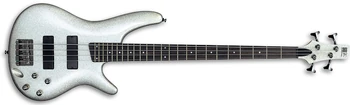

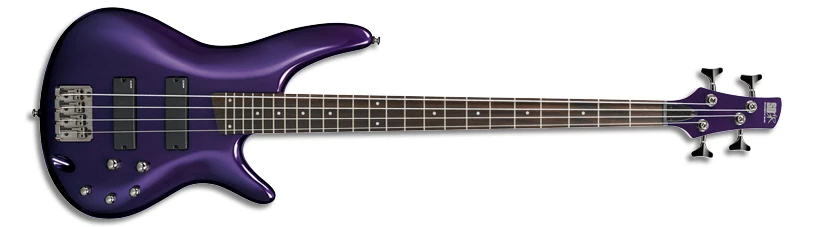

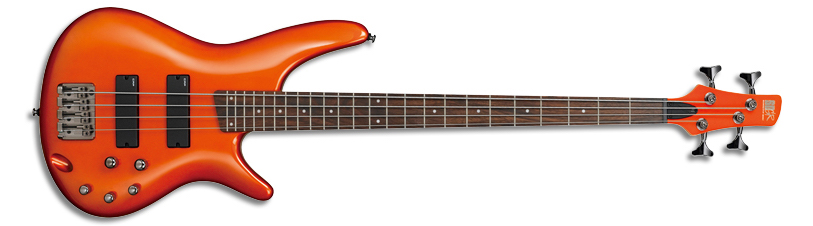

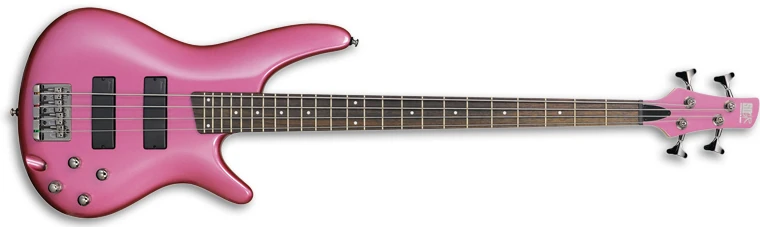

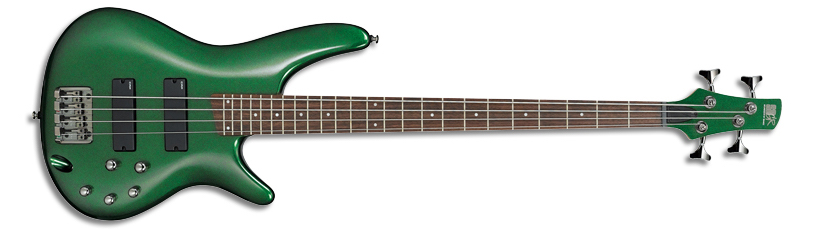

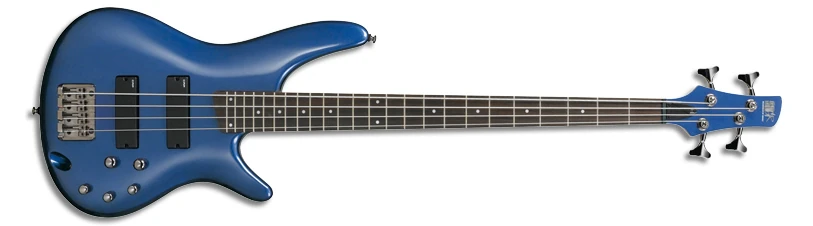

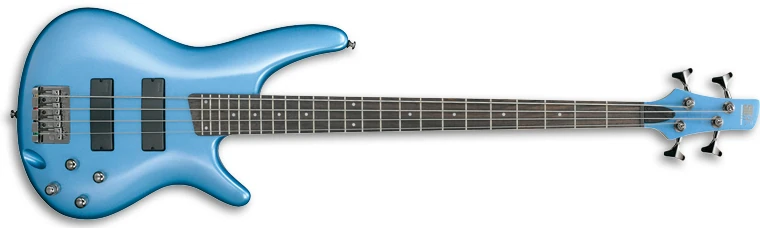

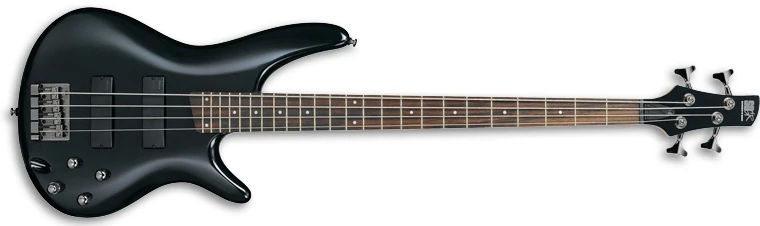

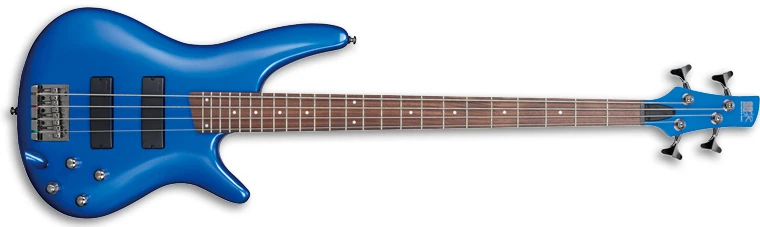

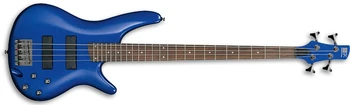

Finish(es): Blue Sparkle (BSP) 2010 / Candy Apple (CA) / Champagne Gold (CGD) 2015 / Deep Violet Metallic (DVM) 2013–2015 / Green Sparkle (GSP) 2009–2010 / Iron Pewter (IPT) / Iron Pewter Flat (IPF) 2011 / Metallic Forest (MFT) 2014–2015 / Metallic Gray (MG) 2012–2015 / Metallic Pink (MPK) 2009 / Navy Metallic (NM) 2011–2012 / Pearl White (PW) / Red Sparkle (RSP) 2009–2010 / Roadster Orange Metallic (ROM) / Root Beer Metallic (RBM) 2013–2015 / Silver Sparkle (SVP) 2010 / Soda Blue (SOB) 2010 / Starlight Blue (SLB) 2008–2012

Body

Body type:
Solid body

Body material:
2008–2015: Agathis
2015: Mahogany

Neck joint:
AANJ

Bridge:
2008–2011: Accu-cast B100 fixed
2012–2015: Accu-cast B120 fixed (19mm string spacing)

Knob style:
Knurled metal dome

Hardware color:
Cosmo black

Neck

Neck type:
SR4

Neck material:
5-piece maple/ rosewood

Scale length:
864mm / 34"

Fingerboard material:
Rosewood

Fingerboard inlays:
White dot

Frets:
24 / medium

Nut:
Plastic (38mm)

Machine heads:
Ibanez die-cast

Electronics/ Strings

Bridge pickup:
Ibanez EXF-4 passive

Neck pickup:
Ibanez EXF-4 passive

Electronics:
2008–2011: Ibanez Style Sweeper 2-band
2012–2015: Ibanez EQB-IIID 3-band

Controls:
2008–2011: Master volume / balancer / Style Sweeper control / treble and bass (stacked)
2012–2015: Master volume / balancer / 3-band EQ (treble / mid / bass)

Battery:
9V

Output jack:
¼" stereo barrel (angled face mount)

String gauge (factory):
.045/.065/.085/.105

Factory tuning:
1G,2D,3A,4E (E standard)
