2019 SR300EBL WK 1P 03
SR300EBL Weathered Black (more images) Red copyright sprite

The SR300EBL is a left-handed Soundgear series solid body electric bass model introduced by Ibanez in mid 2016. It is made in Indonesia as part of the standard line.

The SR300EBL features a double-cutaway mahogany body bolted to a maple and rosewood neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez PowerSpan passive pickups channeled through an Ibanez custom preamp with a Power Tap switch and a three-band EQ, an Accu-cast bridge with 19mm string spacing, a plastic nut, and Ibanez tuning machines.

For 2018 the maple and rosewood neck was replaced with maple and walnut and the rosewood fingerboard was replaced with jatoba. For 2019 the mahogany body was replaced with nyatoh.

The SR300EB is a right-handed version. The SR300EL is a similar model with cosmo black hardware. The SR305EBL is a five string version.

Specifications[]

Specifications for SR300EBL
Model name: SR300EBL
Year(s) offered: 2016–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: Indonesia
Price: MSRP: US$533.32 (2024)[1] • SMAP: US$399.99 (2024)[1]
Finish(es): Weathered Black (WK)
Body
Body type:
Solid body
Body material:
2016–2018: Mahogany
2019–2024: Nyatoh
Neck joint:
AANJ
Bridge:
Accu-cast B120 fixed (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
SR4
Neck material:
2016–2017: 5-piece maple/ rosewood
2018–2024: 5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
2016–2017: Rosewood
2018–2024: Jatoba
Fingerboard inlays:
White dot
Frets:
24 / medium nickel silver
Nut:
Plastic (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Ibanez PowerSpan Dual Coil bridge passive
Neck pickup:
Ibanez PowerSpan Dual Coil neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/ 3-way Power Tap switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way Power Tap toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

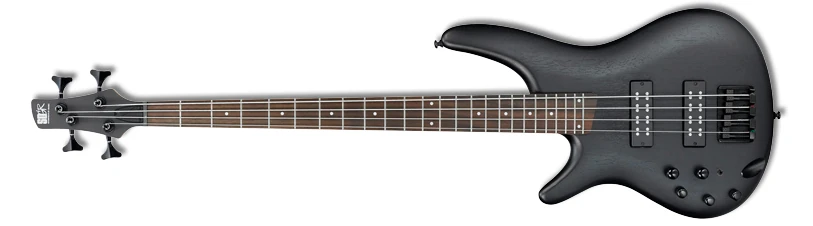

2021 SR300EBL WK 1P 03 front
Front of body

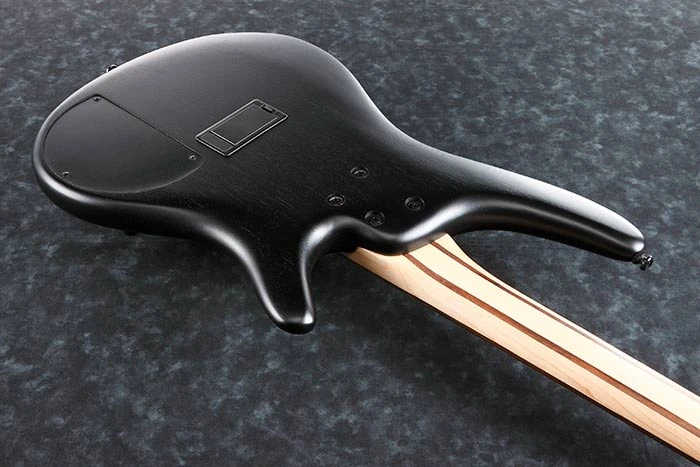

2021 SR300EBL WK 1P 03 back
Rear of body

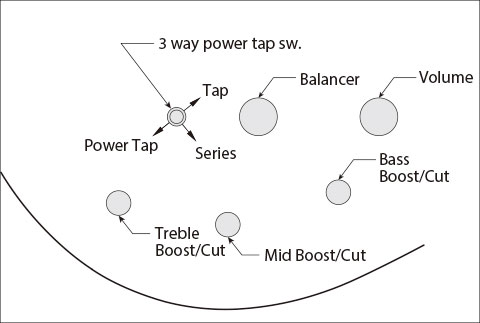

Controls SR-PowerTap
Controls layout
SR-Prestige frequency response charts
EQ frequency response
