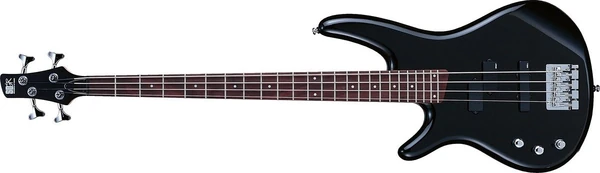

SR300DXL-BK (2005)
SR300DXL Black (more images) Red copyright sprite

The SR300DXL is a left-handed Soundgear series solid body electric bass model introduced by Ibanez for 1997. It was produced in South Korea by Cor-Tek as part of the Standard line. Production moved to Indonesia for 2005.

The SR300DXL features a double-cutaway agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a pair of IBZ DX-J/P pickups channeled through a Phat EQ, a Die-cast 4 string fixed bridge with 19mm string spacing, chrome hardware and die-cast machine heads.

The SR300DXL was listed on the American market price list from 1997 to 2001 and was listed only as an available version on catalogs with not pictures of it.

The SR300DX and SR305DX are related four and five string models. The SR300DXF is a related fretless model.

The SR300DXL was discontinued in 2003 but it reappeared in 2005.

Specifications[]

Specifications for SR300DXL
Model name: SR300DXL
Year(s) offered: 1997-2003, 2005
Sold in: USA / Europe 1999 only
Made in: South Korea (1997–2003)/ Indonesia (2005)
Price: MSRP: US$ 559.99 (1997-2001)
Finish(es): Black(BK)
Body
Body type:
Solid body
Body material:
Agathis
Neck joint:
AANJ
Bridge:
Standard IV string (19mm string spacing)
Knob style:
1997-2003: 4 Knobs (chrome)
2005: 3 Knobs (chrome)
Hardware color:
Chrome
Neck
Neck type:
SR4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (43mm)
Machine heads:
Die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
IBZ DX-J
Neck pickup:
IBZ DX-P
Electronics:
1997-2003: Phat EQ
2005: Ibanez EQB-IIC 2-band
Controls:
1997-2003: Two volume / master tone / Phat control
2005: Master volume / balancer / stacked 2-band EQ (treble & bass)
Battery:
9V
Output jack:
¼" mono (side mounted)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes & details

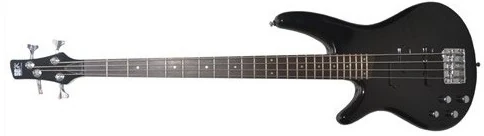

SR300DXL-bk
Black 1997-2003

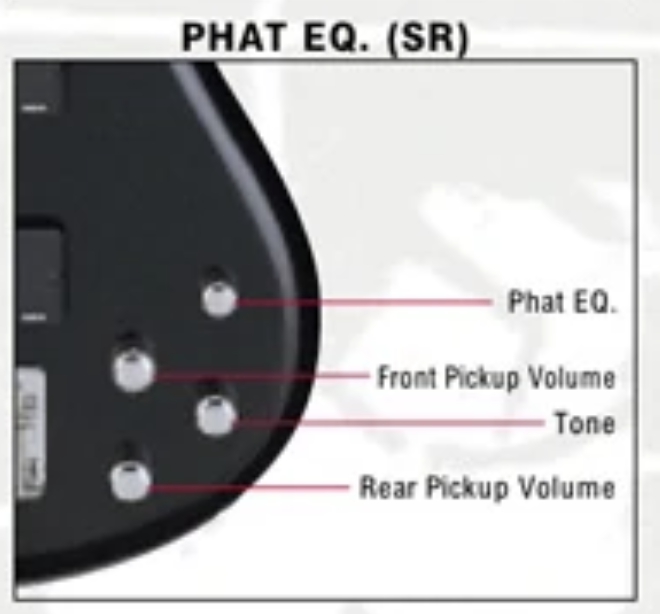

Controls PhatEQ-SR 2001
Controls layout 1997-2003

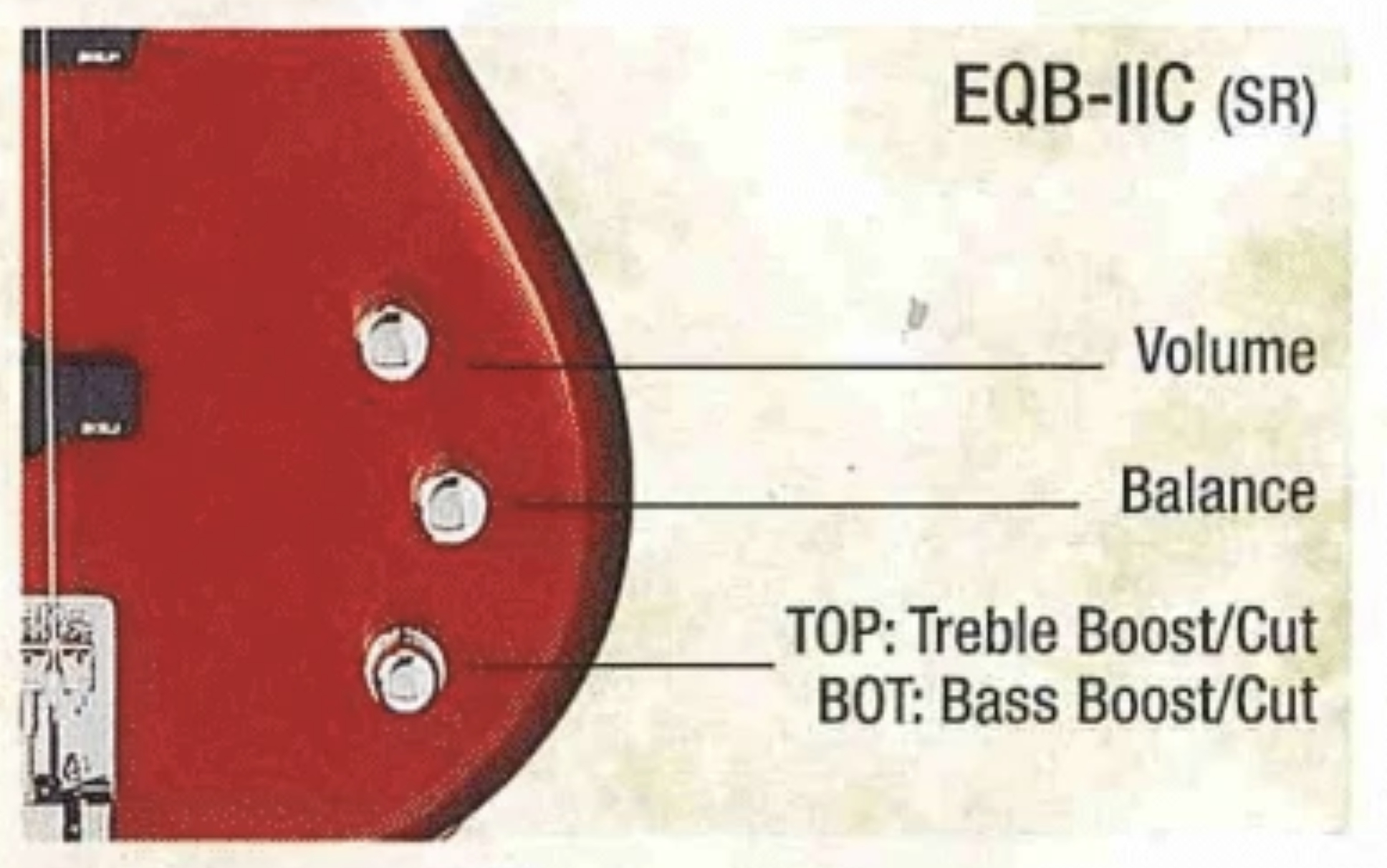

Controls EQB-IIC SR 2005
Controls layout 2005
