SR3006E-SOL

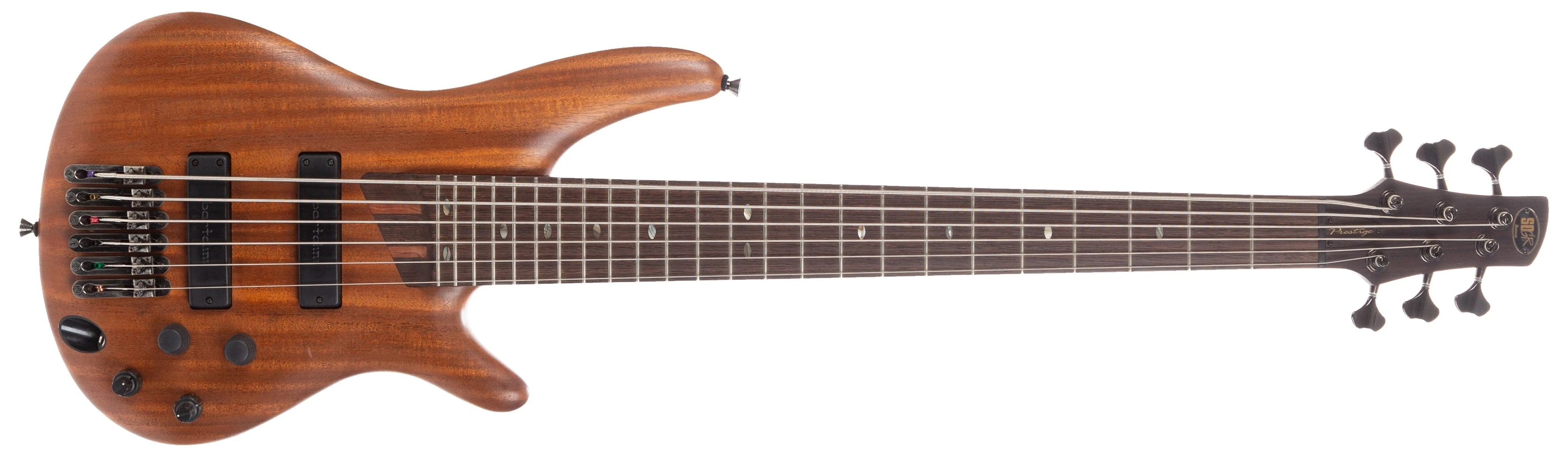

SR3006E Stained Oil (more images) Red copyright sprite

The SR3006E is a six-string Soundgear series solid body electric bass model introduced by Ibanez for 2001. It was produced in Japan by FujiGen as part of the upscale Prestige line. It replaced the similar SR3006

The SR3006E features a double-cutaway mahogany body bolted to a wenge and bubinga neck with a 24-fret wenge fingerboard with abalone oval position markers and a matching headstock. Components include a pair of IBZ DXP-M(N/B)6 (active) pickup's on the neck and bridge positions, a Mono-rail fixed bridge with 10.8mm string spacing, a Vari-Mid 3-band EQ, a Graphtech Black TUSQ XL nut, Gotoh machine heads and cosmo black hardware.

For 2002 the pickups was change to Bartolini® Custom SR6 passive, and the EQ was replaced for a Vari-mid 3lc 3-band EQ or a Vari-mid Hi Fi EQ for the US market.

The SR3000E and SR3005E are similars four and five string models.

The SR3006E was discontinued after 2004.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR3006E
Model name: SR3006E
Year(s) offered: 2001-2004
Sold in: Japan 2001- 2003 / Europe 2002-2004 / USA 2002-2003 / Asia & South America 2003-2004
Made in: Japan
Price: MSRP: JP¥ 155,000 (2001-2002), JP¥ 175,000 (2003)
Finish(es): Stained Oil (SOL)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Mono-rail (10.8mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR6 Prestige
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium
Nut:
Graphtech Black TUSQ XL (54mm)
Machine heads:
Gotoh
Electronics/ Strings
Bridge pickup:
2001: IBZ DXP-MB6
2002-2004: Bartolini® Custom SR6 passive bridge
Neck pickup:
2001: IBZ DXP-MN6
2002-2004: Bartolini® Custom SR6 passive neck
Electronics:
2001: Vari-Mid 3-Band
2002-2003: Vari-mid Hi Fi EQ (USA)
2002-2004: Vari-mid 3lc 3-band EQ
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

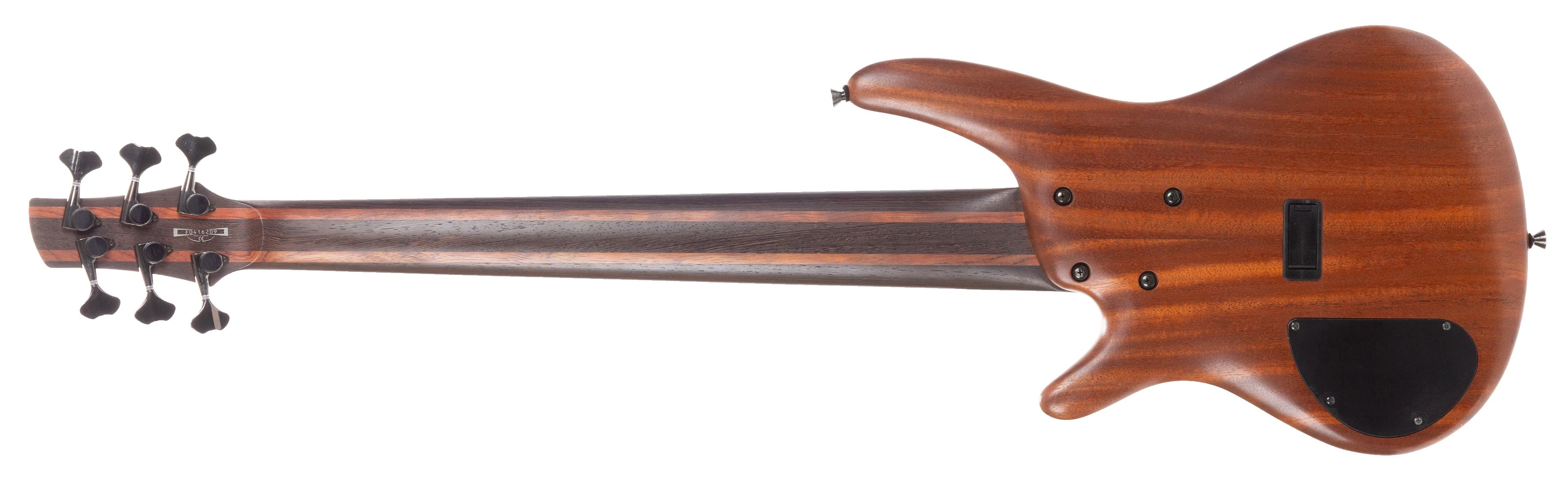

SR3006E-SOL rear
Ibanez SR53006E-SOL ( Rear: Mahogany body bolted to a 5-piece wenge/ bubinga SR6 Prestige neck and gotoh machine heads ) Red copyright sprite
Additional details

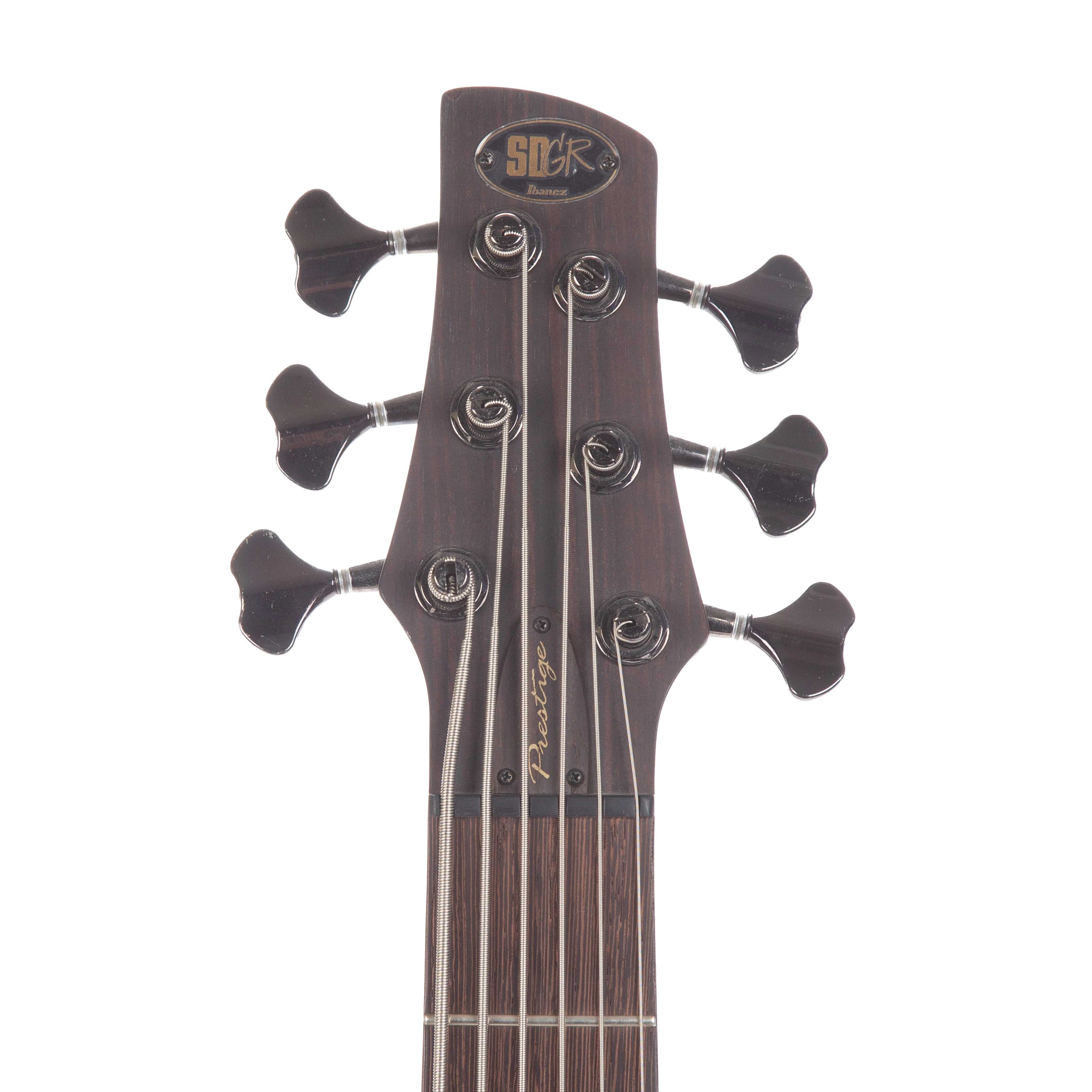

SR3006E Headstock
Headstock (front)

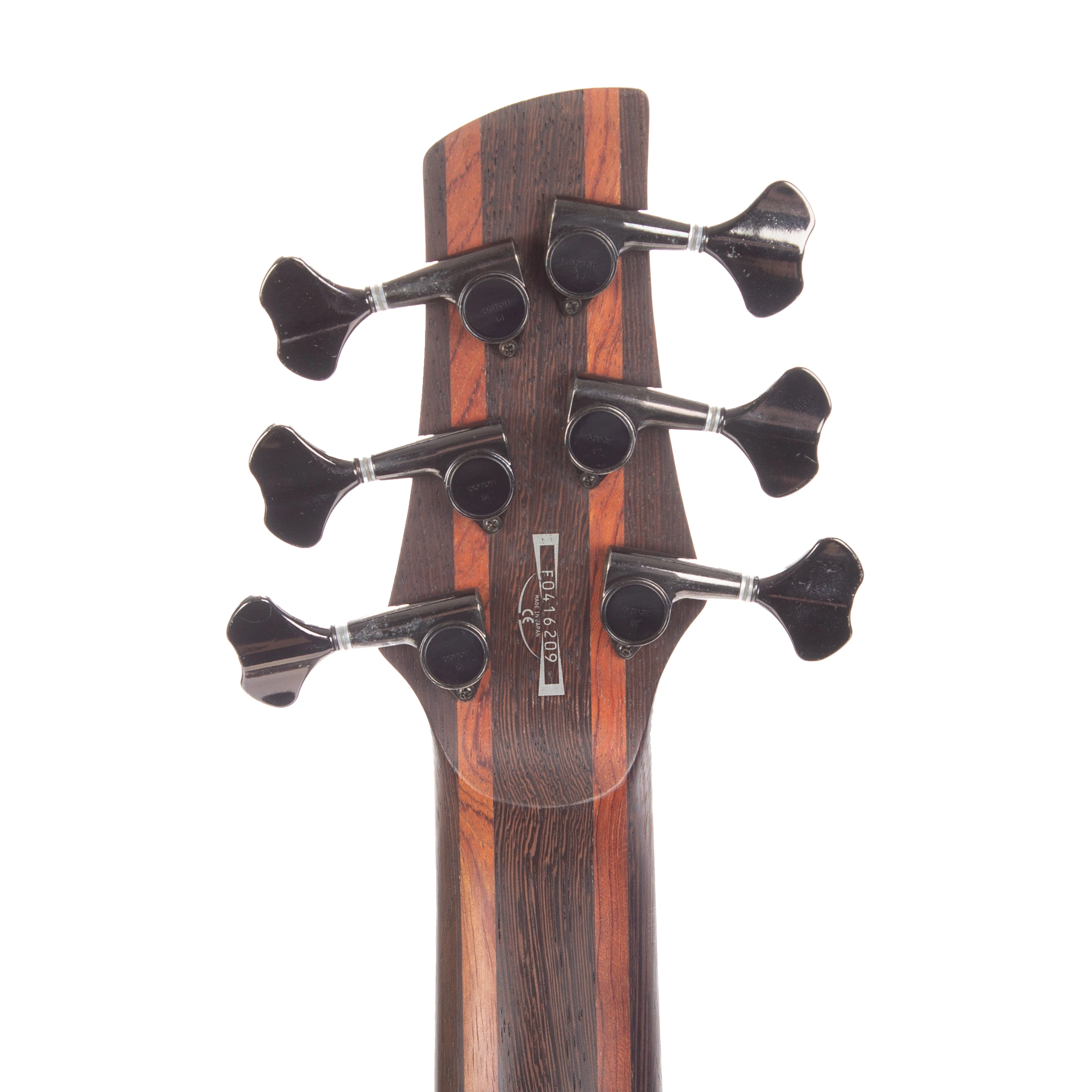

SR3006E tuners
Headstock (back)
