SR3005-SOL

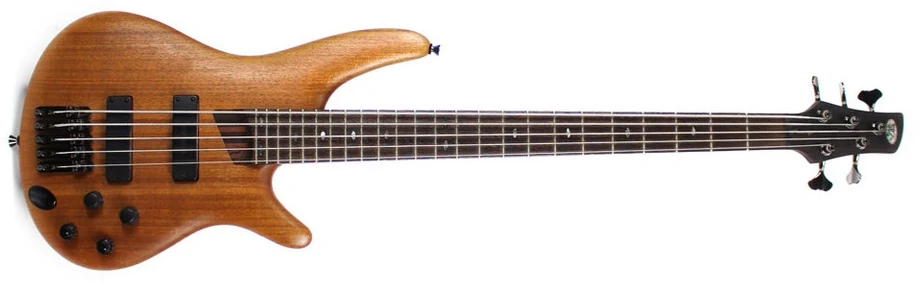

SR3005 Stained Oil (more images) Red copyright sprite

The SR3005 is a five string Soundgear series solid body electric bass model introduced by Ibanez for 1999. It was produced in Japan by FujiGen as part of the upscale Prestige line.

The SR3005 features a double-cutaway mahogany body bolted to a SR5 wenge an bubinga neck with a 24-fret wenge fingerboard with abalone oval position markers and a matching headstock. Components include a Mono Rail bridge with 16.5mm string spacing, a pair of IBZ sfr-m humbucker pickup's channeled through a Vari-Mid 3LC 3-Band, a plastic nut, cosmo black hardware and Gotoh 510 tuning machines.

The SR3000 and SR3006 are similar four and six string models.

The SR3005 was discontinued after 2001 and replaced by the SR3005E.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
SR3005
Year(s) offered: 1999-2001
Sold in: Europe / USA / Japan 2000
Made in: Japan
Price: MSRP: US$ 1,399.99 (1999-2001) / JP¥ 145,000 (2000)
Finish(es): Stained Oil (SOL)
Body
Body type:
Solid
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Mono Rail (16.5mm string spacing)
Knob style:
2 rubber knobs
2 plastic concentric
Hardware color:
Cosmo black
Neck
Neck type:
1999-2001: SR5 Prestige
2000: SR5DX (Japan)
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh 510
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
1999-2001: IBZ sfr-mb active
2000-2001: IBZ sfr5b (USA)
Neck pickup:
1999-2001: IBZ sfr-mn active
2000-2001: IBZ sfr5n (USA)
Electronics:
Vari-Mid 3LC 3-Band
2000-2001: Vari-mid Hi Fi (USA)
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

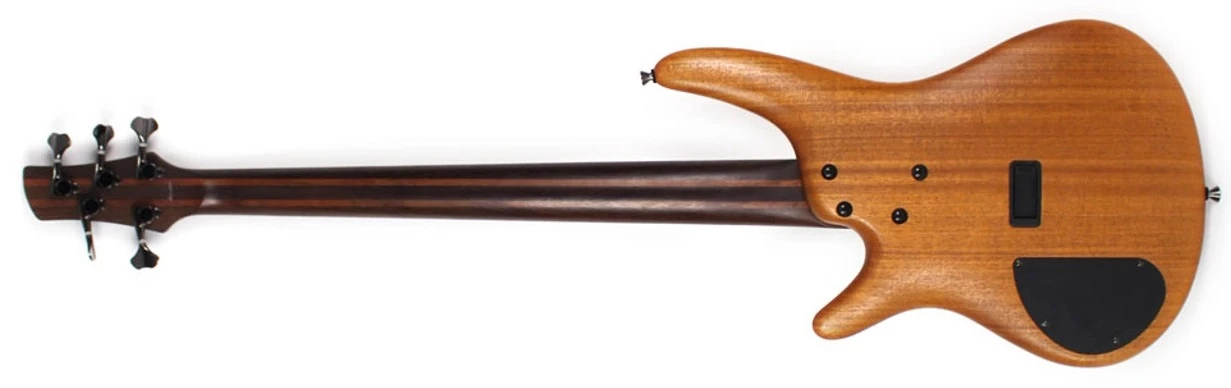

SR3005-SOL rear
Ibanez SR3005-SOL ( Rear: Mahogany body bolted to a 5-piece wenge/ bubinga SR5 Prestige neck and Gotoh machine heads ) Red copyright sprite
Additional details

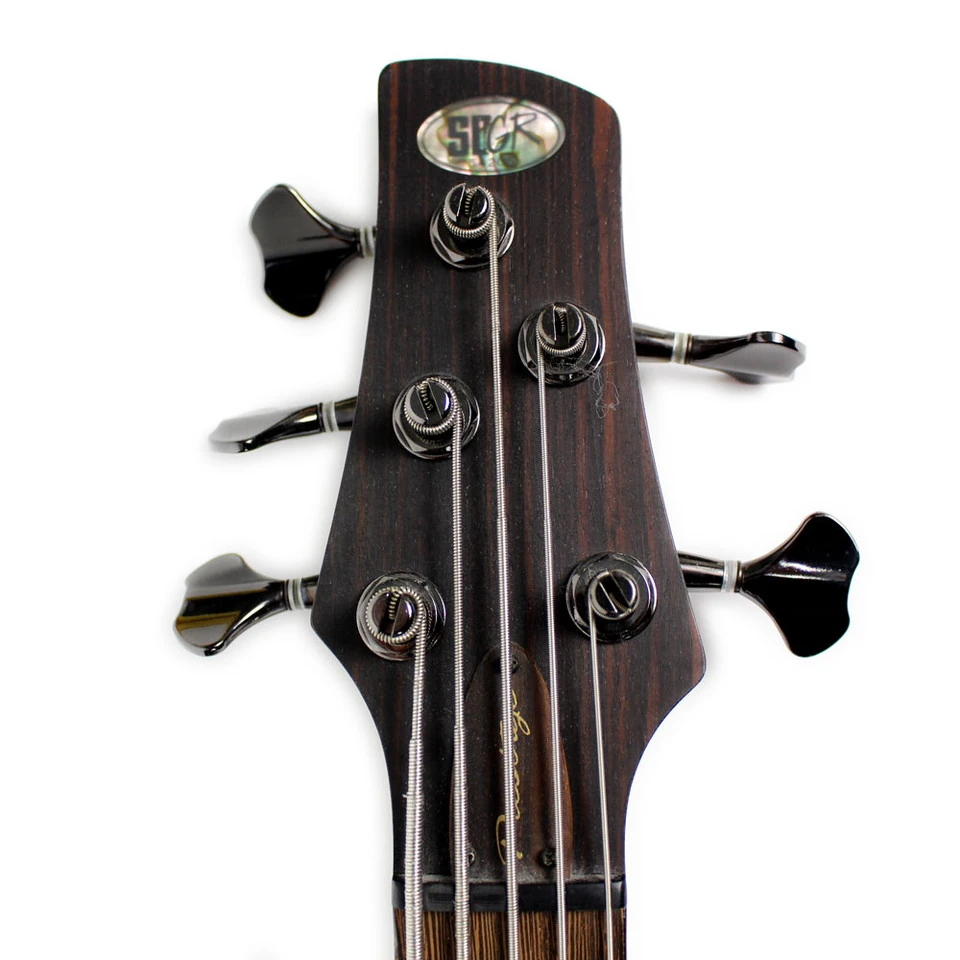

SR3005 headstock
Headstock

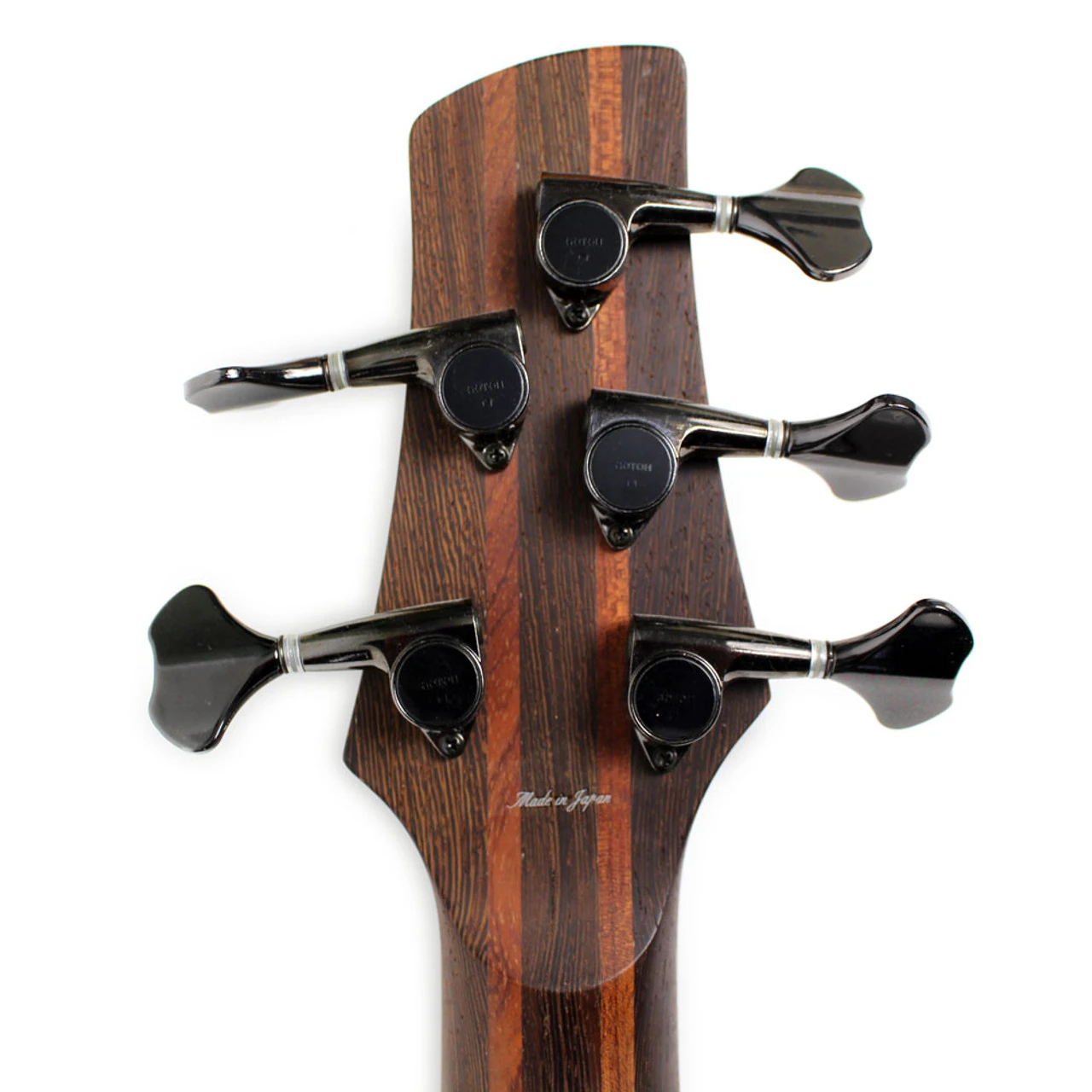

SR3005 gotoh
Gotoh tuners
