2004 SR3000E-SOL
SR3000E Stained Oil (more images) Red copyright sprite

The SR3000E is a Soundgear series solid body electric bass model introduced by Ibanez for 2001. It was produced in Japan by FujiGen as part of the upscale Prestige line. It replaced the similar SR3000.

The SR3000E features a double-cutaway mahogany body bolted to a SR wenge and bubinga neck with a 24-fret wenge fingerboard with abalone ovals position markers and a matching headstock. Components include Mono Rail bridges with D-tuner and 19mm string spacing, and a pair of IBZ SFR-S humbucker pickup's channeled through a Vari-mid 3-band EQ, a plastic nut, cosmo black hardware and Gotoh 510 tuning machines.

For 2002 the pickups was change to Bartolini® Custom passive, and the EQ was replaced for a Vari-mid 3lc 3-band EQ or a Vari-mid Hi Fi EQ for the US market.

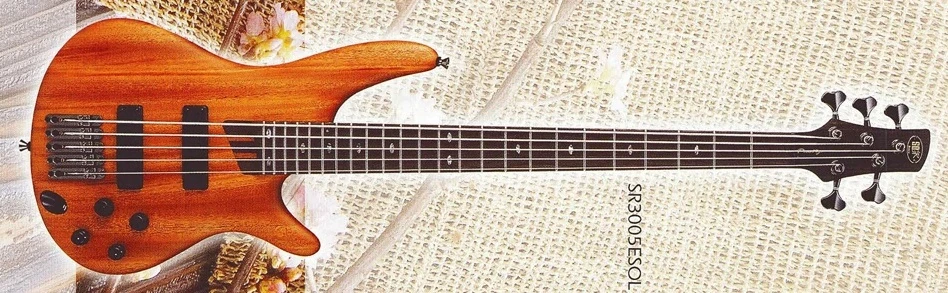

The SR3005E and SR3006E are similar five and six string models.

The SR3000E was discontinued after 2004.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR3000E
Model name: SR3000E
Year(s) offered: 2001-2004
Sold in: Japan 2001-2003 / Europe 2002-2004 / USA 2002-2003 / Asia & South America 2003-2004
Made in: Japan
Price: MSRP: JP¥ 135,000 (2001) / JP¥ 155,000 (2002-2003)
Finish(es): Stained Oil (SOL)
Body
Body type:
Solid
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Mono Rail w/ D-tuner (19mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR4 Prestige
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh 510
Electronics/ Strings
Bridge pickup:
2001: IBZ SFR-SB bridge
2002-2004: Bartolini® Custom bridge passive
Neck pickup:
2001: IBZ SFR-SN neck
2002-2004: Bartolini® Custom neck passive
Electronics:
2001-2002: Vari-mid 3-band (Japan)
2002-2003: Vari-mid Hi Fi (US market)
2002-2004: Vari-mid 3lc 3-band EQ
Controls:
Volume, Balancer, Treble Boost/Cut - Bass Boost/Cut, Mid Boost/Cut
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

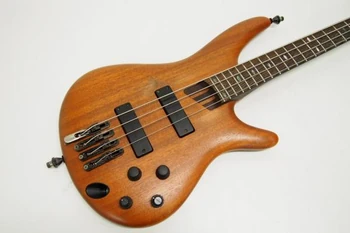

SR3000E-SOL front
front of body
