2007 SR20TH4-SOL

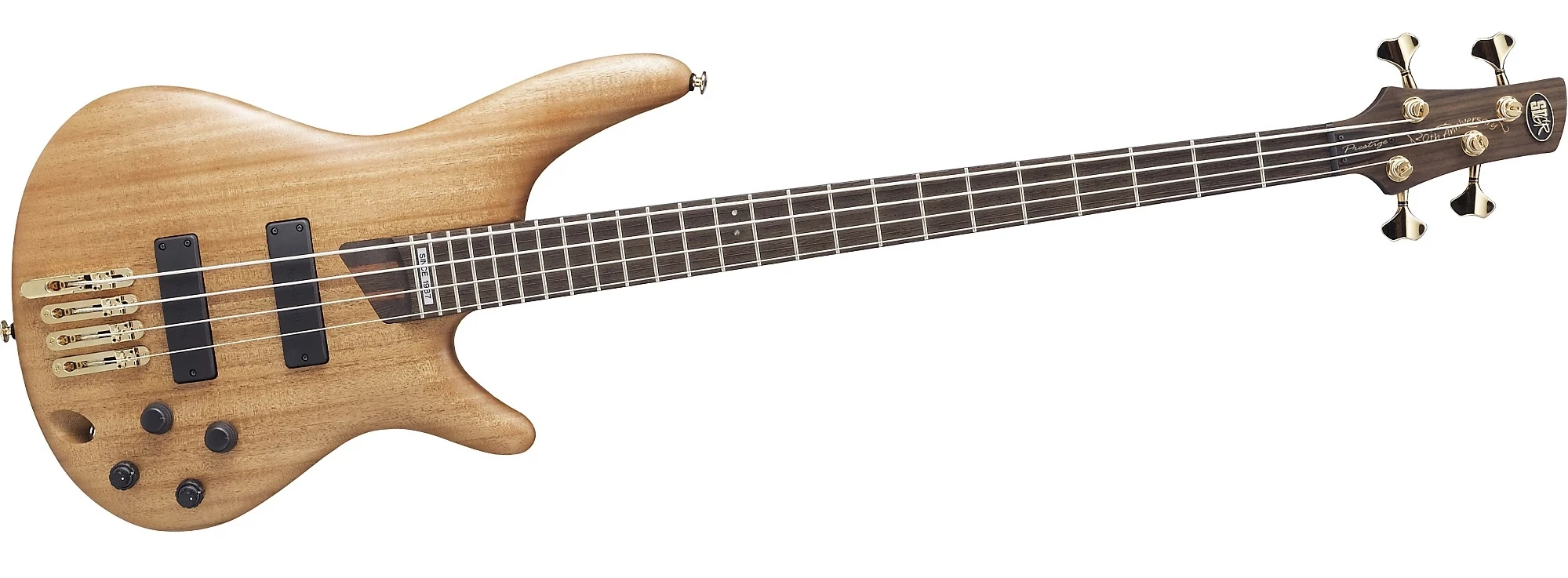

SR20th4 Stained Oil (more images) Red copyright sprite

The SR20th4 is a limited edition Soundgear series solid body electric bass model introduced by Ibanez for 2007 to commemorate the 20th Anniversary of the series. It was produced in Japan by FujiGen as part of the upscale Prestige line. Only 350 units was produced.

The SR20th4 features a double-cutaway mahogany body bolted to a SR wenge and bubinga neck with a 24-fret rosewood fingerboard with abalone dots position markers at 12 fret, "Since 1987" inlay at 24 fret, and a matching headstock. Components include Mono Rail bridges with D-tuner and 19mm string spacing, and a pair of Bartolini Custom humbucker pickup's channeled through a Vari-Mid III HQ 3-band EQ, a plastic nut, gold hardware and Gotoh 510 tuning machines. It comes with a special 20th Anniversary bass suitcase and a 20th Anniversary leather strap.

The SR20th5 is a similar five string model.

The SR20th4 was only offered 2007.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR20th4
Model name: SR20th4
Year(s) offered: 2007
Sold in: Europe
Made in: Japan
Finish(es): Stained Oil (SOL)
Body
Body type:
Solid
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Mono-rail IV fixed w/ D-tuner (19mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Gold
Neck
Neck type:
SR4 Prestige
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dots at 12 fret and "Since 1987" inlay at 24 fret
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh 510
Electronics/ Strings
Bridge pickup:
Bartolini Custom bridge soapbar (H) passive
Neck pickup:
Bartolini Custom neck soapbar (H) passive
Electronics:
Vari-Mid III HQ 3-band EQ
Controls:
Volume, Balancer, Treble Boost/Cut - Bass Boost/Cut, Mid Boost/Cut
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

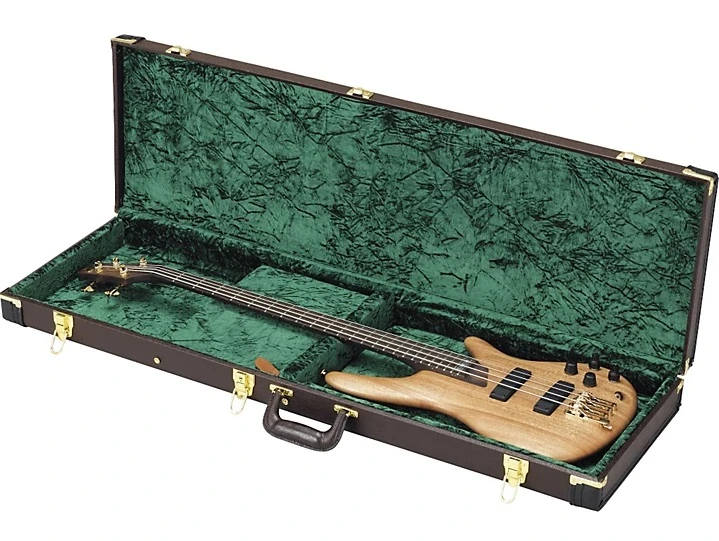

SR20TH4 case
SR20th4 bass suitcase

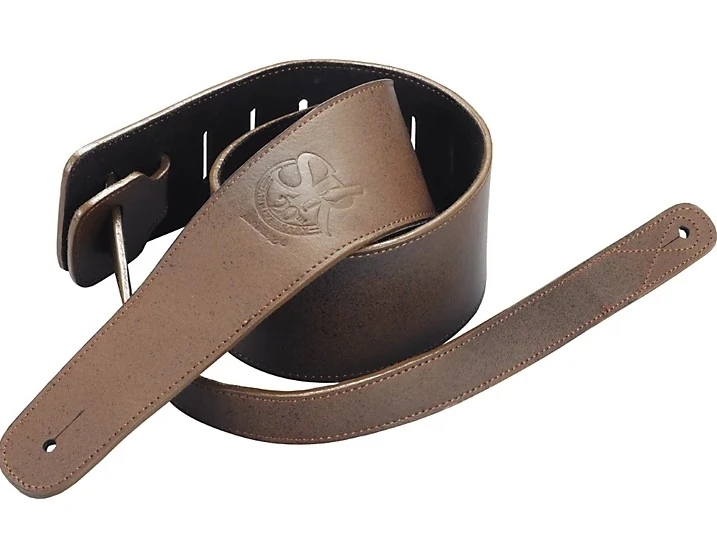

SR20th4 strap
Leather strap

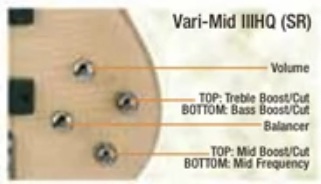

Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response chart
