1993 SR2005-TP

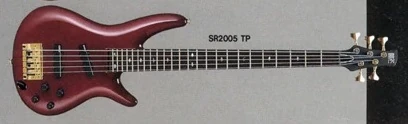

SR2005 Transparent Purple (more images) Red copyright sprite

The SR2005 is a five string Soundgear series solid body electric bass model introduced by Ibanez for 1992. It was produced in Japan by FujiGen as part of the Standard line.

The SR2005 features neck-through-body construction on maple attached to a maple and walnut neck with a 24-fret rosewood fingerboard with pearl oval position markers. Components include an Accu-cast B V fixed bridge with 16.5mm string spacing, and a pair of IBZ AFR-J5 active full range pickup's channeled through a Vari-Mid 3-Band EQ, a plastic nut and Gotoh tuning machines.

The SR2000 is a similar four-string model.

The SR2005 was discontinued after 1993.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR2005
Model name: SR2005
Year(s) offered: 1992-1993
Sold in: USA / Europe 1993
Made in: Japan
Price: MSRP: US$ 1,999.95
Finish(es): Oil (OL) / Transparent Purple (TP)
Body
Body type:
Solid body
Body material:
Maple
Neck joint:
Neck-thru
Bridge:
Accu-cast B V (16.5mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Gold
Neck
Neck type:
SR5
Neck material:
5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
1992: Rosewood
1993: Wenge
Fingerboard inlays:
Pearl oval
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
Electronics
Pickup configuration:
JJ
Bridge pickup:
IBZ AFR-J5 bridge active full range
Neck pickup:
IBZ AFR-J5 neck active full range
Electronics:
Vari-Mid 3-Band EQ
Controls:
Master volume, balance, treble boost/cut, bass boost/cut
Battery:
9V
Output jack:
¼" stereo (side mounted)

Images[]

Other finishes

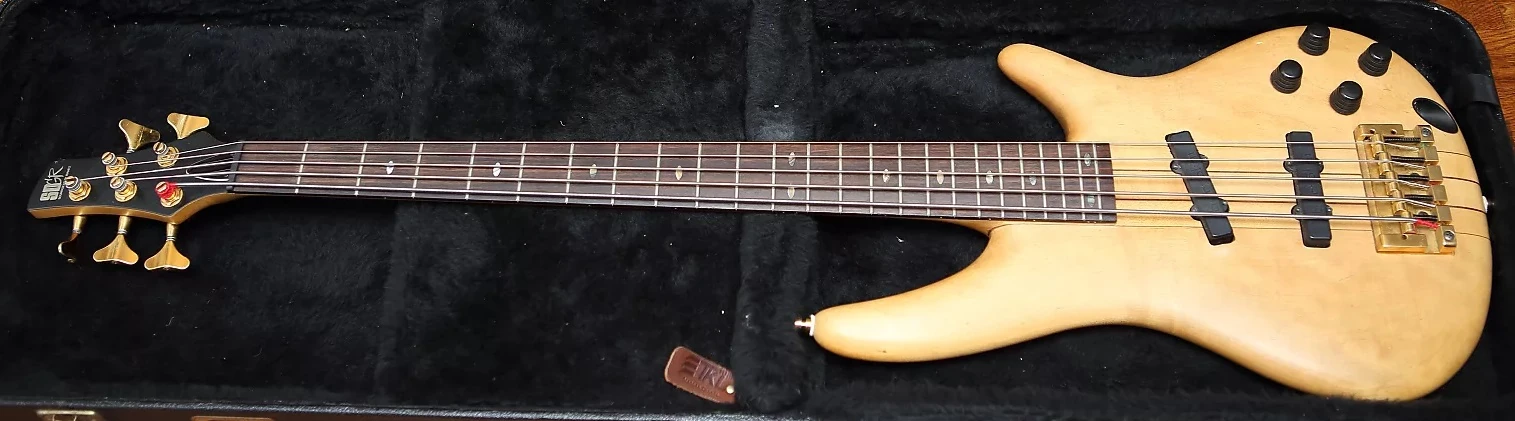

1992 SR2005-OL
Oil
