SR2000

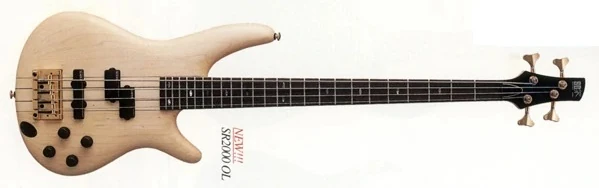

SR2000 Oil Finish (more images)

The SR2000 is a Soundgear series solid body electric bass model introduced by Ibanez for 1992. It was produced in Japan by FujiGen.

The SR2000 features neck-through-body construction with maple wings attached to a maple and walnut neck with a 24-fret rosewood fingerboard with pearl oval position markers. Components include an Accu-cast fixed bridge with 19mm string spacing, a pair of Ibanez AFR P/J active pickups channeled through a Vari-Mid three band EQ, a plastic nut, and Gotoh tuning machines.

For 1993 the fretboard was changed from rosewood to wenge and the position markers were changed to abalone.

The SR2005 is a five string version.

The SR2000 was discontinued after 1996.

Specifications

Related content: Soundgear series |

Specifications for SR2000

Model name: SR2000 Year(s) offered: 1992–1996 Sold in: Europe 1993 / Japan 1993–1996 / USA 1992–1993 Made in: Japan Price: MSRP: US$ 1,399.95 (1992) / US$ 1,799.95 (1993) / ¥ 130,000 (1993–1996) Finish(es): Oil Finish (OL)/ Transparent Purple (TP) 1993 only
Body Body type: Solid body Body material: Maple Neck joint: Neck-thru Bridge: Accu-Cast B IV fixed (19mm string spacing) Knob style: Beehive (black) Hardware color: Gold	Neck Neck type: SR4 Neck material: 5-piece maple/ walnut Scale length: 864mm / 34" Fingerboard material: 1992: Rosewood 1993–1996: Wenge Fingerboard inlays: 1992: Pearl oval 1993–1996: Abalone ovals Frets: 24 / medium nickel silver Nut: Black plastic (38mm) Machine heads: Gotoh GB707 String gauge (factory): .045/.065/.085/.105 Factory tuning: 1G,2D,3A,4E (E standard)	Electronics Pickup configuration: PJ Bridge pickup: AFR-J active full range Neck pickup: AFR-P active full range Electronics: Vari-Mid 3-Band Controls: Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / Mid-freq parametric control (100Hz–5kHz) Battery: 9V Output jack: ¼" stereo (angled face mount)

About this table

Images

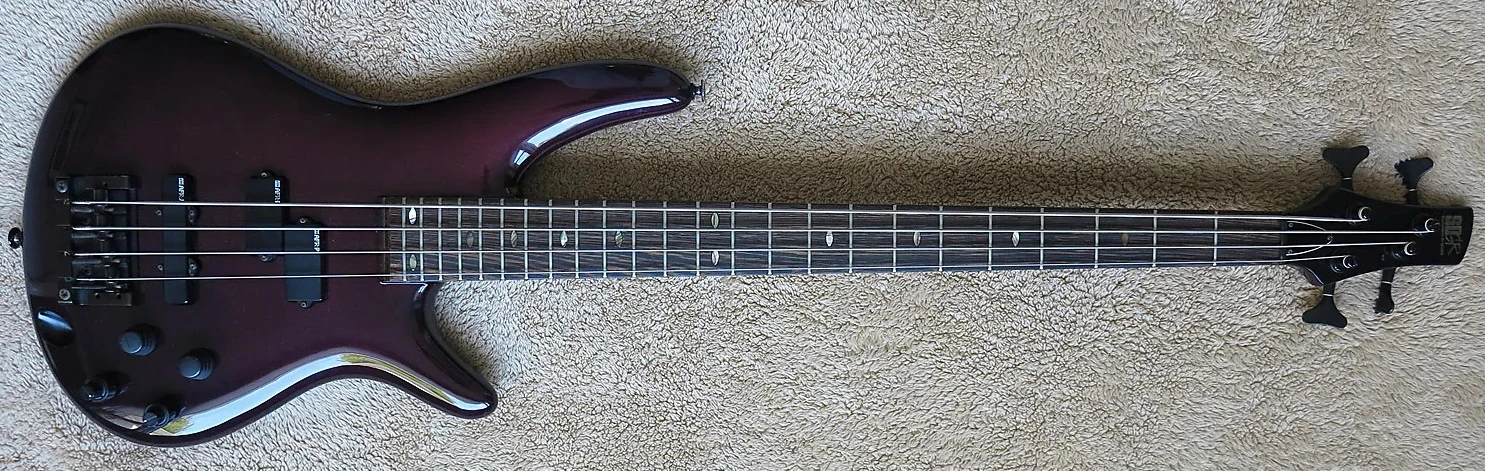

1993 S2000 in Transparent Purple with non-stock black hardware

Additional details

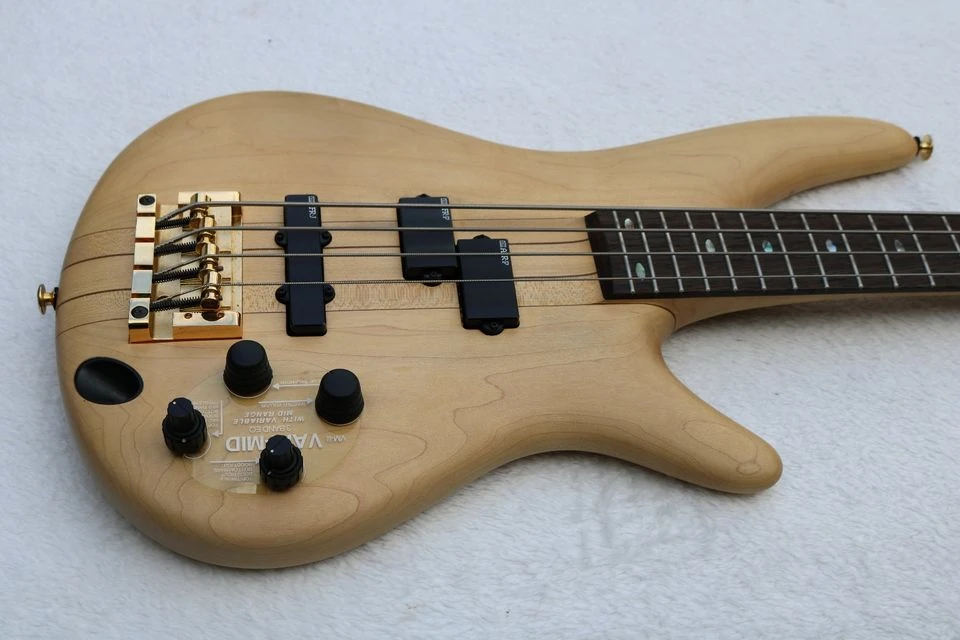

Oil finish Front of body

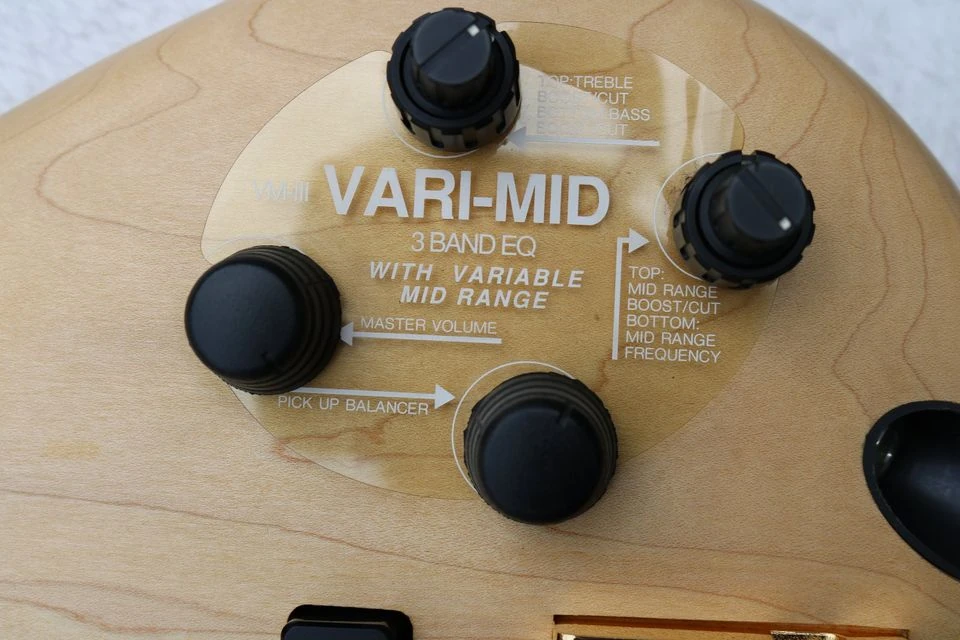

Controls layout

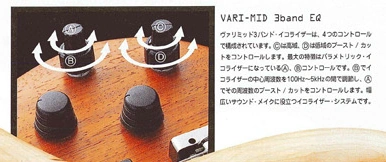

Controls description

Sources

• 1992 USA catalog (pp. 6–7)
• 1993 USA catalog (p. 32)
• 1993 Europe catalog (pp. 33 & 35)
