2019 SR1820 NTL 1P 02
SR1820 Natural Low Gloss Red copyright sprite

The SR1820 is a Soundgear series solid body electric bass model introduced by Ibanez in 2018. It was made in Indonesia as part of the mid-tier Premium line. It replaced the SR1800. It is also referred to as the SR1820E in some materials for the US market.

The SR1820 features a walnut and flamed maple top on a double-cutaway Mahogany body bolted to a titanium reinforced panga panga and purpleheart Atlas neck with a 24-fret panga panga fingerboard with binding and abalone oval position markers. Components include a pair of Nordstrand Big Single passive pickups with an Ibanez custom preamp with a three-band EQ, a Mono-rail bridge with 19mm string spacing, a GraphTech Black TUSQ nut and Gotoh tuning machines.

For 2019 the body material was specified as African mahogany.

The SR1825 is a similar five string model.

The SR1820 was discontinued after 2019.

Specifications

Specifications for SR1820
Model name: SR1820/ SR1820E
Year(s) produced: 2018–2019
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Natural Low Gloss (NTL)
Body
Body type:
Solid body
Body material:
2018: Mahogany w/ walnut & flamed maple top
2019: African mahogany w/ walnut & flamed maple top
Neck joint:
AANJ
Bridge:
Mono-rail V fixed (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Gold
Neck
Neck type:
Atlas-4
Neck material:
5-piece panga panga/ purpleheart w/ KTS titanium rods
Scale length:
864mm / 34"
Fingerboard material:
Panga panga w/ binding
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium (Premium edge treatment)
Nut:
GraphTech Black TUSQ XL (38mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Nordstrand Big Single passive
Neck pickup:
Nordstrand Big Single passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / balancer / 3-way EQ on-bypass-off toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details

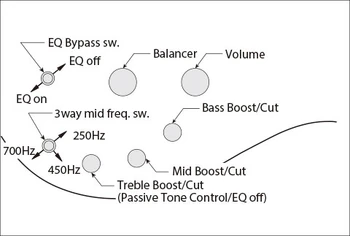

Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency charts
