2021 SR1600D ASK 1P 01

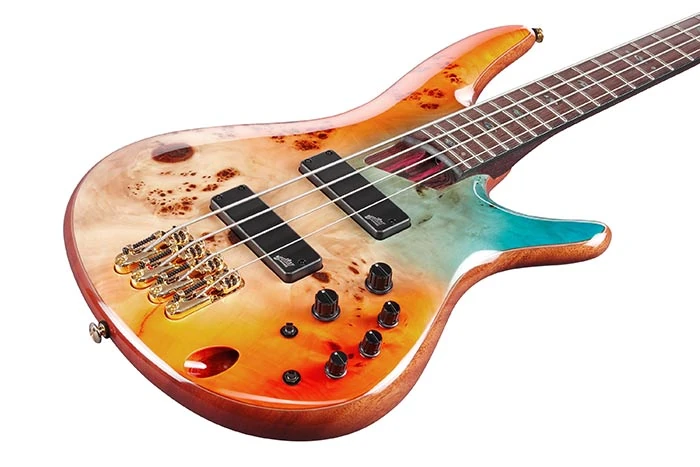

SR1600D Autumn Sunset Sky (more images) Red copyright sprite

The SR1600D is a Soundgear series solid body electric bass model introduced by Ibanez for 2021. It is made in Indonesia as part of the mid-tier Premium line.

The SR1600D features a poplar burl and walnut top on a double-cutaway African mahogany body bolted to a titanium reinforced panga panga and purpleheart Atlas neck with a 24-fret panga panga fingerboard with binding and abalone oval position markers. Components include a pair of Aguilar DCB passive pickups with an Ibanez custom preamp with a three-band EQ, individually mounted Mono-rail VS bridges with adjustable 19mm string spacing, a GraphTech Black TUSQ nut, and Gotoh tuning machines.

The SR1605DW is a five string version. The SR1600B is a similar model with different pickups. The SR1340B is a similar model with an ash and panga panga top.

Specifications[]

Related content: Premium series | Soundgear series | Models-icon
Specifications for SR1600D
Model name: SR1600D
Year(s) offered: 2021–2024
Sold in: USA
Made in: Indonesia
Price: MSRP: US$1,999.99 (2024)[1] • SMAP: US$1,399.99 (2021)[2] / US$1,499.99 (2023[3]–2024[1])
Finish(es): Autumn Sunset Sky (ASK)
Body
Body type:
Solid body
Body material:
African mahogany w/ poplar burl top
Neck joint:
AANJ
Bridge:
MR5S (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Black
Neck
Neck type:
Atlas-4
Neck material:
5-piece panga panga/ purpleheart w/ KTS titanium rods
Scale length:
864mm / 34"
Fingerboard material:
Panga panga w/ binding
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium nickel silver (Premium edge treatment)
Nut:
GraphTech Black TUSQ XL (38mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Aquilar DCB bridge passive
Neck pickup:
Aquilar DCB neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way mid-frequency toggle / EQ bypass toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

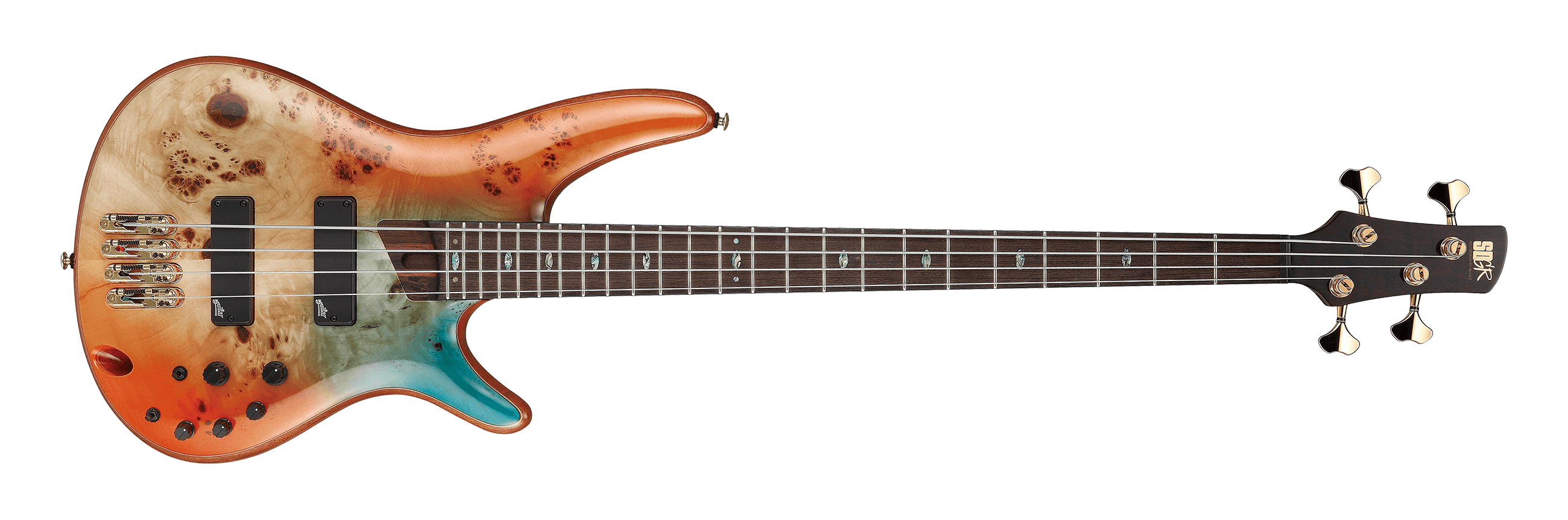

2021 SR1600D ASK 1P 01 front
Front of body
2021 SR1600D ASK 1P 01 back
Rear of body
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency response

Sources[]

  1. 1.0 1.1 SR1600D product listing, American Musical Supply (US retailer), archived March 2024
  2. SR1600D product listing, Musician's Friend (US retailer), archived August 2021
  3. SR1600D product listing, Musician's Friend (US retailer), archived March 2023
  • SR1600D product page, Ibanez USA, archived January 2021
  • SR1600D product page, Ibanez USA, archived June 2022
  • SR1600D product page, Ibanez USA, archived January 2023
  • SR1600D product page, Ibanez USA, archived January 2024
