1991 SR1500PD (Europe)

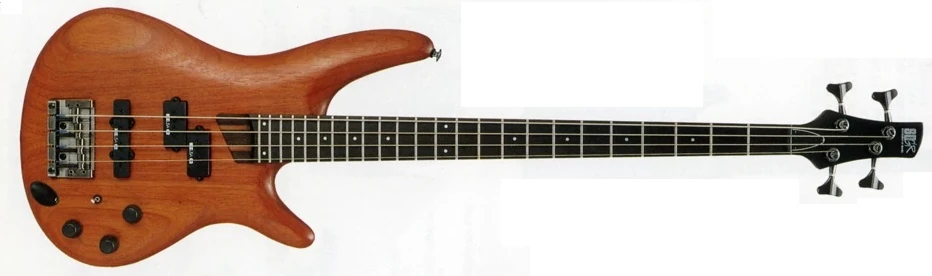

SR1500PD Natural Oil [Europe catalog] (more images) Red copyright sprite

The SR1500PD is a Soundgear series solid body electric bass model introduced by Ibanez for 1991. It was produced in Japan by FujiGen as part of the Standard line.

The SR1500PD features a double-cutaway padauk body bolted to a bubinga and wenge neck with a 24-fret ebony fingerboard with pearl dot position markers and a black headstock. Components include an Accu-cast B-IV fixed bridge with 19mm string spacing, and a pair of EMG P/J passive pickup's, a plastic nut, cosmo black hardware and gotoh tuning machines.

The SR1500S is a very similar model. The SR1500BG is a related model with bubinga body. The SR1500 is a related model with a EQ BⅡ 2-band system.

The SR1500PD was discontinued after 1992.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1500PD
Model name: SR1500PD
Year(s) offered: 1991-1992
Sold in: USA 1991 / Europe 1991-1992
Made in: Japan
Finish(es): Natural Oil
Body
Body type:
Solid body
Body material:
Padauk
Neck joint:
AANJ
Bridge:
Accu-cast B IV (fixed) (19mm string spacing)
Knob style:
4 Rubber knobs (US market)
3 Rubber knobs / 1 switch (Europe)
Hardware color:
Cosmo black
Neck
Neck type:
SR4
Neck material:
5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Ebony
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (38mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
1991: EMG J passive (US market)
1991-1992: IBZ/USA C2J (Europe)
Neck pickup:
1991: EMG P passive (US market)
1991-1992: IBZ/USA C2P (Europe)
Electronics:
Power curve system
Controls:
Volume / Balancer / 3-way eq depth selector switch
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

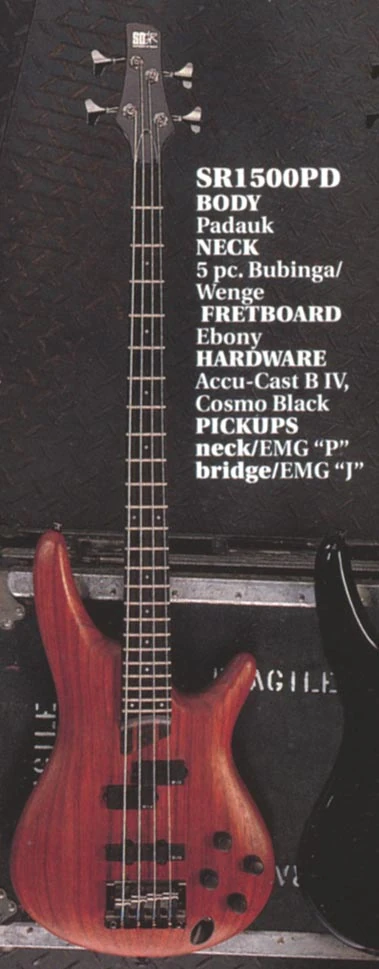

1991 SR1500PD (USA catalog)
1991 USA catalog

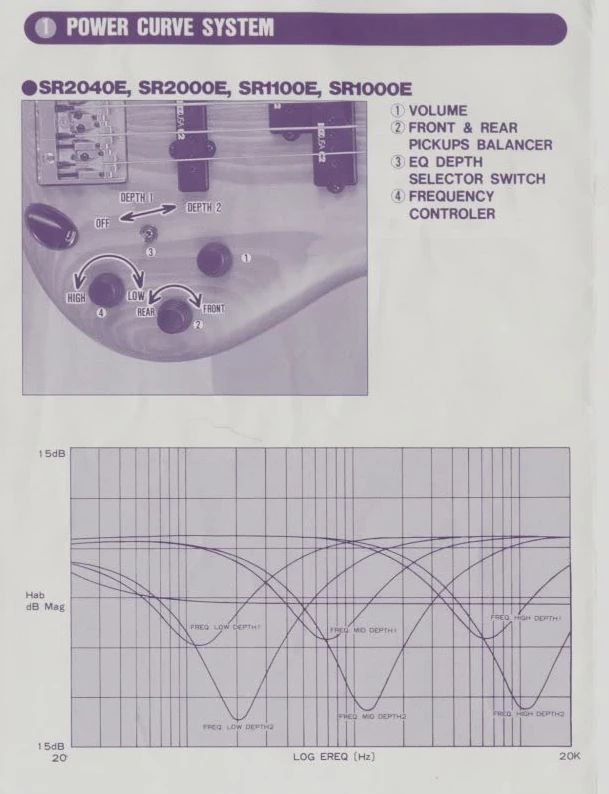

Power Curve System
Controls layout & Frequency response chart
