SR1500BG

SR1500BG Oil (more images)

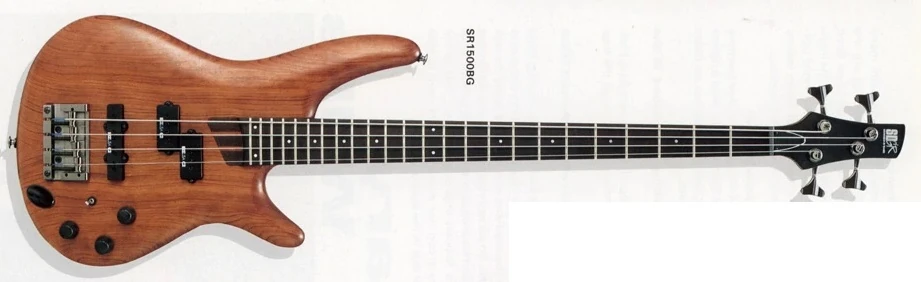

The SR1500BG is a Soundgear series solid body electric bass model introduced by Ibanez for 1992. It was produced in Japan by FujiGen as part of the Standard line.

The SR1500BG features a double-cutaway bubinga body bolted to a bubinga and wenge neck with a 24-fret ebony fingerboard with pearl dot position markers and a black headstock. Components include an Accu-cast B-IV fixed bridge with 19mm string spacing, and a pair of IBZ/USA C2--P/J passive pickup's with a Power curve system equalizer, a plastic nut, cosmo black hardware and gotoh tuning machines.

THE SR1500PD is a related model with padauk body. The SR1500S is a related model with padauk body.

The SR1500BG was discontinued after 1992.

Specifications

Related content: Soundgear series |

Specifications for SR1500BG

Model name: SR1500BG Year(s) offered: 1992 Sold in: Europe Made in: Japan Finish(es): Oil
Body Body type: Solid body Body material: Bubinga Neck joint: AANJ Bridge: Accu-Cast B IV (fixed) (19mm string spacing) Knob style: 4 Rubber knobs (Black) Hardware color: Cosmo black	Neck Neck type: SR4 Neck material: 5-piece wenge/ bubinga Scale length: 864mm / 34" Fingerboard material: Ebony Fingerboard inlays: Pearl dot Frets: 24 / medium Nut: Black plastic (38mm) Machine heads: Gotoh String gauge (factory): .045/.065/.085/.105 Factory tuning: 1G,2D,3A,4E (E standard)	Electronics Pickup configuration: PJ Bridge pickup: IBZ/USA C2-J passive Neck pickup: IBZ/USA C2-P passive Electronics: Power curve system Controls: Volume / Balancer / Frequency control / 3-way eq depth selector switch Output jack: ¼" stereo (side mounted)

About this table

Images

Additional details

Controls layout & Frequency response chart

Sources

• 1992 Europe catalog (p. 32)
