SR1500-PD

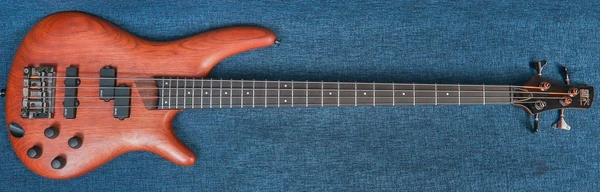

SR1500 Padauk w/ Natural Oil finish (more images) Red copyright sprite

The SR1500 is a Soundgear series solid body electric bass model introduced by Ibanez for 1992. It was produced in Japan by FujiGen as part of the Standard line.

Features[]

The SR1500 (BG) features a double-cutaway bubinga body bolted to a bubinga and wenge neck with a 24-fret ebony fingerboard with pearl dot position markers and a black headstock. Components include an Accu-cast B-IV fixed bridge with 19mm string spacing, and a pair of EMG P/J passive pickup's channeled through a EQ BⅡ 2-band, a plastic nut, cosmo black hardware and gotoh tuning machines.

The SR1500 (PD) features a double-cutaway padauk body bolted to a bubinga and wenge neck with a 24-fret ebony fingerboard with pearl dot position markers and a black headstock. Components include an Accu-cast B-IV fixed bridge with 19mm string spacing, and a pair of EMG P/J passive pickup's channeled through a EQ BⅡ 2-band, a plastic nut, cosmo black hardware and gotoh tuning machines.

The SR1500BG is a related model with bubinga body. The SR1500PD is a related model with padauk body. The SR1500S is a related model with padauk body.

The SR1500 was only offered in 1992.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1500
Model name: SR1500
Year(s) offered: 1992
Sold in: USA
Made in: Japan
Finish(es): Bubinga (BG) / Padauk (PD)
Body
Body type:
Solid body
Body material:
Buninga (BG) finish
Padauk (PD) finish
Neck joint:
AANJ
Bridge:
Accu-Cast B IV (fixed) (19mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR4
Neck material:
5-piece bubinga/ wenge
Scale length:
864mm / 34"
Fingerboard material:
Ebony
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (38mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
EMG J passive
Neck pickup:
EMG P passive
Electronics:
EQ BⅡ
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

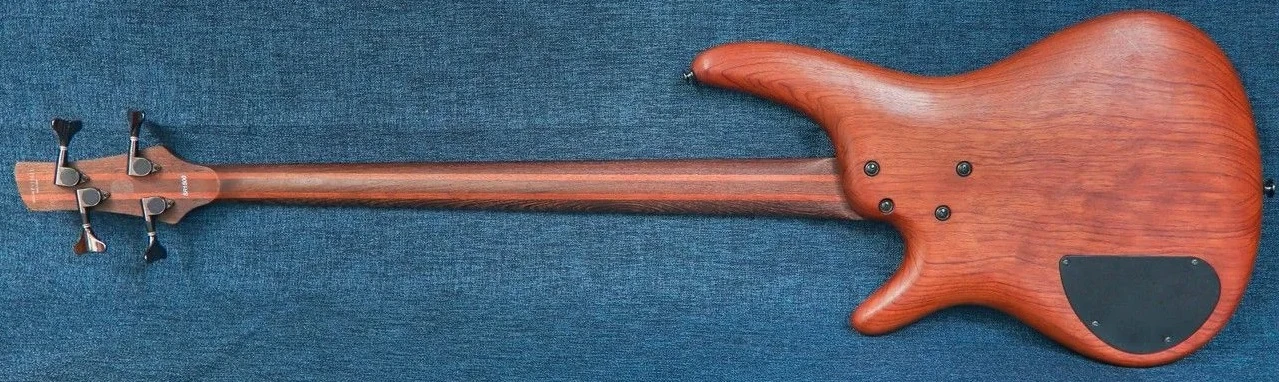

SR1500-PD Rear
1992 Ibanez SR1500-PD ( Rear: Padauk body bolted to a 5-piece bubinga/ wenge SR4 neck and cosmo black Gotoh machine heads ) Red copyright sprite
Other finishes & Details
1992 SR1500-BG
Bubinga
EQ BⅡ System
EQ BⅡ System / Frequency response chart
