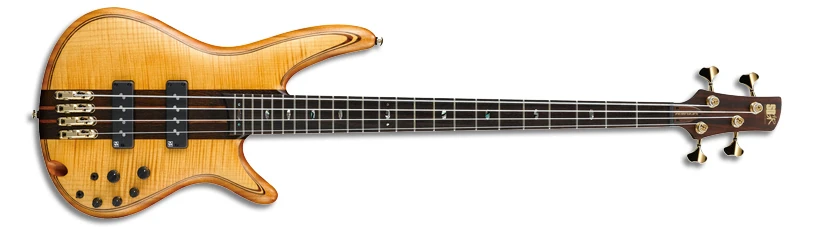

2014 SR1400T VNF 1P 01
SR1400T Vintage Natural Flat Red copyright sprite

The SR1400T is a Soundgear series solid body electric bass model introduced by Ibanez in mid-2014. It was made in Indonesia as part of the mid-tier Premium line. In the US market it was referred to as the SR1400TE.

The SR1400T features neck through body construction with a figured maple top on a mahogany wings attached to a titanium reinforced wenge and bubinga neck with a 24-fret rosewood fingerboard with binding and oval abalone position markers. Components include a pair of Nordstrand Big Single passive pickups with an Ibanez custom preamp with a three-band EQ, a Mono-rail IV bridge with 19mm string spacing, a GraphTech Black TUSQ nut and Gotoh tuning machines.

For 2016 the bridges were changed to the Mono-rail V.

The SR1405T and SR1406TE are similar five and six string models. The SR1400 is a related model with a bolt-on neck.

The SR1400T was discontinued after 2016.

Specifications[]

Related content: Premium series | Soundgear series | Models-icon
Specifications for SR1400T/ SR1400TE
Model name: SR1400T/ SR1400TE
Year(s) offered: 2014–2016
Sold in: Asia & Africa 2016 / Europe 2015–2016 / USA
Made in: Indonesia
Price: MSRP: US$1,799.99 • SMAP: €1,329
Finish(es): Vintage Natural Flat (VNF)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ figured maple top
Neck joint:
Neck-thru
Bridge:
2014–2015: Mono-rail IV
2016: Mono-rail V (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Gold
Neck
Neck type:
Atlas-4
Neck material:
5-piece wenge/ bubinga w/ KTS titanium rods
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium (Premium edge treatment)
Nut:
GraphTech Black TUSQ XL (38mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Nordstrand Big Single passive
Neck pickup:
Nordstrand Big Single passive
Electronics:
EQB-IIISC 3-band EQ, with mid frequency switch and eq bypass switch
Controls:
Master volume / balancer / 3-way EQ on-bypass-off toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes/ details

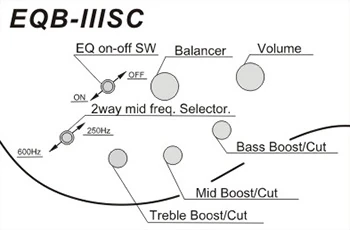

Controls-layout EQBIIISC
Controls layout
Controls-layout EQBIII-SC
Controls layout
Freq-resp EQBIIISC
EQ frequency response
