2023 SR1355B DUF
SR1355B Dual Mocha Burst Flat (more images) Red copyright sprite

The SR1355B is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2023. It is made in Indonesia as part of the mid-tier Premium line.

The SR1355B features a walnut top with a panga panga strip down the center on a double-cutaway African mahogany body bolted to a titanium reinforced panga panga and purpleheart Atlas neck with a 24-fret panga panga fingerboard with binding and abalone oval position markers. Components include a pair of Nordstrand Big Single passive pickups with an Ibanez custom preamp with a three-band EQ, Mono-rail bridges with 16.5mm string spacing, a GraphTech Black TUSQ nut and Gotoh tuning machines.

The SR1350B and SR1356B are similar four and six string models.

Specifications[]

Related content: Premium series | Soundgear series | Models-icon
Specifications for SR1355B
Model name: SR1355B
Year(s) offered: 2023—2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: JP¥ 230,000 (2023[1]–2024[2]) / US$1,999.99 (2024)[3] • SMAP: US$1,499.99 (2024)[3]
Finish(es): Dual Mocha Burst Flat (DUF)
Body
Body type:
Solid body
Body material:
African mahogany w/ walnut& panga panga top
Neck joint:
AANJ
Bridge:
MR-5S (16.5mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Black
Neck
Neck type:
Atlas-5
Neck material:
5-piece panga panga/ purpleheart w/ KTS titanium rods
Scale length:
864mm / 34"
Fingerboard material:
Panga panga w/ binding
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium nickel silver (Premium edge treatment)
Nut:
GraphTech Black TUSQ XL (45mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Nordstrand Big Single bridge passive
Neck pickup:
Nordstrand Big Single neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way mid-frequency toggle / EQ bypass toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130 (D'Addario EXL165 + .130)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

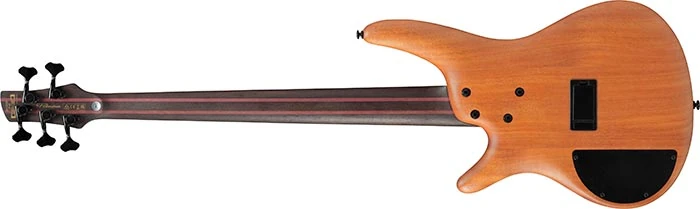

SR1355B DUF rear
2023 Ibanez SR1355B-DUF ( Rear: African mahogany bolted to a 5-piece panga panga/ purpleheart Atlas-5 neck with KTS titanium rods and Gotoh machine heads ) Red copyright sprite
Additional details

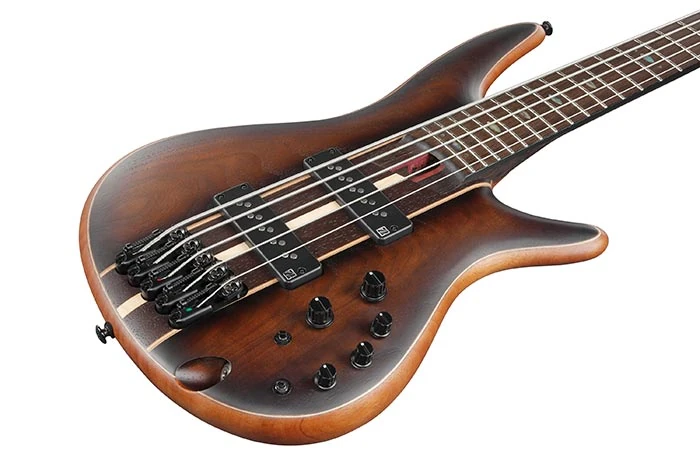

SR1355B DUF front
Front of body
SR1355B DUF back
Rear of body
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency response

Sources[]

  1. SR1355B product page, Ibanez Japan, archived March 2023
  2. SR1355B product page, Ibanez Japan, archived March 2024
  3. 3.0 3.1 SR1355B product listing, American Musical Supply (US retailer), archive March 2024
  • SR1355B product page, Ibanez Asia & Africa, archived January 2023
  • SR1355B product page, Ibanez USA, archived January 2024
