For the later model with the same name, see SR1306.
1993 SR1306-PD
SR1306-PD Oil (more images) Red copyright sprite

The SR1306 is a six-string Soundgear series solid body electric bass model introduced by Ibanez for 1993. It was produced in Japan by FujiGen as part of the Standard line.

The SR1306-PD features a double-cutaway padauk body bolted to a bubinga and wenge neck with a 24-fret wenge fingerboard with pearl dots position markers. Components include a pair of IBZ J6 (active) pickup's on the neck and bridge positions, a Gotoh 6 strings fixed bridge with 10.8mm string spacing, an a Vari-mid 3-band EQ with mid sweep, Gotoh machine heads and cosmo black hardware.

The SR1300 is a similar four string model. The SR1305SR1305 is a similar five-string model.

The SR1306 was only offered in 1993.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1306-PD
Model name: SR1306
Year(s) offered: 1993
Sold in: Europe / USA
Made in: Japan
Finish(es): Oil (OL)
Body
Body type:
Solid body
Body material:
Padauk
Neck joint:
AANJ
Bridge:
Gotoh 6-string (10.8mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Cosmo black (US market)
Black (Europe)
Neck
Neck type:
SR6
Neck material:
5-piece bubinga/ wenge
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Plastic (black) (54mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
JJ
Bridge pickup:
IBZ J6 active (US market)
IBZ HF-6 (Europe)
Neck pickup:
IBZ J6 active (US market)
IBZ HF-6 (Europe)
Electronics:
Vari-mid 3-band EQ w/mid sweep
Controls:
Volume / Balancer / EQ treble / EQ bass
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details

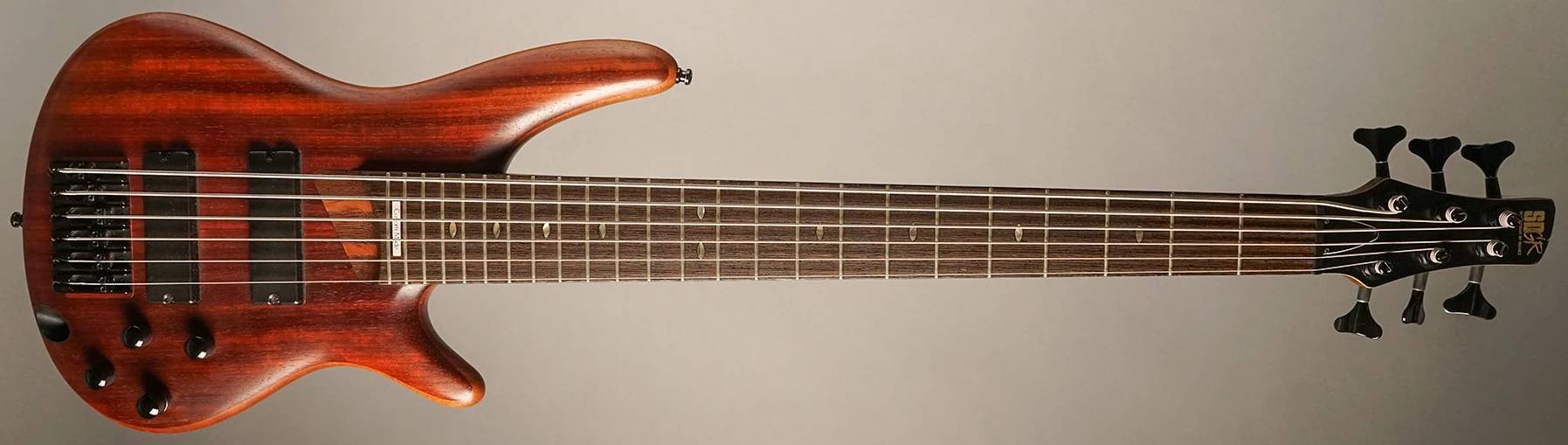

SR1306-PD Front
Front of body

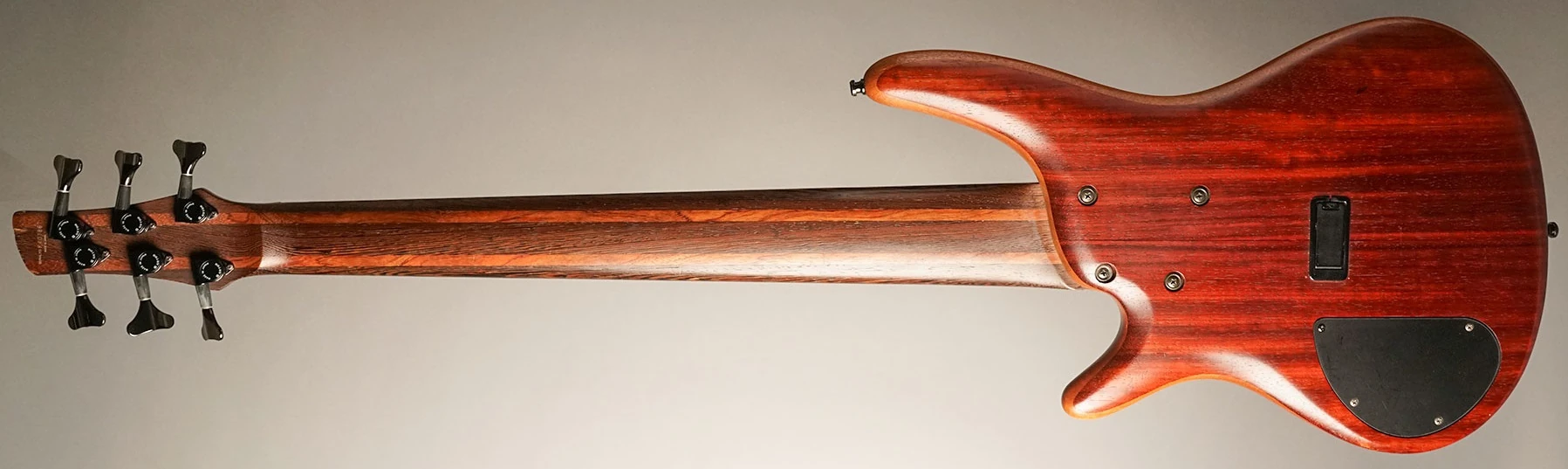

SR1306-PD Back
Rear of body
1994 SR1306-PM

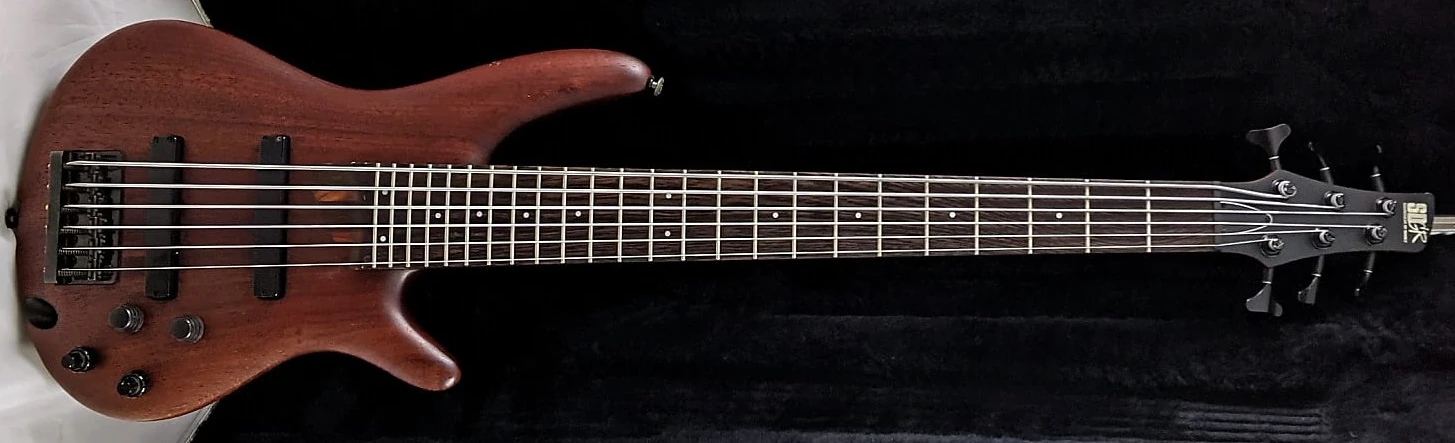

SR1306-PM Oil (more images) Red copyright sprite

The SR1306-PM is a six-string Soundgear series solid body electric bass model introduced by Ibanez for 1993. It was produced in Japan by FujiGen as part of the Standard line.

The SR1306-PD also know as "SR1306PM" features a double-cutaway mahogany body with padauk on top and back bolted to a bubinga and wenge neck with a 24-fret wenge fingerboard with abalone oval position markers and "Custom made" inlay at 24 fret. Components include a pair of IBZ J6 pickup's on the neck and bridge positions, a Gotoh 6 strings fixed bridge with 10.8mm string spacing, an a Vari-mid 3-band EQ with mid sweep, Gotoh machine heads and cosmo black hardware.

The SR1300 is a similar four string model. The SR1305 is a similar five-string model.

The SR1306 was discontinued after 1996.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1306-PM / SR1306PM
Model name: SR1306-PD / SR1306PM
Year(s) offered: 1994-1996
Sold in: Europe / USA
Made in: Japan
Finish(es): Oil (OL)
Body
Body type:
Solid body
Body material:
Mahogany w/ Padauk (top & back)
Neck joint:
AANJ
Bridge:
Die-cast 6-string (10.8mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR6
Neck material:
5-piece bubinga/ wenge
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Abalone oval w/ "Custom made" at 24 fret
Frets:
24 / medium
Nut:
Plastic (black) (54mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
IBZ ADX6B bridge
Neck pickup:
IBZ ADX6N neck
Electronics:
Vari-mid 3-band EQ w/mid sweep
Controls:
Volume / Balancer / EQ treble / EQ bass
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

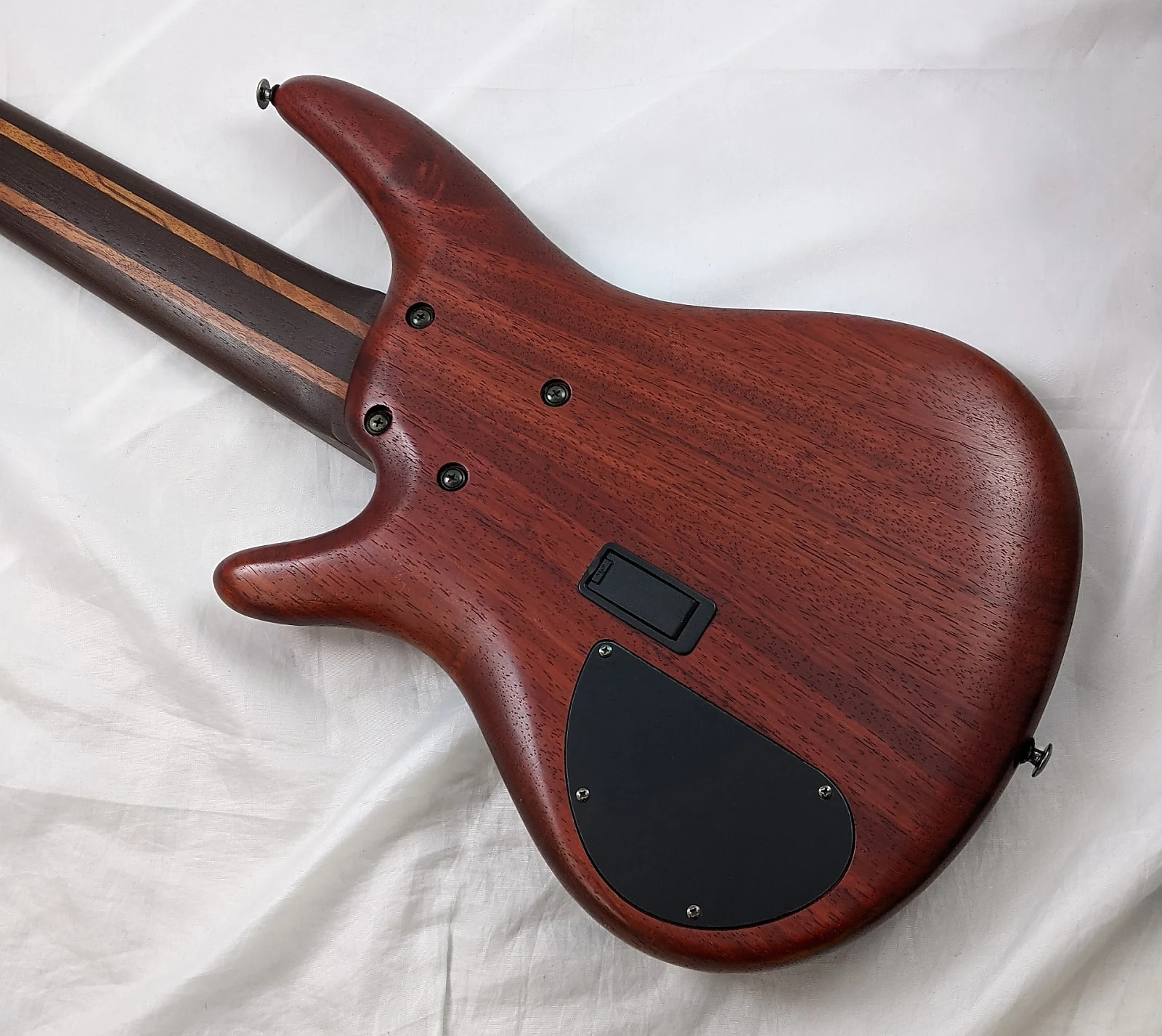

1994 SR1306-PM Back
1994 Ibanez SR1306-PM ( Rear: Mahogany body with Padauk back boted to a 5-piece bubinga/ wenge SR6 neck and Gotoh machine heads ) Red copyright sprite
