For the earlier model with the same name, see SR1306 (1993–1996).
2019 SR1306 NTF 1P 04

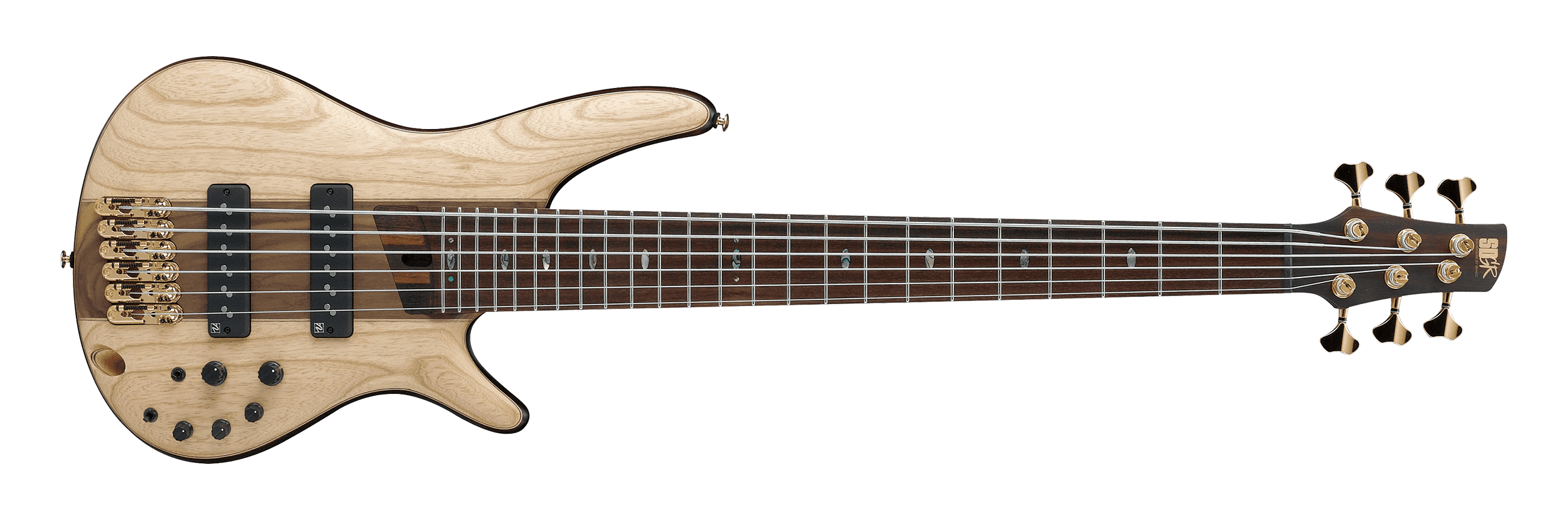

SR1306 Natural Flat Red copyright sprite

The SR1306 is a six string Soundgear series solid body electric bass model introduced by Ibanez in 2016. It was made in Indonesia as part of the mid-tier Premium line. It is also referred to as the SR1306E in some materials for the US market.

The SR1306 features an ash and walnut top on a double-cutaway mahogany body bolted to a titanium reinforced wenge and bubinga Atlas neck with a 24-fret rosewood fingerboard with binding and abalone oval position markers. Components include a pair of Nordstrand Big Single passive pickups with an Ibanez custom preamp with a three-band EQ, a Mono-rail bridge with 16.5 mm string spacing, a GraphTech Black TUSQ nut and Gotoh tuning machines.

For 2018 the rosewood fretboard was replaced with panga panga and the wenge and bubinga neck was replaced with pangapanga and purpleheart. For 2019 the body material was specified as African mahogany.

The SR1300 and SR1305 are similar four and five string models. The SR1406 is a similar model with a figured maple top.

The SR1306 was discontinued after 2019.

Specifications

Specifications for SR1306
Model name: SR1306/ SR1306E
Year(s) produced: 2016–2019
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
2016–2018: Mahogany w/ ash & walnut top
2019: African mahogany w/ ash & walnut top
Neck joint:
AANJ
Bridge:
Mono-rail V fixed (16.5mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Gold
Neck
Neck type:
Atlas-6
Neck material:
2016–2017: 5-piece wenge/ bubinga w/ KTS titanium rods
2018–2019: 5-piece panga panga/ purpleheart w/ KTS titanium rods
Scale length:
864mm / 34"
Fingerboard material:
2016–2017: Rosewood w/ binding
2018–2019: Panga panga w/ binding
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium (Premium edge treatment)
Nut:
GraphTech Black TUSQ XL (54mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Nordstrand Big Single passive
Neck pickup:
Nordstrand Big Single passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / balancer / 3-way EQ on-bypass-off toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B

Images

Additional details
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency charts
