For the later model with the same name, see SR1305 .

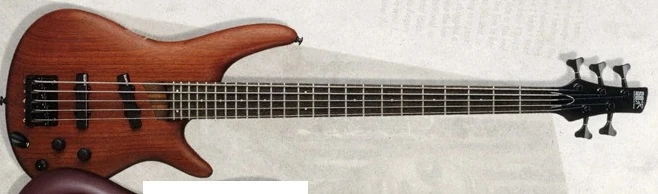

1993 SR1305-PD
SR1305-PD Oil Red copyright sprite

The SR1305-PD is a five string Soundgear series solid body electric bass model introduced by Ibanez for 1993. It was produced in Japan by FujiGen as part of the Standard line.

The SR1305-PD features a double-cutaway padauk body bolted to a SR5 bubinga and wenge neck with a 24-fret wenge fingerboard with pearl dot position markers and a black headstock. Components include a Gotoh 5-strings fixed bridge with 16.5mm string spacing, a pair of Ibanez AFR-J5 active pickups channeled through a Vari-Mid preamp with 3band EQ, a plastic nut, cosmo black hardware and Gotoh tuning machines.

The SR1300 is a similar four string model. The SR1306 is a similar six string model.

The SR1305 was offered only in 1993.

Specifications[]

The SR1305 model has 2 finishes built with different body material, inlays and others :

Related content: Soundgear series | Models-icon
Specifications for SR1305-PD
Model name: SR1305-PD
Year(s) offered: 1993
Sold in: USA / Europe
Made in: Japan
Finish(es): Oil (OL)
Body
Body type:
Solid
Body material:
Padauk
Neck joint:
AANJ
Bridge:
Gotoh 5-string (16.5mm string spacing)
Knob style:
Plastic
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Neck material:
5-piece bubinga/ wenge
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
JJ
Bridge pickup:
Ibanez Active Full Range AFR-J bridge active
Neck pickup:
Ibanez Active Full Range AFR-J neck active
Electronics:
Ibanez Vari-Mid 3-band EQ
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

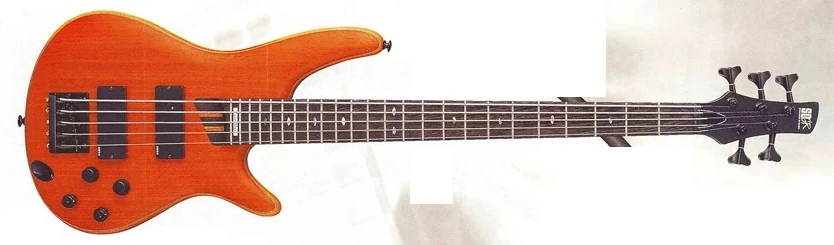

1997 SR1305-PM
SR1305-PM Oil (more images) Red copyright sprite

The SR1305 is a five string Soundgear series solid body electric bass model introduced by Ibanez for 1994. It was produced in Japan by FujiGen as part of the Standard line.

The SR1305-PM also know as "SR1305PM" features a double-cutaway maple body with padauk on top and back bolted to a SR5 bubinga and wenge neck with a 24-fret wenge fingerboard with abalone ovals position markers with "custom made" inlay at 24 fret and a black headstock. Components include a Die-cast 5-strings fixed bridge with 16.5mm string spacing, a pair of Ibanez ADX5 (active dinamix) with Vari-Mid 3band EQ, a plastic nut, black hardware and Gotoh tuning machines.

The SR1300 is a four string version. The SR1306 is a six string version.

The SR1305 was discontinued after 1997.

Related content: Soundgear series | Models-icon
Specifications for SR1305-PM
Model name: SR1305-PM
Year(s) offered: 1994–1997
Sold in: USA 1994–1996 / Europe
Made in: Japan
Finish(es): Oil (OL)
Body
Body type:
Solid
Body material:
Maple/ Padauk (top & back)
Neck joint:
AANJ
Bridge:
Die-cast 5-string (16.5mm string spacing)
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
SR5
Neck material:
5-piece bubinga/ wenge
Scale length:
864mm / 34"
Fingerboard material:
Wenge
Fingerboard inlays:
Abalone oval w/ Custom Made at 24 fret
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Active Dynamix ADX5B bridge active
Neck pickup:
Ibanez Active Dynamix ADX5N neck active
Electronics:
Ibanez Vari-Mid 3-band EQ
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
SR1305-PM front
Front of body
