For the later model with the same name, see SR1206 (2012–2015).

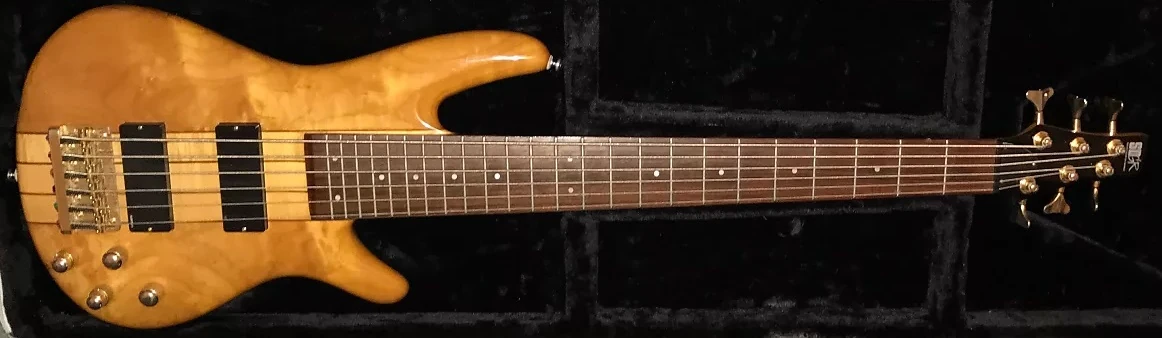

1994 SR1206-NT
SR1206 Natural (more images) Red copyright sprite

The SR1206 is a Soundgear series solid body electric bass model introduced by Ibanez for 1994. It was made in South Korea by Cor-Tek as part of the Standard line.

The SR1206 features neck through body construction with a figured maple top on a maple attached to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and oval abalone position markers. Components include a pair of IBZ ADX6 low impedance pickups with a Vari-Mid three-band EQ, Die-cast 6 string bridge with 16.5mm string spacing, a black plastic nut and Gotoh tuning machines.

The SR1200 and SR1205 are similar four and five string models.

The SR1206 was discontinued in 1996.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1206
Model name: SR1206
Year(s) offered: 1994–1996
Sold in: USA
Made in: South Korea
Price: MSRP: US$ 1,399.95 (1994-1996)
Finish(es): Natural (NT) / Transparent Turquoise (TT) 1994-1995 / Transparent Black (TK) 1996 only
Body
Body type:
Solid body
Body material:
1994-1995: Maple w/ figured maple top
1996: Mahogany w/ figured maple top
Neck joint:
Neck-thru
Bridge:
Die-cast 6 string (16.5mm string spacing)
Knob style:
1994-1995: Knurled metal dome (gold)
1996: Knurled metal dome (black)
Hardware color:
Gold
Neck
Neck type:
SR6
Neck material:
1994-1995: 5-piece maple/ walnut
1996: 5-piece wenge/ maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium
Nut:
Plastic (black) (54mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
IBZ ADX6B low impedance
Neck pickup:
IBZ ADX6N low impedance
Electronics:
Vari-Mid 3-band EQ
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Other finishes

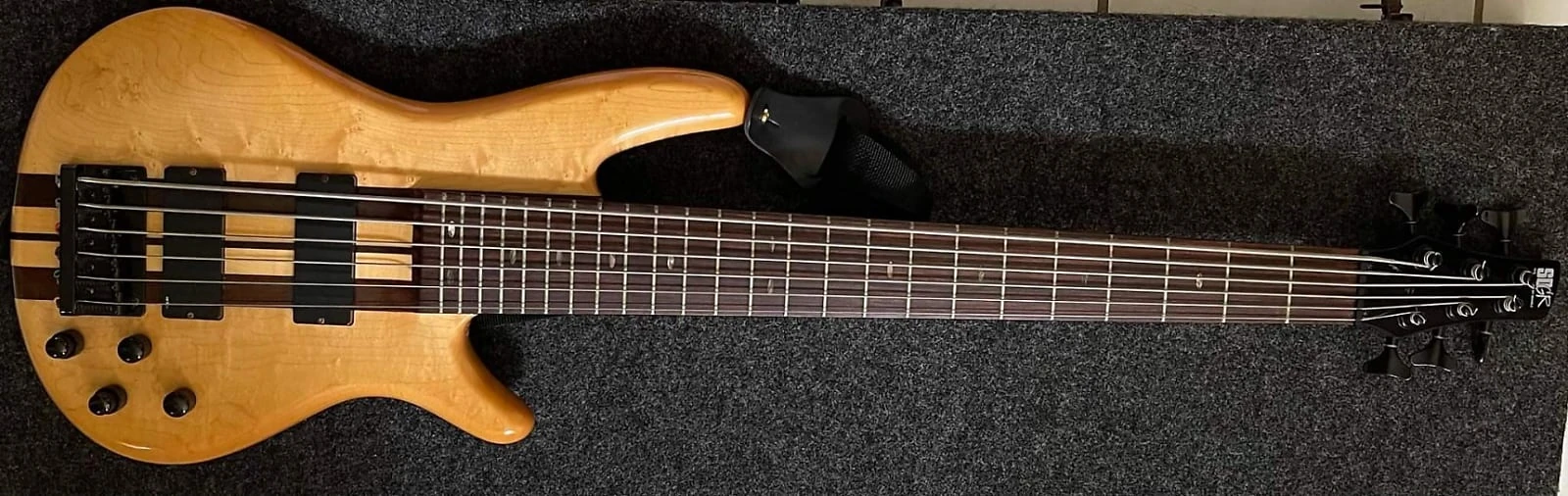

1996 SR1206-NT
Natural (1996 - black hardware)

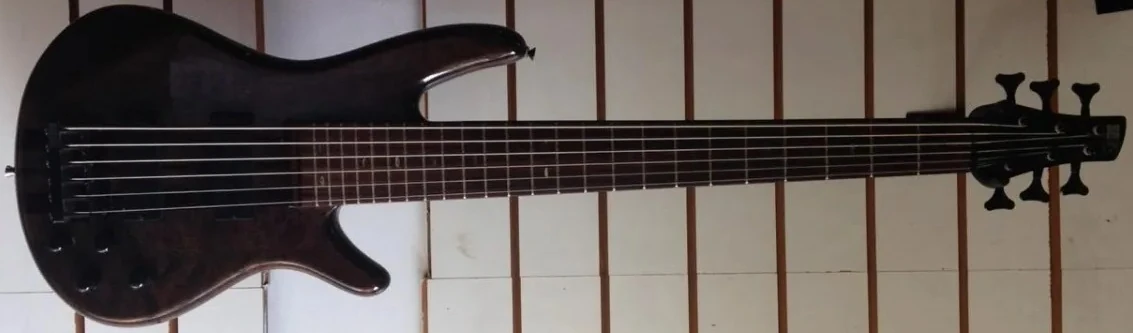

1996 SR1206-TK
Transparent Black

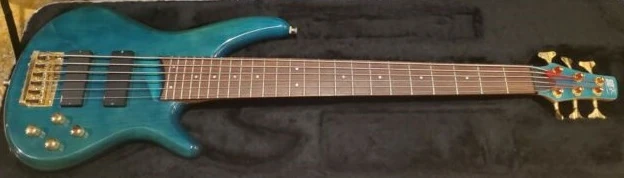

1995 SR1206-TT
Transparent Turquoise
