1994 SR1200-TT

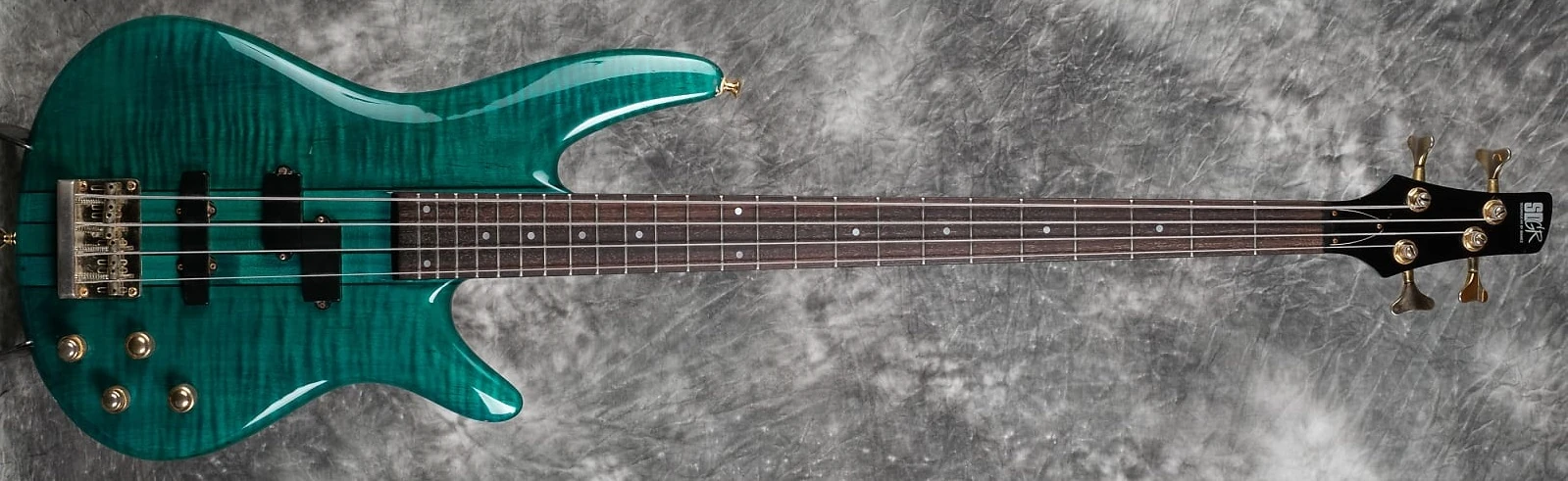

SR1200 Transparent Turquoise (more images) Red copyright sprite

The SR1200 is a Soundgear series solid body electric bass model introduced by Ibanez for 1994. It was produced in South Korea by Cor-Tek as part of the Standard line.

The SR1200 features neck-through-body construction on mapel and figured maple top attached to a maple and walnut neck with a 24-fret rosewood fingerboard with pearl dot position markers. Components include an Die-cast 4 string fixed bridge with 19mm string spacing, and a pair of ADX P/J (active dynamix) pickup's channeled through a Vari-Mid 3-Band EQ, a plastic nut and die-casth tuning machines.

The SR1205 and SR1206 are related five-string and six-string models.

The SR1200 was discontinued after 1997.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1200
Model name: SR1200
Year(s) offered: 1994-1997
Sold in: USA
Made in: South Korea
Price: MSRP: US$ 1,099.95 (January 1994), US$ 1,199.95 (September 1994) / US$ 1,199.95 (1995-1996) / US$ 1,199.99 (1997)
Finish(es): Natural (NT) 1994-1996 / Transparent Turquoise (TT) 1994-1995 / Transparent Black (TK) 1996-1997 / Butterscotch Transparent (BT) 1997
Body
Body type:
Solid body
Body material:
1994-1995: Maple w/ Figured maple top
1996-1997: Mahogany w/ Figured maple top
Neck joint:
Neck-thru
Bridge:
Die-cast 4-string fixed (19mm string spacing)
Knob style:
1994-1995: Knurled metal dome(gold)
1996-1997: Knurled metal dome(black)
Hardware color:
1994-1995: Gold
1996-1997 : Black
Neck
Neck type:
SR4
Neck material:
1994-1995: 5-piece maple/ walnut
1996-1997: 5-piece maple/ wenge
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
1994: Pearl dots
1995-1997: Abalone ovals
Frets:
24 / medium
Nut:
Black plastic (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
ADX-J active dynamix
1996-1997: IBZ AFR-J active full range
Neck pickup:
ADX-P active dynamix
1996-1997: IBZ AFR-P active full range
Electronics:
Vari-Mid 3-Band
Controls:
Master volume, balance, treble boost/cut, bass boost/cut
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)


Images[]

Other finishes

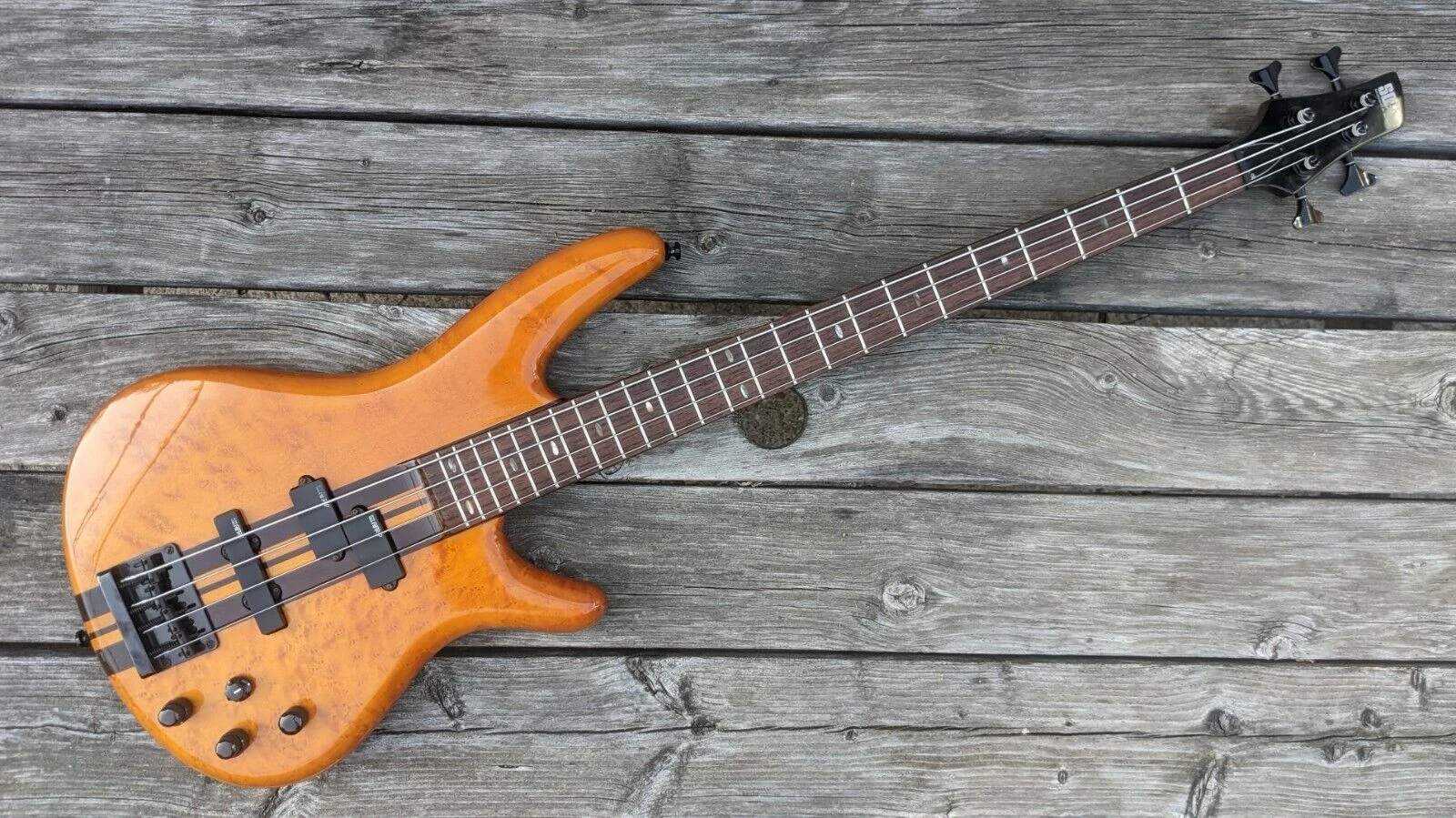

SR1200-BT
Butterscotch Transparent
Additional details

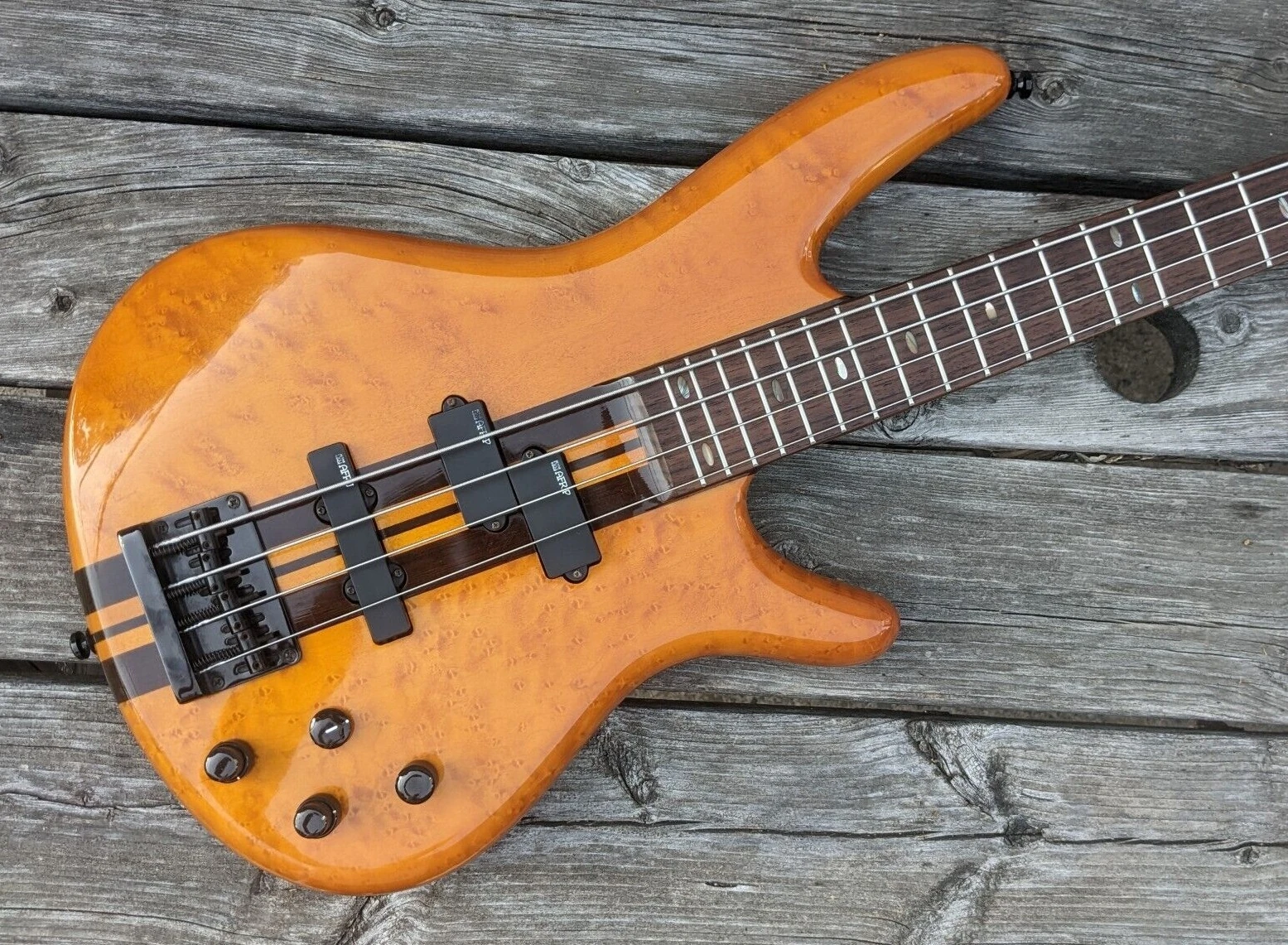

SR1200-BT front
Butterscotch Transparent (front)

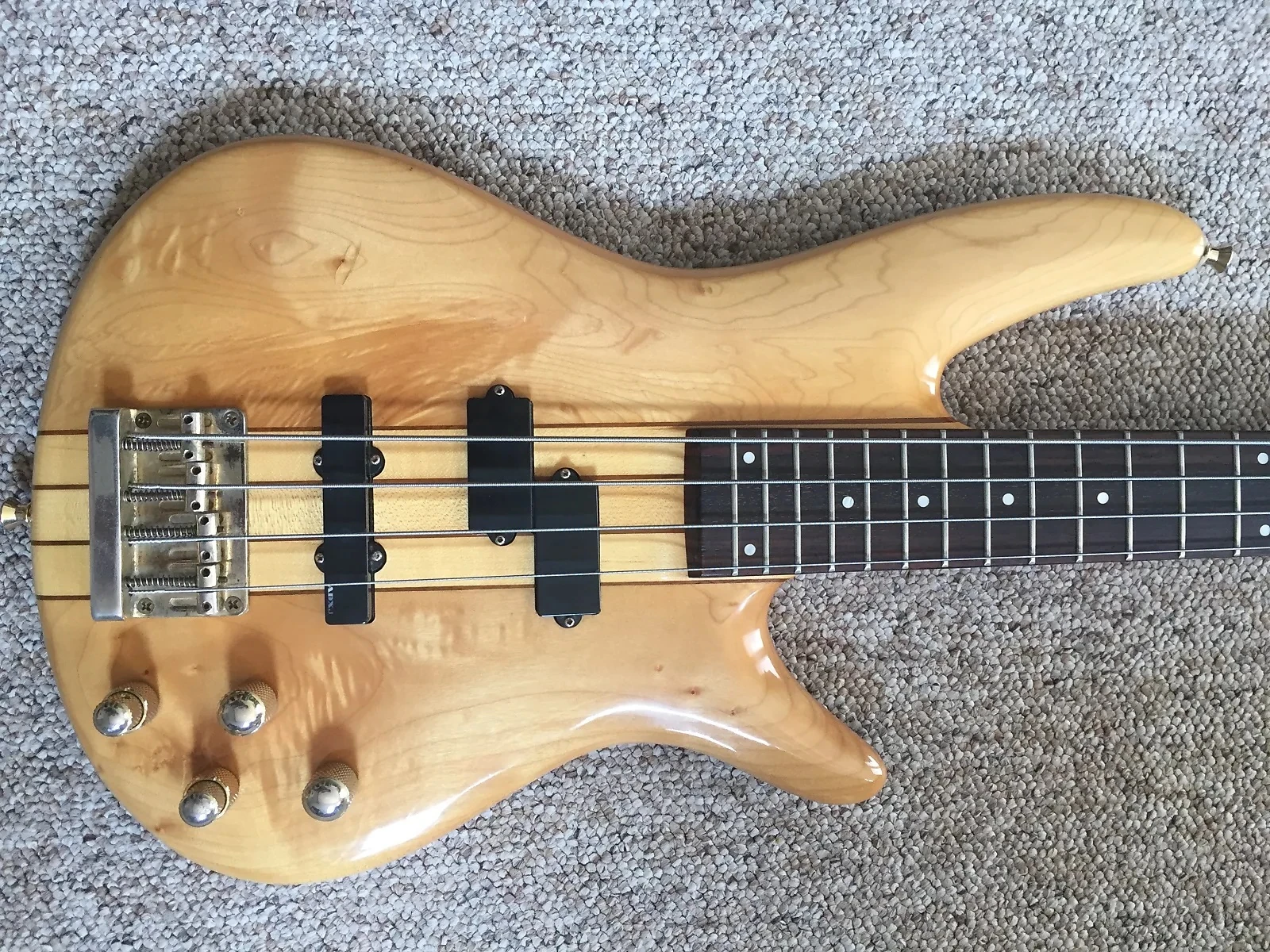

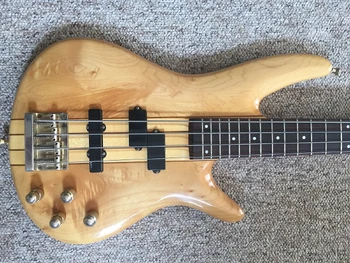

SR1200-NT front
Natural (front)

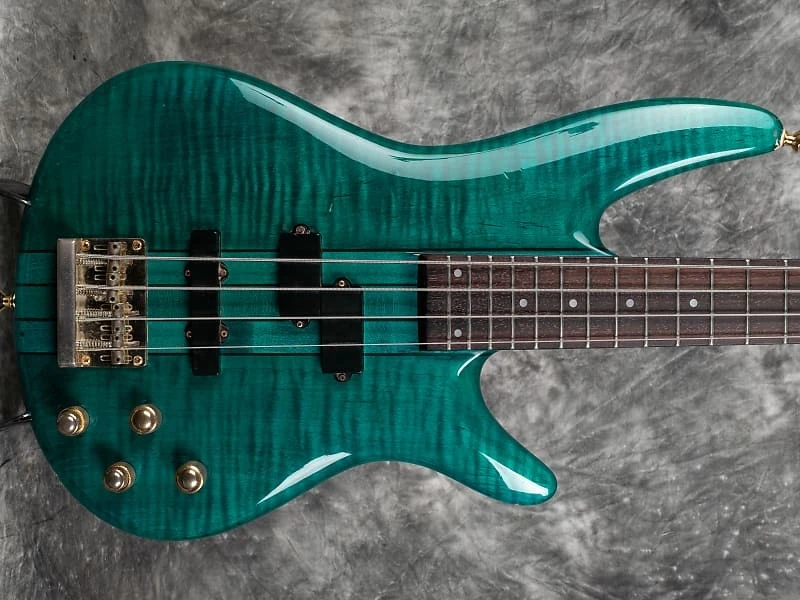

SR1200-TT front
Transparent Turquoise (front)
