2020 SR1100B SFM 1P 01

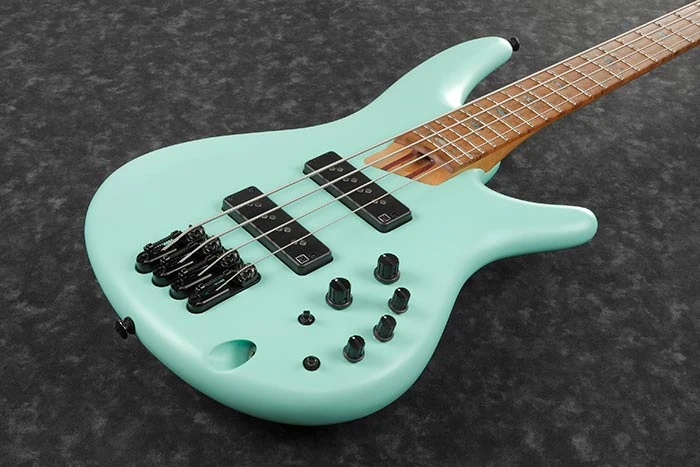

SR1100B Sea Foam Green Matte (more images) Red copyright sprite

The SR1100B is a Soundgear series solid body electric bass model introduced by Ibanez for 2020. It is made in Indonesia as part of the mid-tier Premium line.

The SR1100B features a double-cutaway African mahogany body bolted to a titanium reinforced roasted maple and purpleheart Atlas neck with a 24-fret roasted birdseye maple fingerboard with abalone oval position markers. Components include a pair of Nordstrand Big Single passive pickups with an Ibanez custom preamp with a three-band EQ, a Mono-rail bridge with 19mm string spacing, a GraphTech Black TUSQ nut and Gotoh tuning machines.

The SR1105B is a similar model five string model.

Specifications

Specifications for SR1100B
Year(s) produced: 2020
Sold in: USA
Made in: Indonesia
Finish(es): Pearl White Matte (PWM) / Sea Foam Green Matte (SFM)
Body
Body type:
Solid body
Body material:
African mahogany
Neck joint:
AANJ
Bridge:
Mono-rail V fixed (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Black
Neck
Neck type:
Atlas-4
Neck material:
5-piece roasted maple/ purpleheart w/ KTS titanium rods
Scale length:
864mm / 34"
Fingerboard material:
Roasted birdseye maple
Fingerboard inlays:
Abalone ovals
Frets:
24 / medium (Premium edge treatment)
Nut:
GraphTech Black TUSQ XL (38mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Nordstrand Big Single bridge passive
Neck pickup:
Nordstrand Big Single neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / balancer / 3-way EQ on-bypass-off toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E

Images

Additional finishes/ details

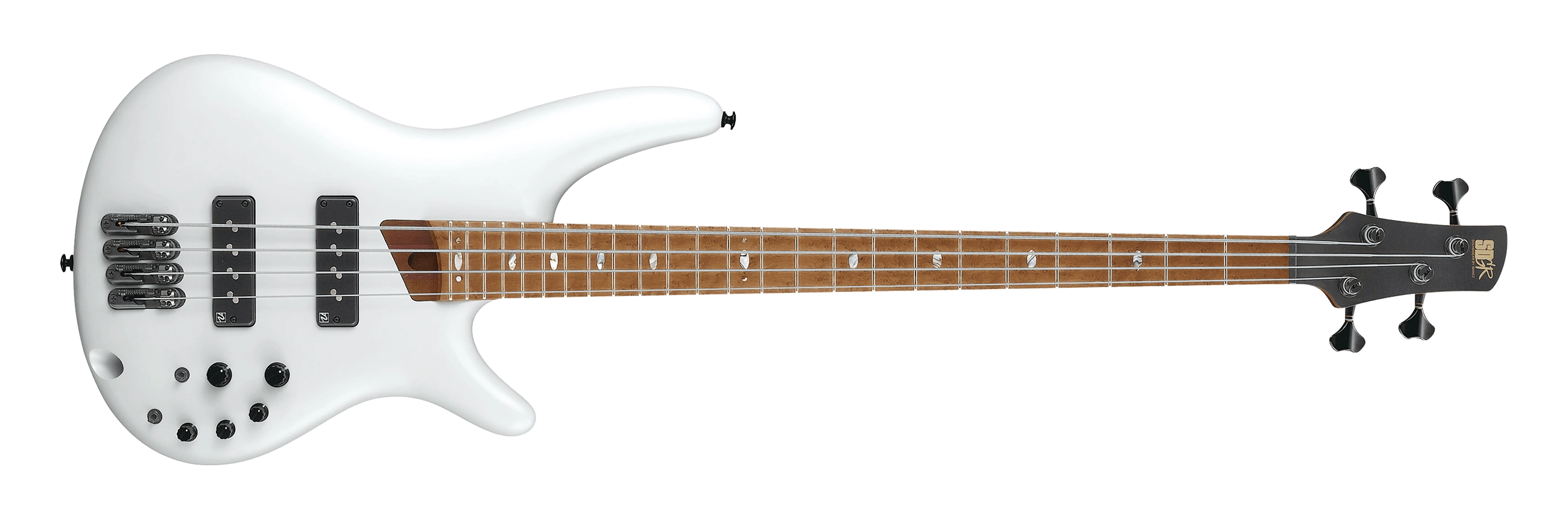

2020 SR1100B PWM 1P 01
Pearl White Matte
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency charts
