1997 SR1010-SOL

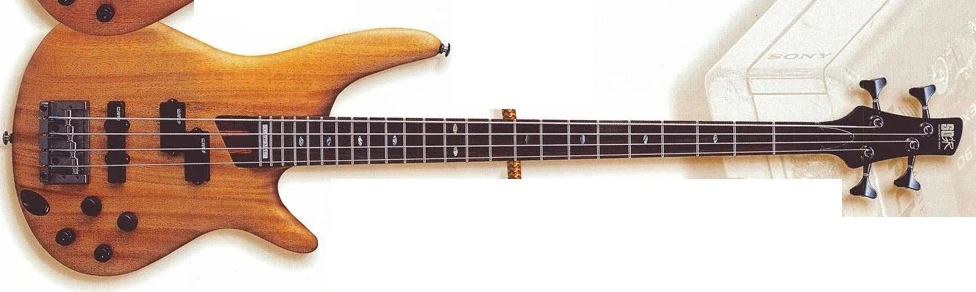

SR1010 Stained Oil 1997 (more images) Red copyright sprite

The SR1010 is a Soundgear series solid body electric bass model introduced by Ibanez for 1997. It was produced in Japan by FujiGen as part of the Standard line.

The SR1010 features a double-cutaway mahogany body top bolted to a wenge and maple neck with a 24-fret rosewood fingerboard with abalone oval position markers a "Custom Made" Inlay at 24 fret, white side dots and a black headstock. Components include an Accu-Cast B IV fixed bridge with 19mm string spacing, and a pair of IBZ AFR-P/J (active full range) pickups chanelled to a Vari-mid 3 band EQ, a plastic nut, cosmo black hardware and gotoh tuning machines.

The SR1015 is a related five string model. The SR1016 is related six string model.

The SR1010 was discontinued after 1999.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1010
Model name: SR1010
Year(s) offered: 1997-1999
Sold in: USA 1997-1998/ Asia, South America & North America 1998 / Europe 1998-1999 / Japan 1999
Made in: Japan
Price: MSRP: US$ 1,099.99 (1997-1998) / JP¥ 95,000 (1999)
Finish(es): Stained Oil (SOL) / Black Oil (BOL) 1999 Japan only
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
1997: Accu-Cast B IV (fixed)
1998-1999: Accu-cast B20 (19mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Cosmo black
Neck
Neck type:
1997-1998: SR4
1999: SR4DX
Neck material:
1997: 5-piece wenge/ maple
1998-1999:5-piece wenge/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone ovals w/ "Custom Made" at 24 fret and side dots
Frets:
24 / medium
Nut:
Black plastic (38mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
1997: PJ
1998-1999: HH
Bridge pickup:
1997: IBZ AFR-J
1998-1999: SFR-SB
Neck pickup:
1997: IBZ AFR-P
1998-1999: SFR-SN
Electronics:
1997, 1999: Vari-Mid 3 band
1998: Vari-mid Hi-fi (US market)
1998: VM-3LC Vari-Mid EQ
Controls:
Master volume / balancer / treble / mid / bass
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Other available finishes

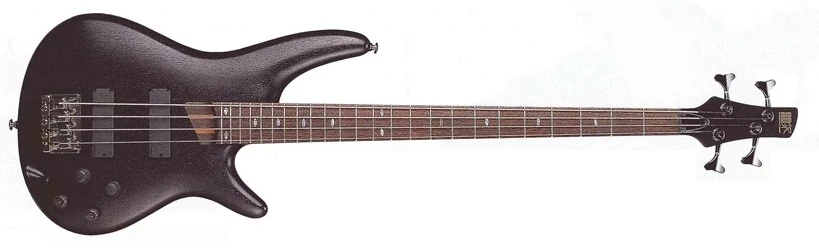

1999 SR1010-BOL
Black Oil (Japan only)

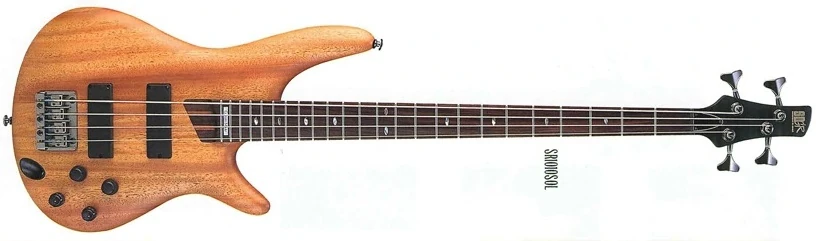

1998 SR1010-SOL
Stained Oil (1998-1999)
