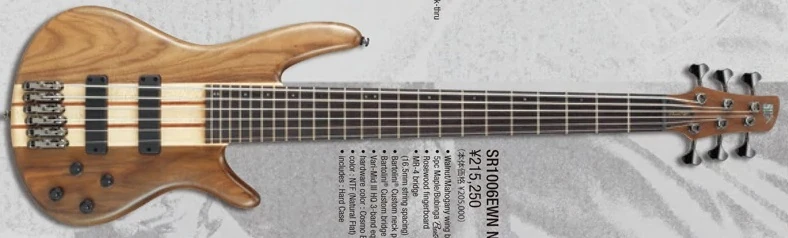

2007 SR1006EWN-NTF
SR1006EWN Natural Flat (more images) Red copyright sprite

The SR1006EWN is a six-string Soundgear series solid body electric bass model introduced by Ibanez for 2005. It was produced in Japan by FujiGen as part of the upscale Prestige line.

The SR1006EWN features neck-through-body construction on walnut and mahogany wings body attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with off-set dots position markers and a matching headstock. Components include a pair of Bartolini® Custom (passive) pickup's on the neck and bridge positions, a MR-4 fixed bridge with 10.8mm string spacing, a Vari-Mid III HQ 3-band EQ, a Graphtech Black TUSQ XL nut, Gotoh machine heads and cosmo black hardware.

The SR1000EWN and SR1005EWN are similars four and five string models.

The SR1006EWN was discontinued after 2007.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1006EWN
Model name: SR1006EWN
Year(s) offered: 2005-2007
Sold in: Japan
Made in: Japan
Price: MSRP: JP¥ 185,000 (2005) / JP¥ 195,000 (2006) / JP¥ 205,000 (2007)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Walnut and Mahogany wings
Neck joint:
Neck-thru
Bridge:
MR-4 fixed (10.8mm string spacing)
Knob style:
Knurled metal dome (cosmo black)
Hardware color:
Cosmo black
Neck
Neck type:
SR6 Prestige
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Off-set dot
Frets:
24 / medium
Nut:
Graphtech Black TUSQ XL (54mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini® Custom bridge passive
Neck pickup:
Bartolini® Custom neck passive
Electronics:
Vari-Mid III HQ 3-band EQ
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details
Contol layout Vari-Mid III HQ
Controls layout

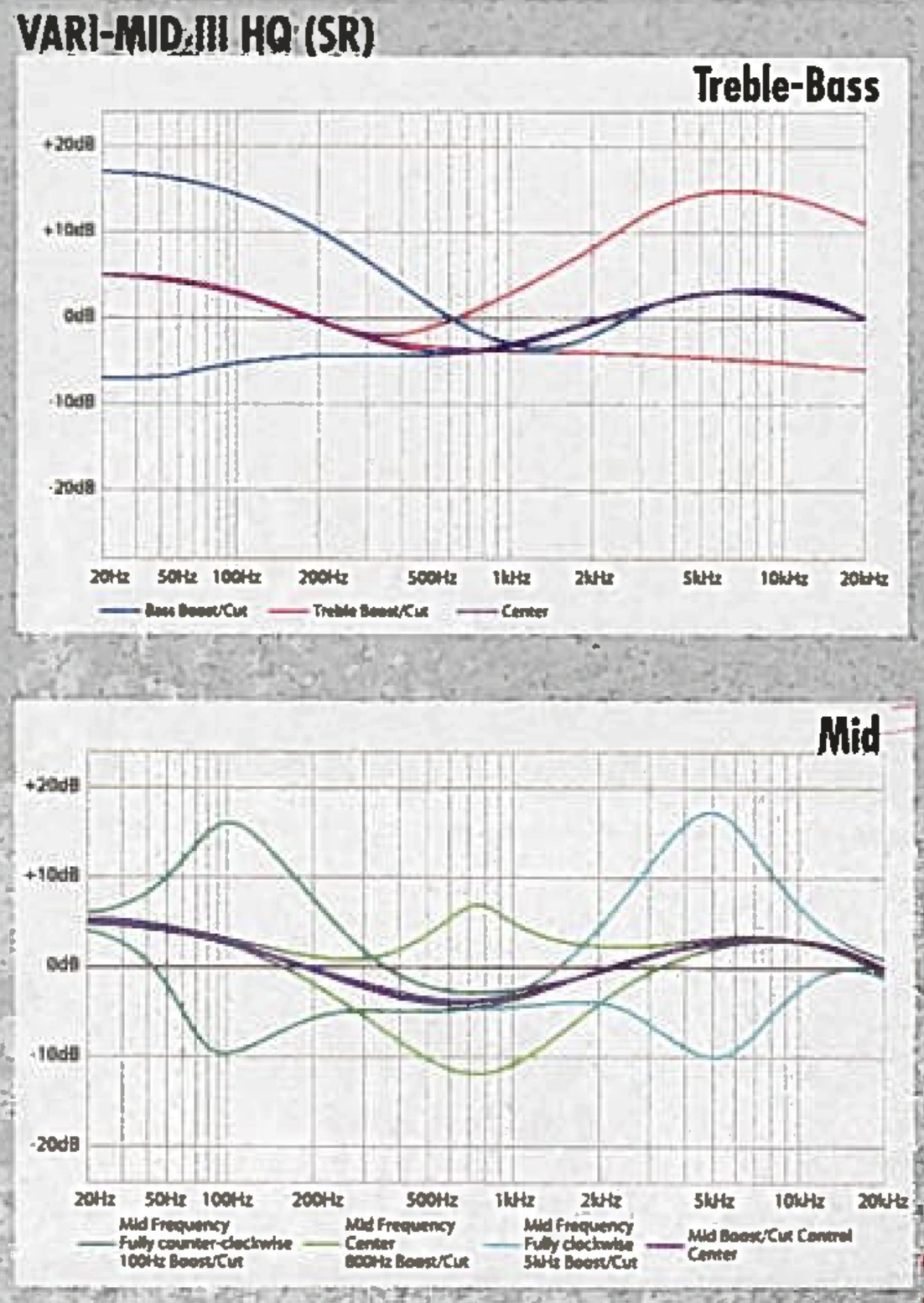

Vari-Mid III HQ freq resp chart
Frequency response chart
