SR1005EWN-NTF

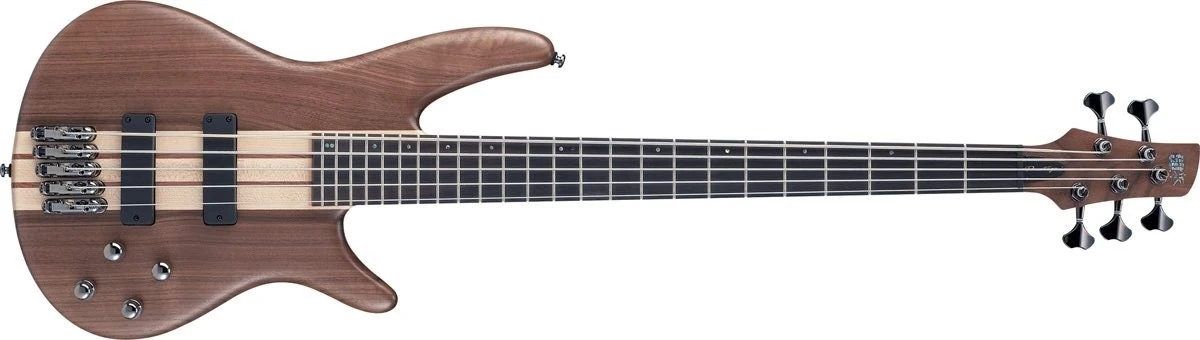

SR1005EWN Natural Flat (more images) Red copyright sprite

The SR1005EWN is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2005. It was made in South Korea by Cor-Tek as part of the upscale Prestige line.

The SR1005EWN features neck-through-body construction on walnut and mahogany wings body attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with off-set dots position markers and a matching headstock. Components include a pair of Bartolini® Custom (passive) pickup's on the neck and bridge positions, a MR-4 fixed bridge with 10.8mm string spacing, a Vari-Mid III HQ 3-band EQ, a Graphtech Black TUSQ XL nut, Gotoh machine heads and cosmo black hardware.

The SR1000EWN and SR1006EWN are similar four and six string models.

The SR1005EWN was discontinued after 2007.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1005EWN
Model name: SR1005EWN
Year(s) offered: 2005-2007
Sold in: Asia & South America 2006-2007 / Europe / Japan / North America 2006-2007 / USA
Made in: South Korea
Price: MSRP: JP¥ 175,000 (2005) / JP¥ 185,000 (2006) / JP¥ 195,000 (2007)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Walnut and Mahogany wings
Neck joint:
Neck-thru
Bridge:
Mono-rail IV fixed (16.5mm string spacing)
Knob style:
Knurled metal dome (cosmo black)
Plastic black
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Off-set dot
Frets:
24 / medium
Nut:
GraphTech Black TUSQ XL (45mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini® Custom (bridge) passive
Neck pickup:
Bartolini® Custom (neck) passive
Electronics:
2005-2007: Vari-Mid III HQ 3-band EQ
2005: Vari-Mid Hi Fi 3-Band EQ (USA only)
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details

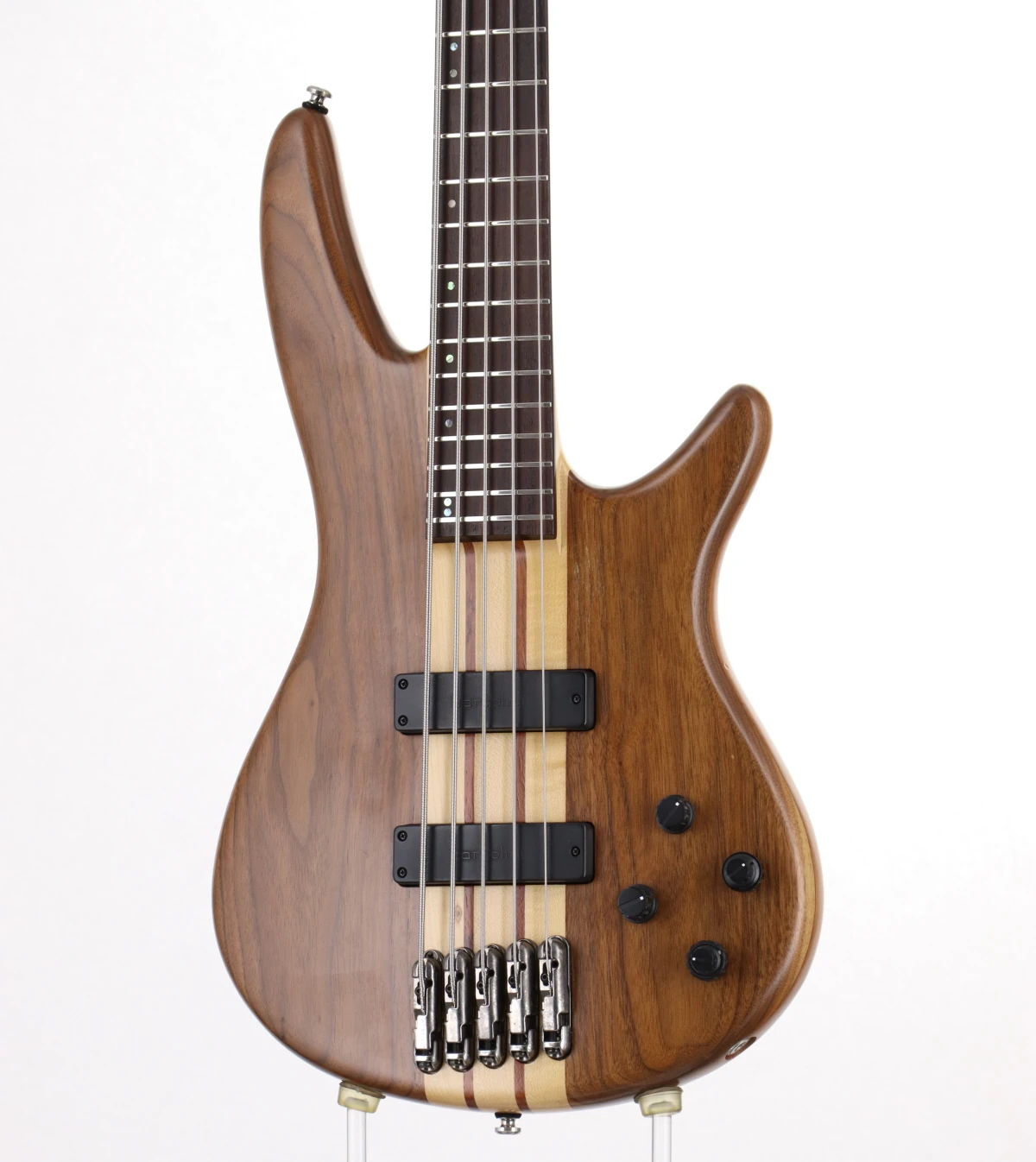

SR1005EWN front
Front of body

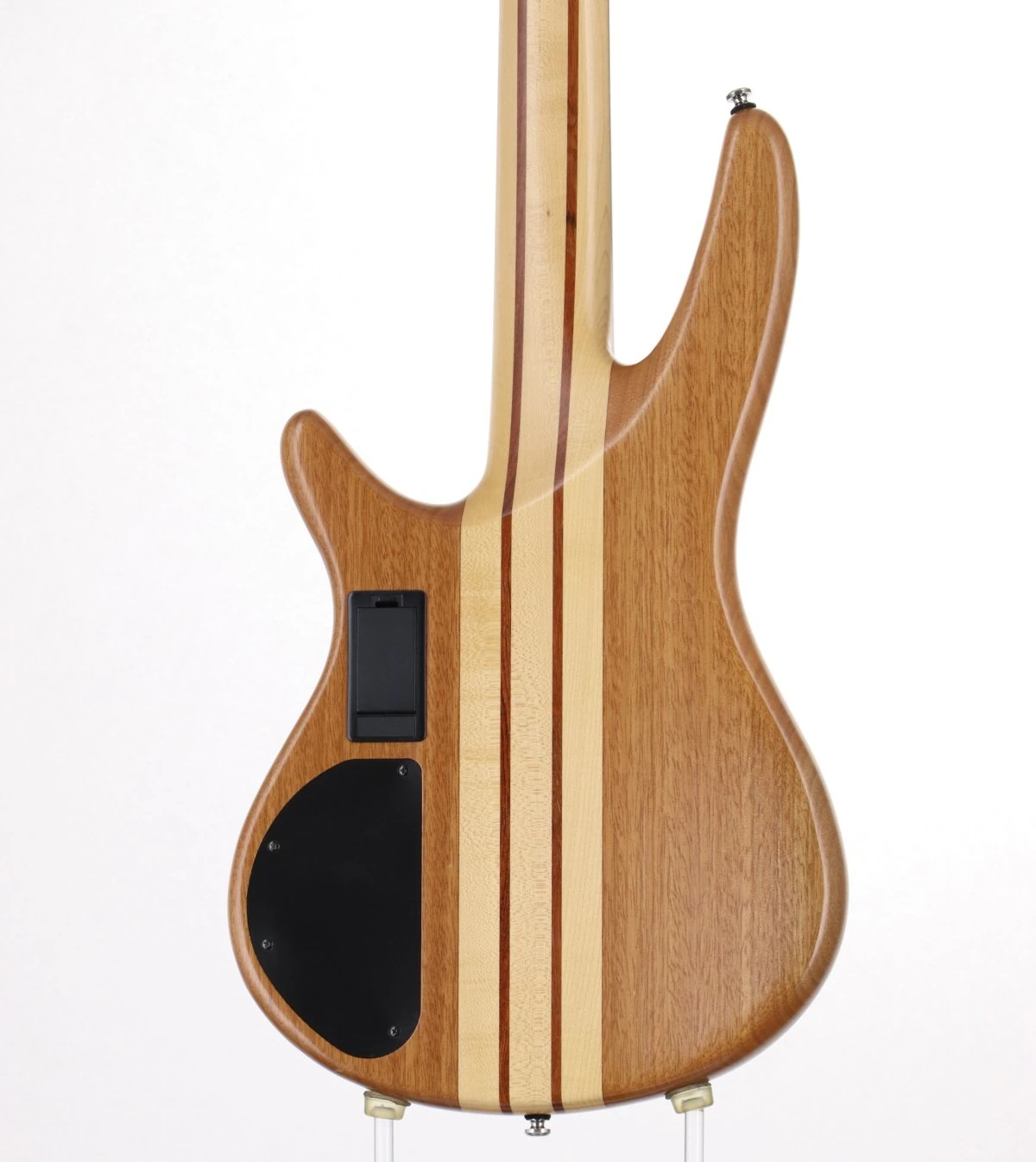

SR1005EWN rear
Rear of body
Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response chart
